Receptacles and Extension Cords
Only use high quality, well-insulated, grounded extension cords in good condition with generator receptacles. Follow
each device manufacturer’s power rating recommendation when selecting receptacle and extension cord.
This generator is equipped with the following receptacles:
Battery Charger for Electric Starter
Keep the generator battery fully charged and ready to use to avoid the need to use the recoil starter to start the generator
manually.
How to Stop Engine (See fig 14
-17))
• All electrical loads MUST be disconnected from the generator. Never start or stop the engine with electrical devices
plugged in to the receptacles. (See fig 14)
When using gasoline
1.Turn the battery switch to the “STOP” position. (See fig 17)
2.Turn the fuel valve lever back to the OFF position.(See fig 15)
When using LPG
1.Turn the battery switch to the “STOP” position. (See fig 17)
2.Trun off LPG bottle. (See fig 16)

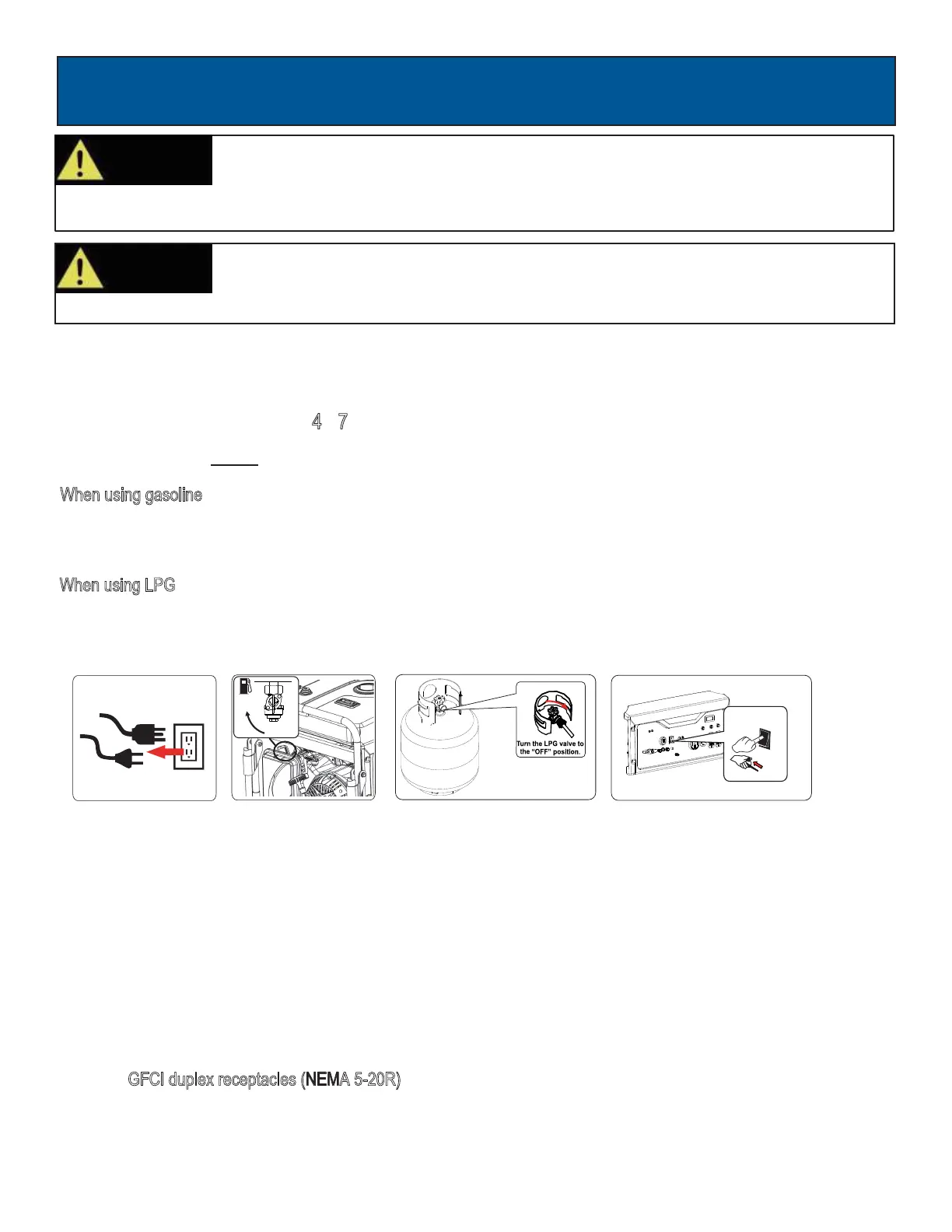

Fig 14 Fig 15 Fig 16
Fig 17
• Four 120 Volt GFCI duplex receptacles (NEMA 5-20R).
• 120 / 240 Volt AC, 50 Amp receptacle (NEMA L14-50R).
• 120 / 240 Volt AC, 30 Amp twist lock receptacle (NEMA L14-30).
• 12 Volt DC 8.3 Amp Output.
120 Volt G
FCI duplex receptacles (NEMA 5-20R)
• This receptacle has a 20 Amp push-to reset circuit breaker to protect against overload.
• Each socket is rated to operate 120 Volt, AC, single phase, 60Hz loads requiring up to 2400 watts (2.4 kW) at 20 Amps.
• Use extension cords having a minimum rating of 125 Volts AC, 20 Amps.
Pull cord recoils rapidly and can pull arm towards engine faster than you can let go could result in
injury.
•
Pull starter cord slowly until resistance is felt, then pull rapidly.
WARNING!
Never start or stop engine with electrical devices plugged in to the receptacles. Failure to
heed this warning could damage the generator and / or connected electrical devices.
•
Always start the engine and let it stabilize before connecting any electrical devices.
•
Disconnect all electrical devices before stopping the engine.
WARNING!
OFF
ON
STOP
BATTERY.SW.
RUN
