Page 4

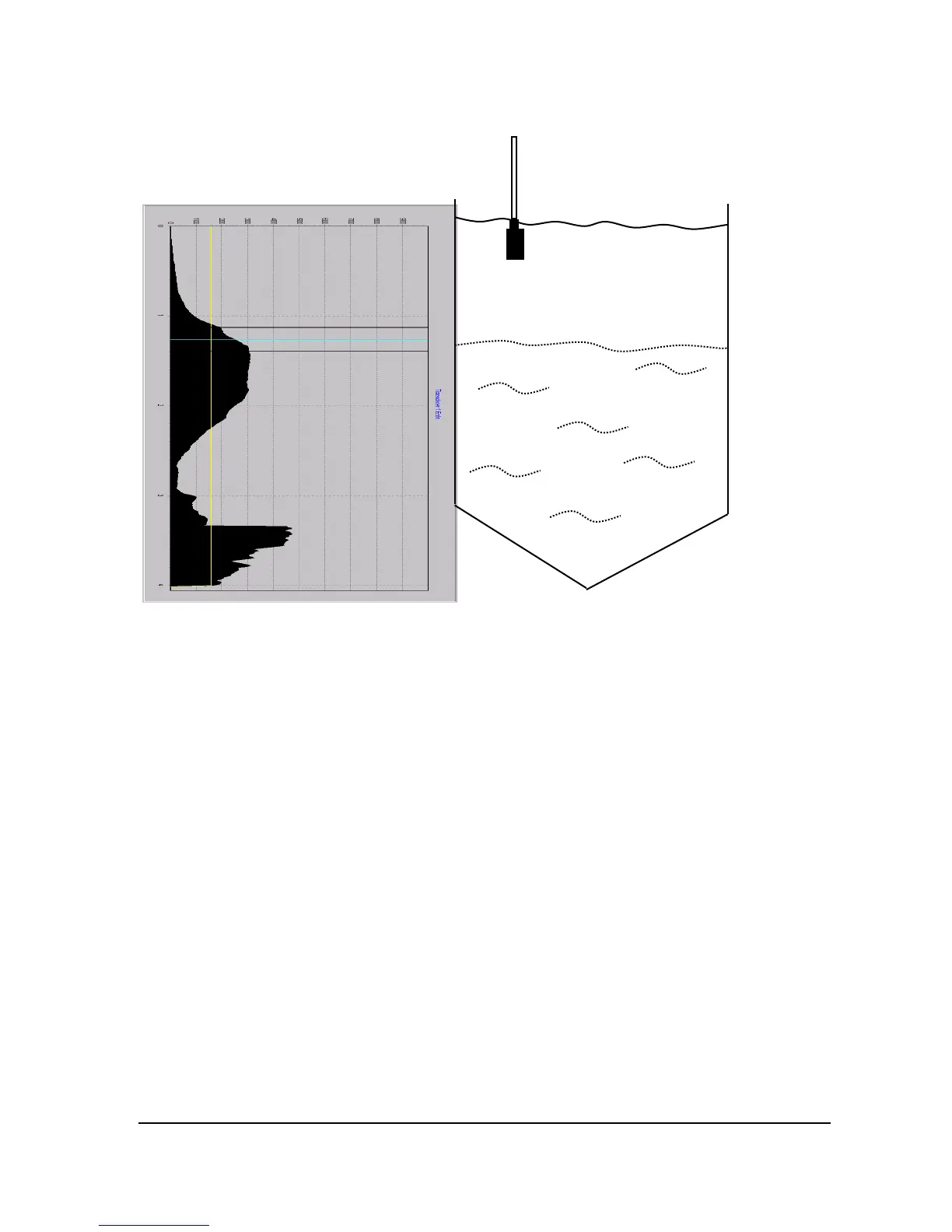

How to interpret the echo profile screen.
The first echo that is reflected back to the transducer is from the top of the sludge
blanket, the second echo with the sharper leading edge is the echo reflected back
from the bottom of the tank.
