7. Panel Description
Transmitting unit PT-E-HD10 TX

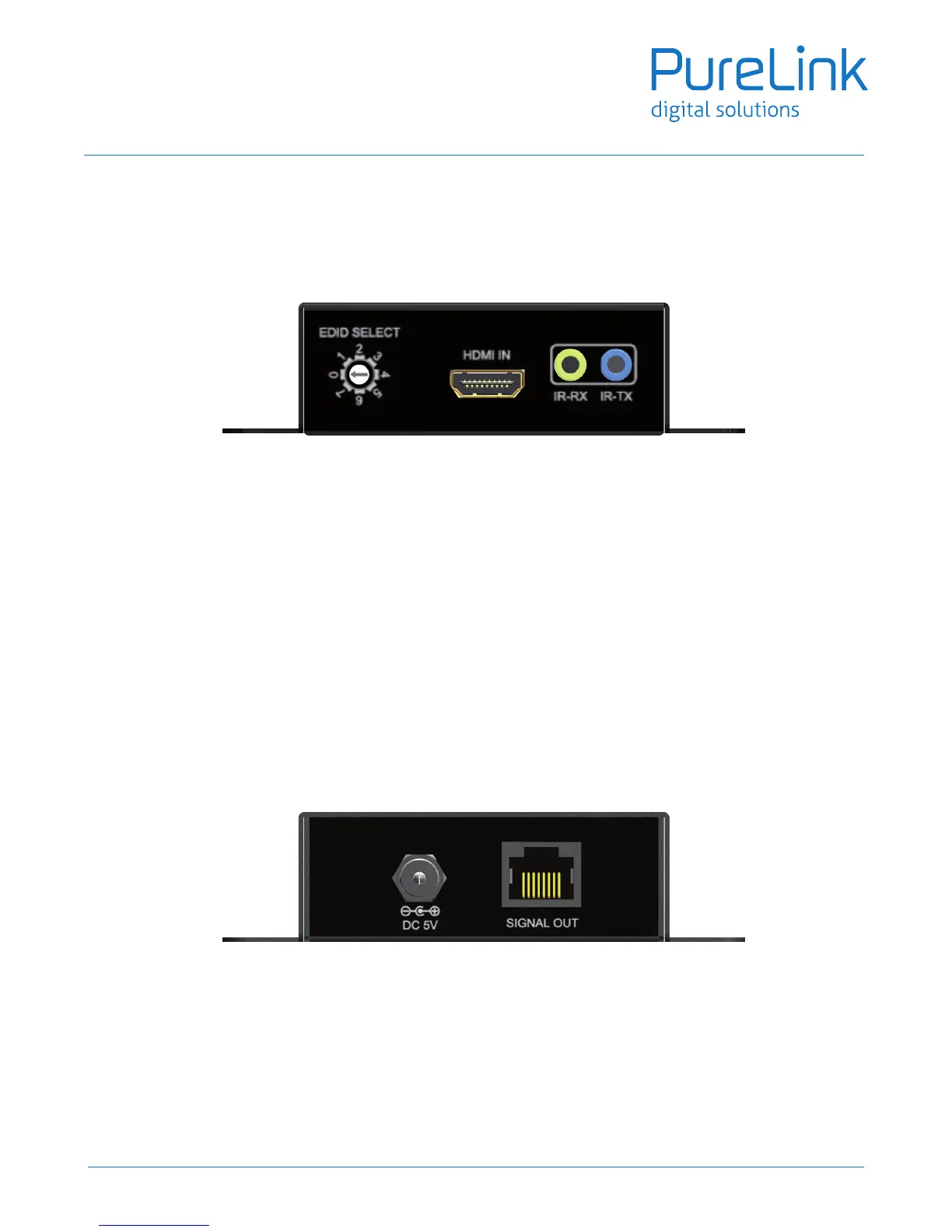

Front Panel
Rear Panel
1. MODE:
0 - EDID Full-HD(1080p@60) - 24bit 2D video & 7.1ch audio
1 - EDID Full-HD(1080p@60) - 24bit 2D video & 2ch audio
2 - EDID Full-HD(1080p@60) - 36bit 2D video & 7.1ch audio
3 - EDID Full-HD(1080p@60) - 36bit 2D video & 2ch audio
4 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 7.1ch audio
5 - EDID HD(1080p@30)(1080i@60)(720p@60) - 24bit 2D video & 2ch audio
6 - EDID Full-HD(1080p@60) - 36bit 3D video & 2ch audio
7 - EDID learning mode
2. HDMI IN: Connects to a HDMI source with a HDMI male-male cable
3. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
5. +5V DC: Connect to 5V DC power supply unit.
6. HDMI SIGNAL OUT: Plug in a Cat.X cable and link to the RJ-45 port of the PT-E-HD10, receiving unit [RX]
