PT-E-HD50

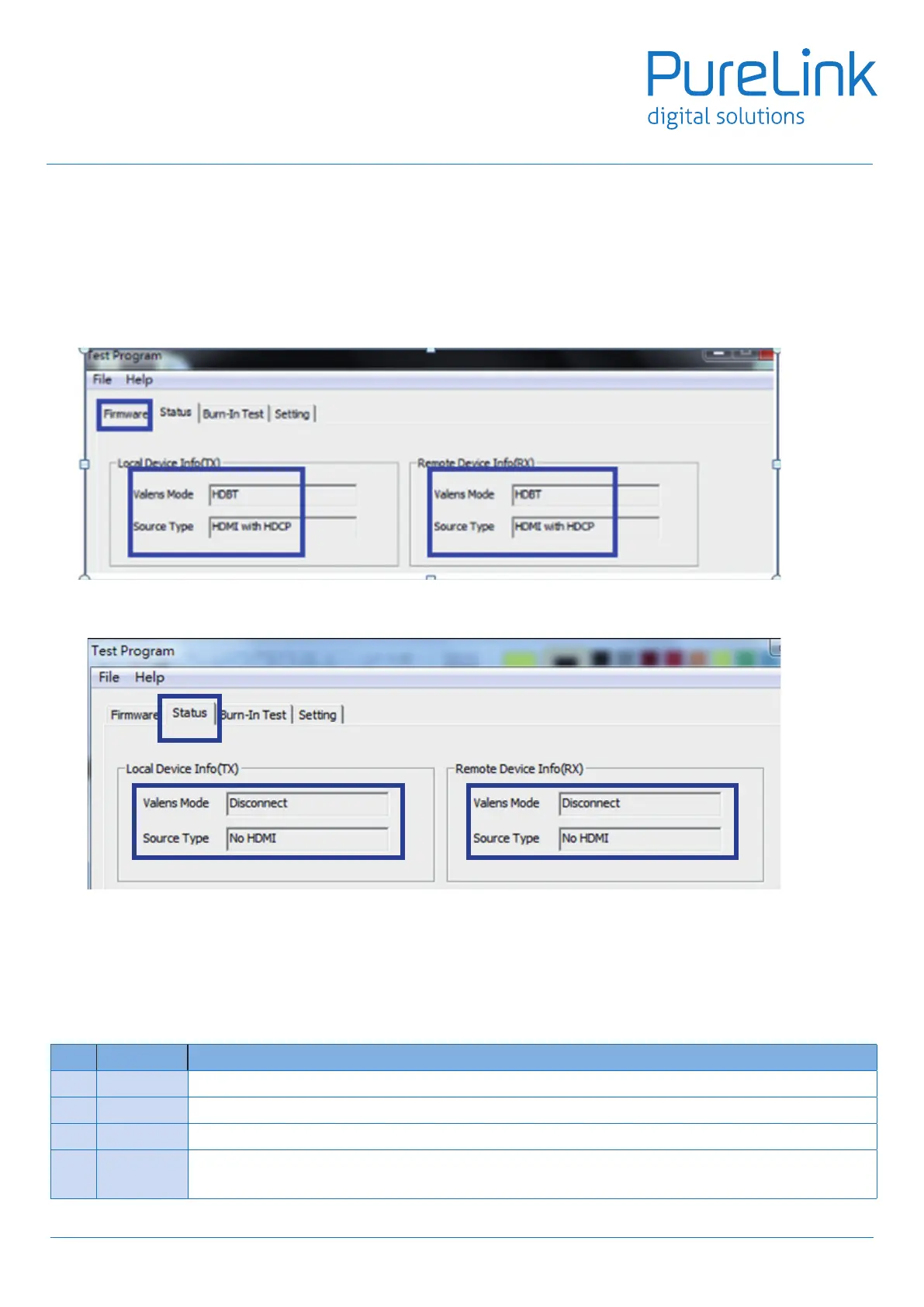

4. Check the status of connecting
Inupperpart,itwillrevealtheValensModeandSourcetype.
IfConnectedsuccessfully,youwillseetheshownasbelow:
• Normal
• If fail to connect, you will get the status as below :
4.1 Indication radio the light to recognize the connection condition
• To review the Status of connecting, HDBaseT Manager analyze in 4 directoins
Item What is this for?
1 HPD Hot Plug Detect when you plug in or unplug, re-initializing the HDMI link if necessary
2 Cable len To measure the cable length
3 Video BER The Bit Error divided of transferred bits during a studied time interval (video bit error rate)
4 MAXERR
MAXERR is used to denotes the largest error between the samples of the original signal and the reconstruc-
ted signal
