DIRECT NOSEBOX INSTALLATION GUIDE

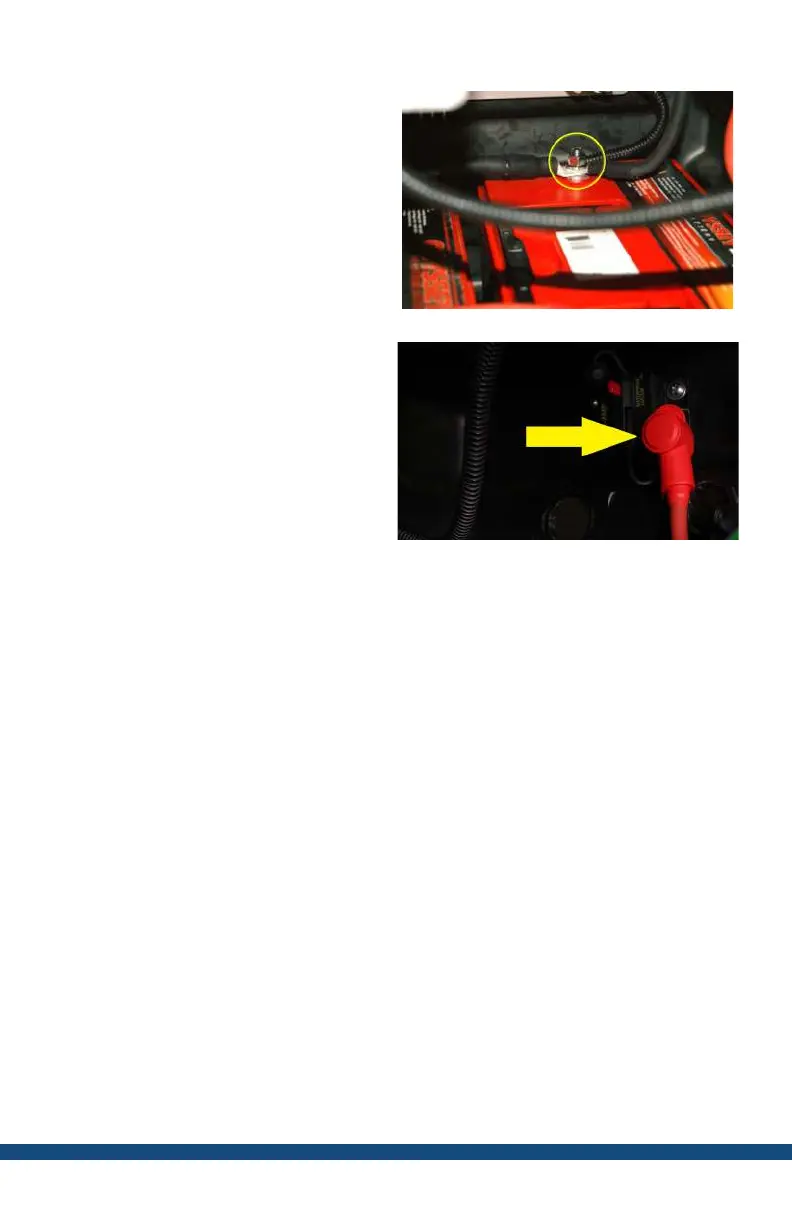

Step 9: Route the 4-gauge red and
black cables back into the ligate
battery box. Connect the 4-gauge
black cable to the ligate battery
negative post.
Step 10: Slide the supplied red
rubber boot over the 4-gauge red
cable and connect this cable to
the le side of the 150 amp circuit
breaker.
Severe Service Installation Complete.
