PVR EU 45 - Transport;Handling; Lifting; Unpacking and Components Control; Storage

Operating and maintenance instructions
EN
8
LI 718.06
4. Transport/handling
4.1 Lifting
The orientation of the packed components must correspond to the instructions given
by the pictograms on the external covering of the packaging.
For unloading use a lifting equipment suitable for the pump weight.
For lifting the packaging and the pump, please refer to the figures here below.
Pump packaged (Figure 0)
Pump with motor (Figure 1).
Pump without motor (Figure 1).
4.2 Unpacking and components control
When receiving the machine, check that the packing is intact or if is shows signs of
damages occurred during transportation.
If there is no damage, proceed to the unpacking and check further the machine.
In case damages are found, inform immediately P.V.R. and the carrier. A representative
will contact you or it may be dispatched to the site to inspect and file full damage report.
4.3 Storage
The pumps must be stored or transported without oil and protected from the atmospheric
agents at a temperature between -15°C and 70°C (normal humidity rate max. 95% non
condensing).

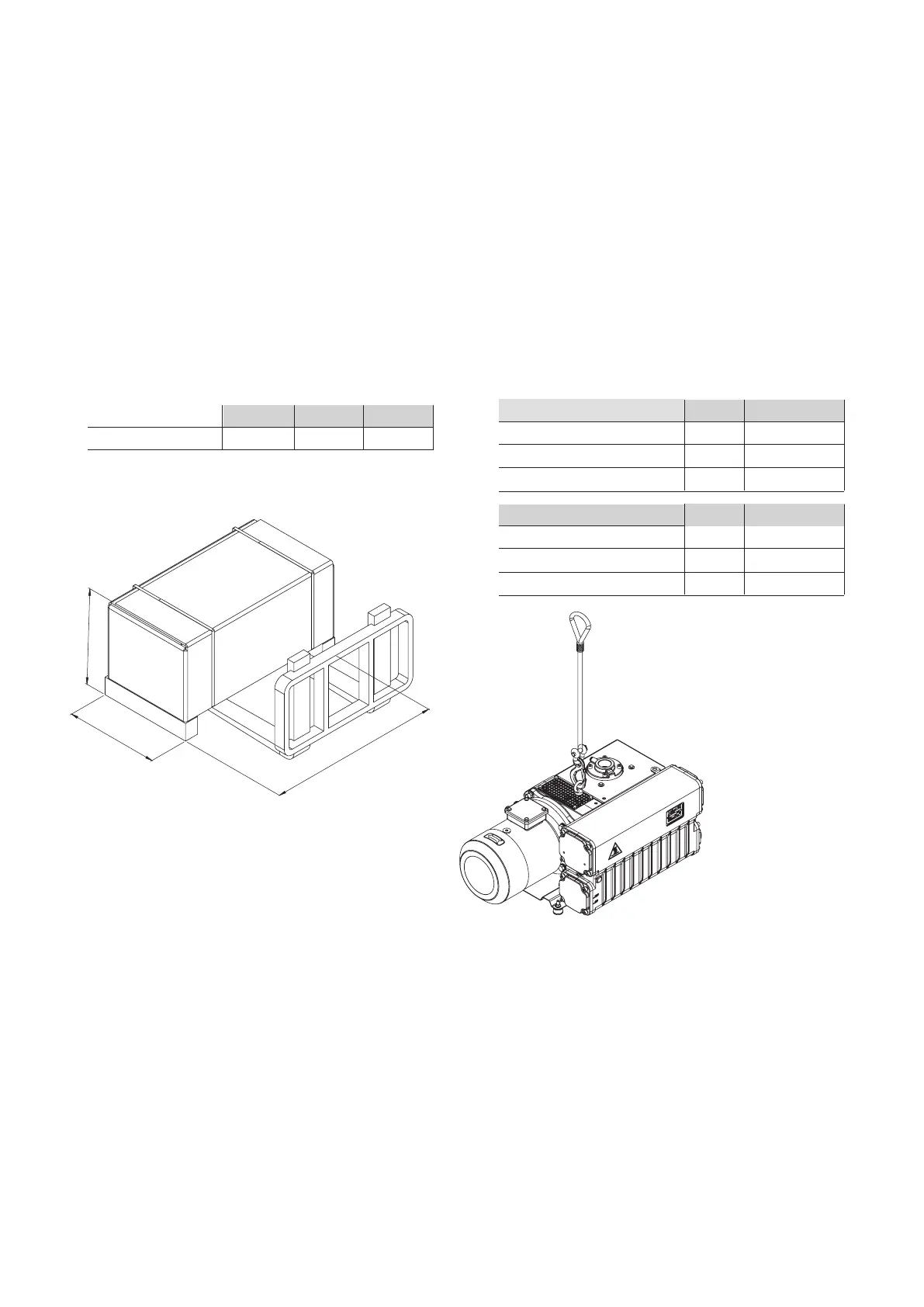

Fig.0
L
B
H
Fig 1
L HB
Packing size
750 mm 505 mm400 mm
EU 65
EU 45
Pump Packaged pump
Weight of the pump with motor 50Hz
60 Kg
66 Kg
44 Kg
66 Kg
72 Kg
50 Kg
Weight of the pump with motor 60Hz
Weight of the pump without motor
Pump Packaged pump
Weight of the pump with motor 50Hz
52 Kg
56 Kg
38 Kg
58 Kg
62 Kg
44 Kg
Weight of the pump with motor 60Hz
Weight of the pump without motor
