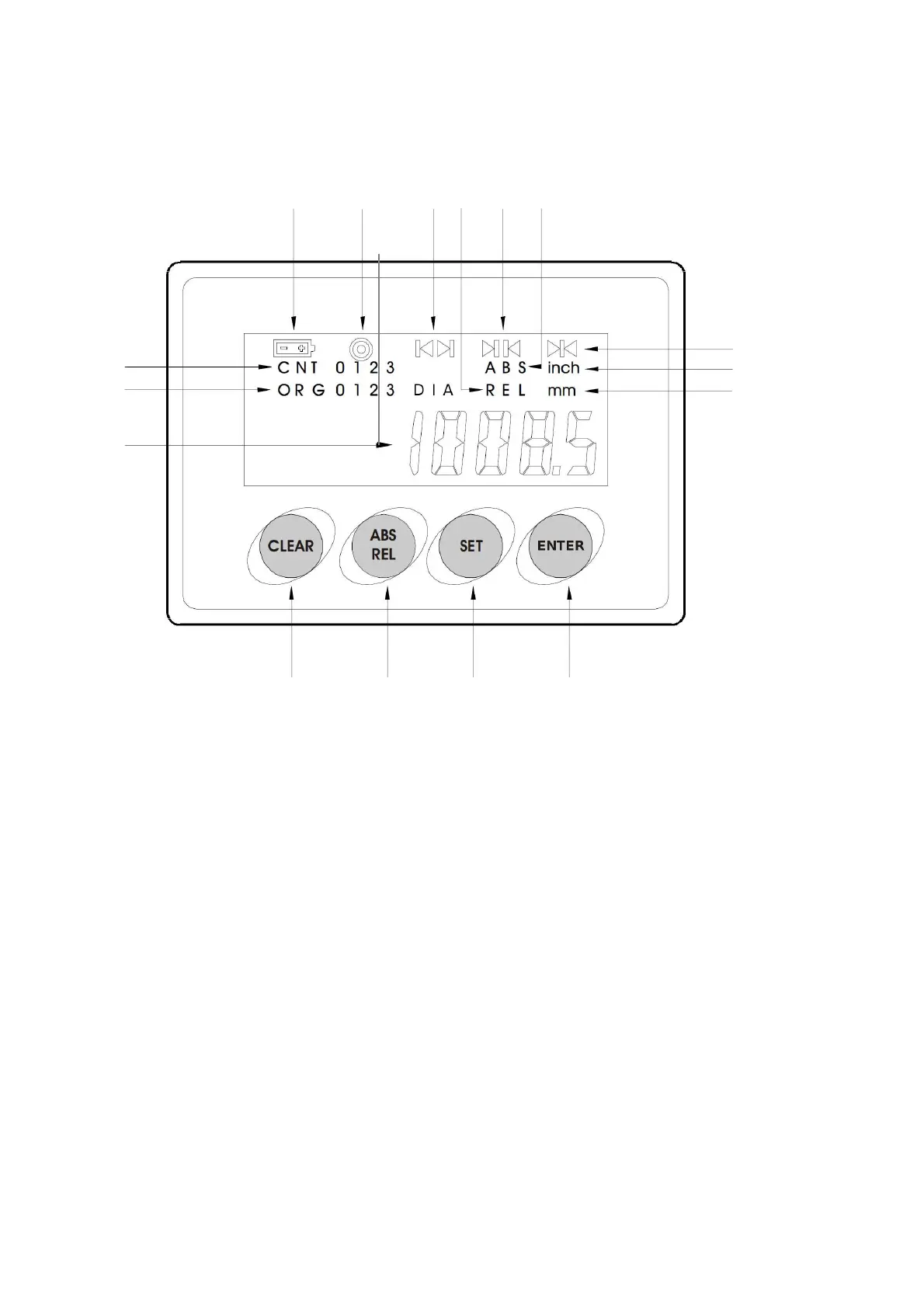

5. Display identification
A. ENTER Key
B. SET Key
C. ABS/REL Key
D. CLEAR Key
E. Measurement
F. Active Origin (Main Origin,
0,1,2,3)
(Absolute Mode)
G. Relative Origin (Main Origin,
0,1,2,3)
(Relative Mode)
H. Low Battery Alarm
I.
No Meaning (displayed with ORG 1)
J. Diameter Reading Mode
(Not shown when in Radius Reading
Mode)
K. No Meaning (displayed with ORG 0)
L. Relative Mode Selected
M. No Meaning (displayed with ORG 2)
N. Absolute Mode Selected
O. No Meaning (displayed with Main
Origin)
P. Inch Scaling
Q. Millimeter (mm) Scaling
A B C D
E
F
G
H I J K L M N
O
P
Q
