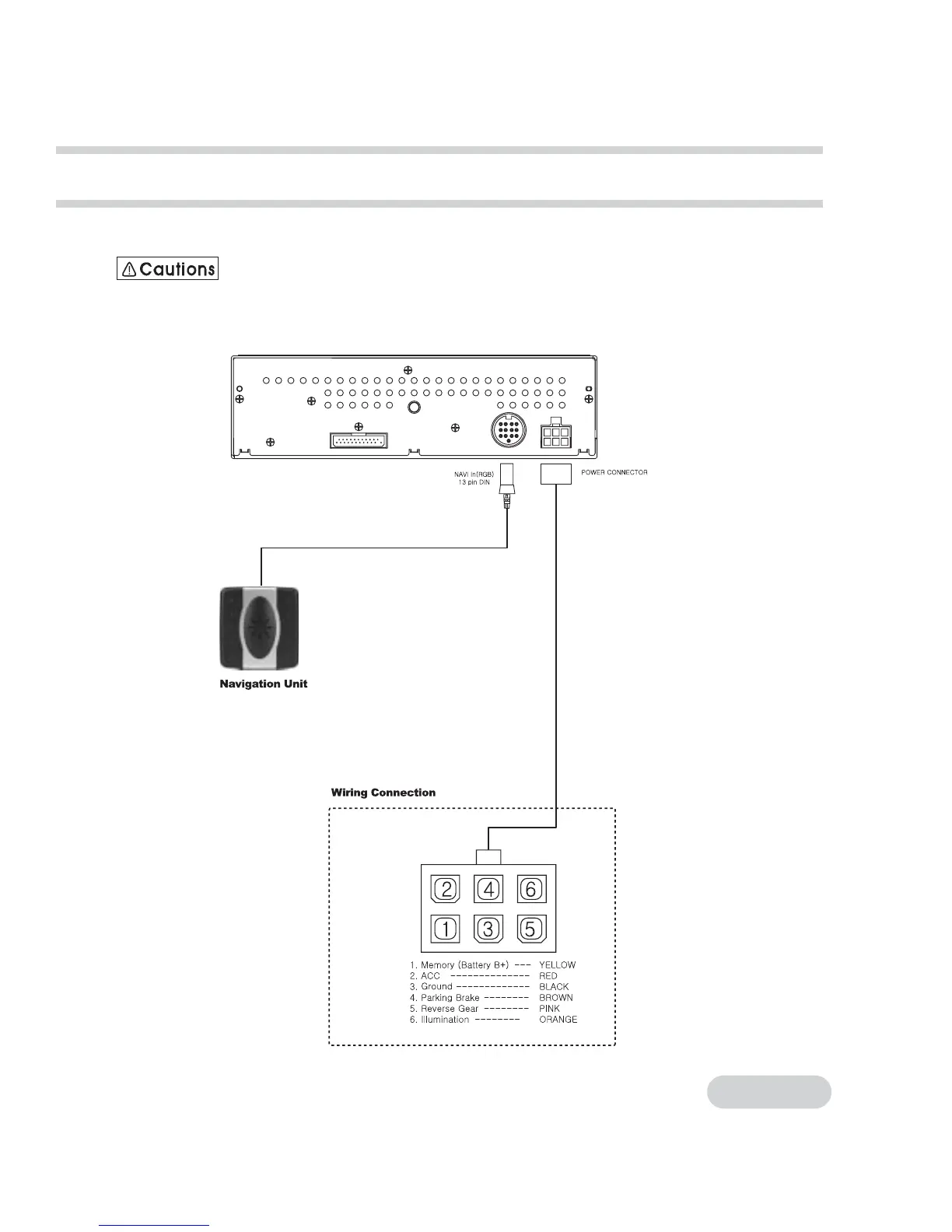

Wire Connection
27
1. Be sure that the PARKING SENSOR WIRE must be grounded or opened.
If it is connected to ACC (B+). The unit can be damaged.
2. Do not ground the POWER ANTENNA wire. If it is grounded, the unit can be damaged.
