5

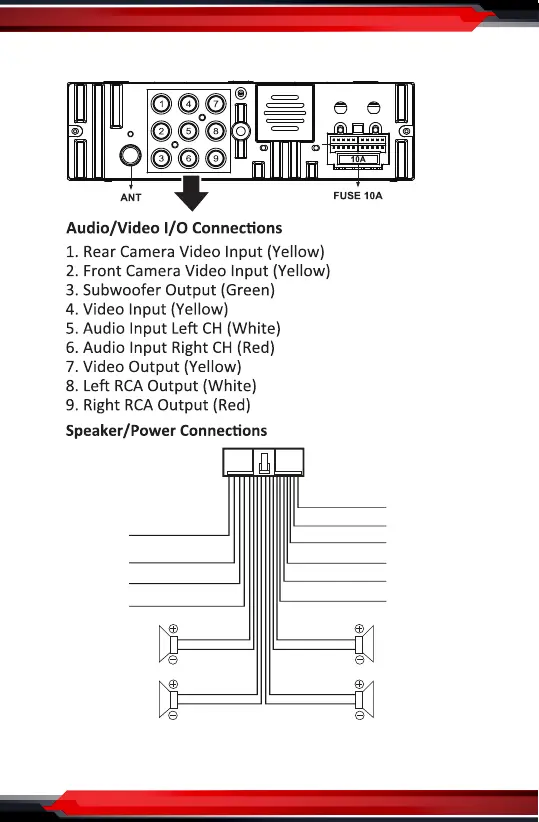

Wiring Connections:
Note:
the ground connection cable (parking brake B-) must be connected in order
for pictures to be played back t
o the monitor. If the cable has not been corr
ec
tly
connected, warning message appears on the monitor
.
RED
YELLOW
BLACK
BLUE
ACC
B+
GROUND
POWER
ANTENNA
FRONT LEFT
CHANNEL SPEAKER
REAR LEFT
CHANNEL SPEAKER
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
SWC - GND
SWC - 1
SWC - 2
REVERSE (+)
P
ARKING BRAKE (B-)
ILLUMINA
TION (+)
FRONT RIGHT
CHANNEL SPEAKER
REAR RIGHT
CHANNEL SPEAKER
ORANGE
BROWN
BROWN / WHITE
BLACK
PINK
ORANGE / BLACK
GRAY
GRAY / BLACK
VIOLET
VIOLET/BLACK
4
6
