12 © 1999 Directed Electronics, Inc. Vista, CA

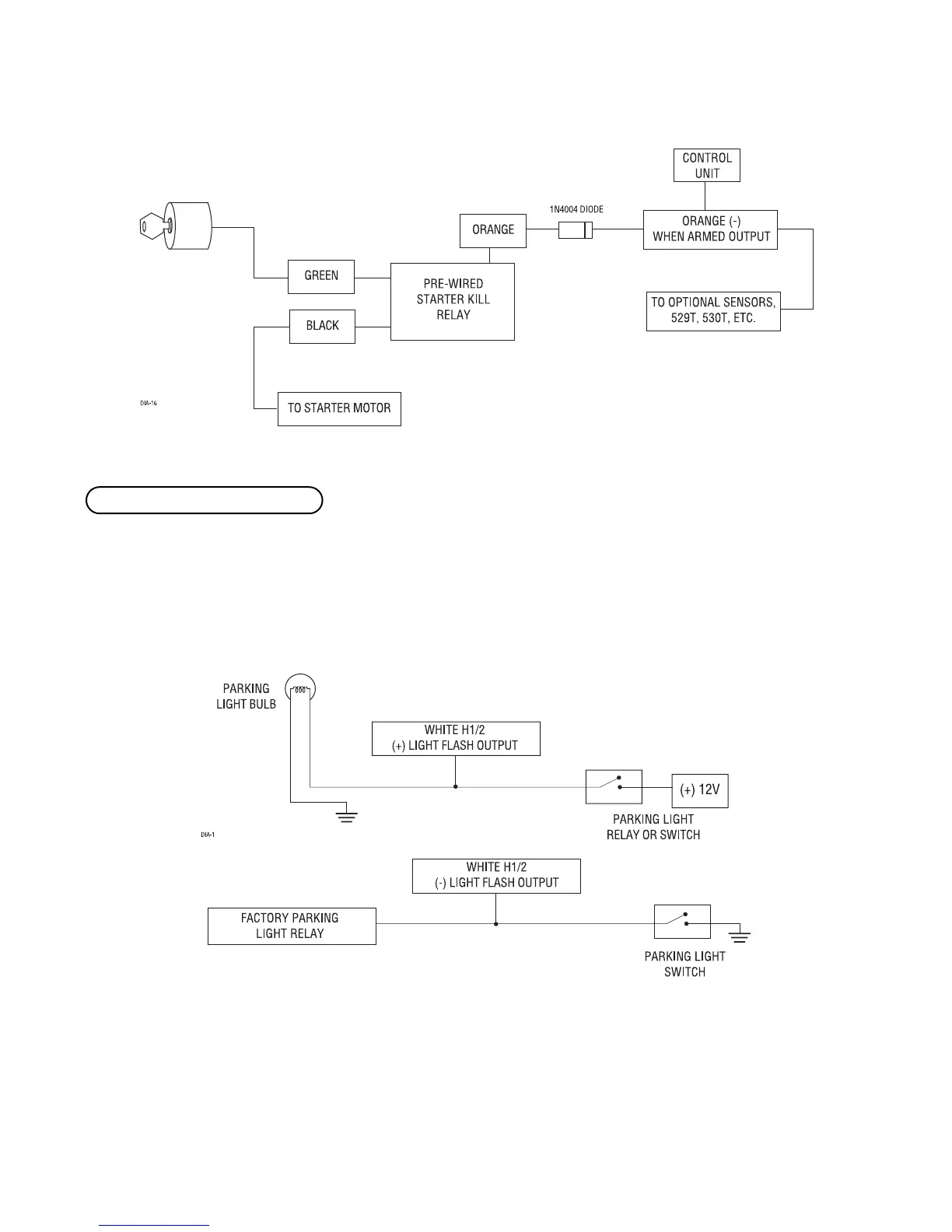

IMPORTANT! Never interrupt any wire other than the starter wire.
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper under
the sliding door is moved to the opposite position (see Internal Programming Jumpers section of this guide), this
wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in Toyota, Lexus, BMW, some
Mitsubishi, some Mazda, and other model cars.
H1/2 WHITE light flash output
