what is included

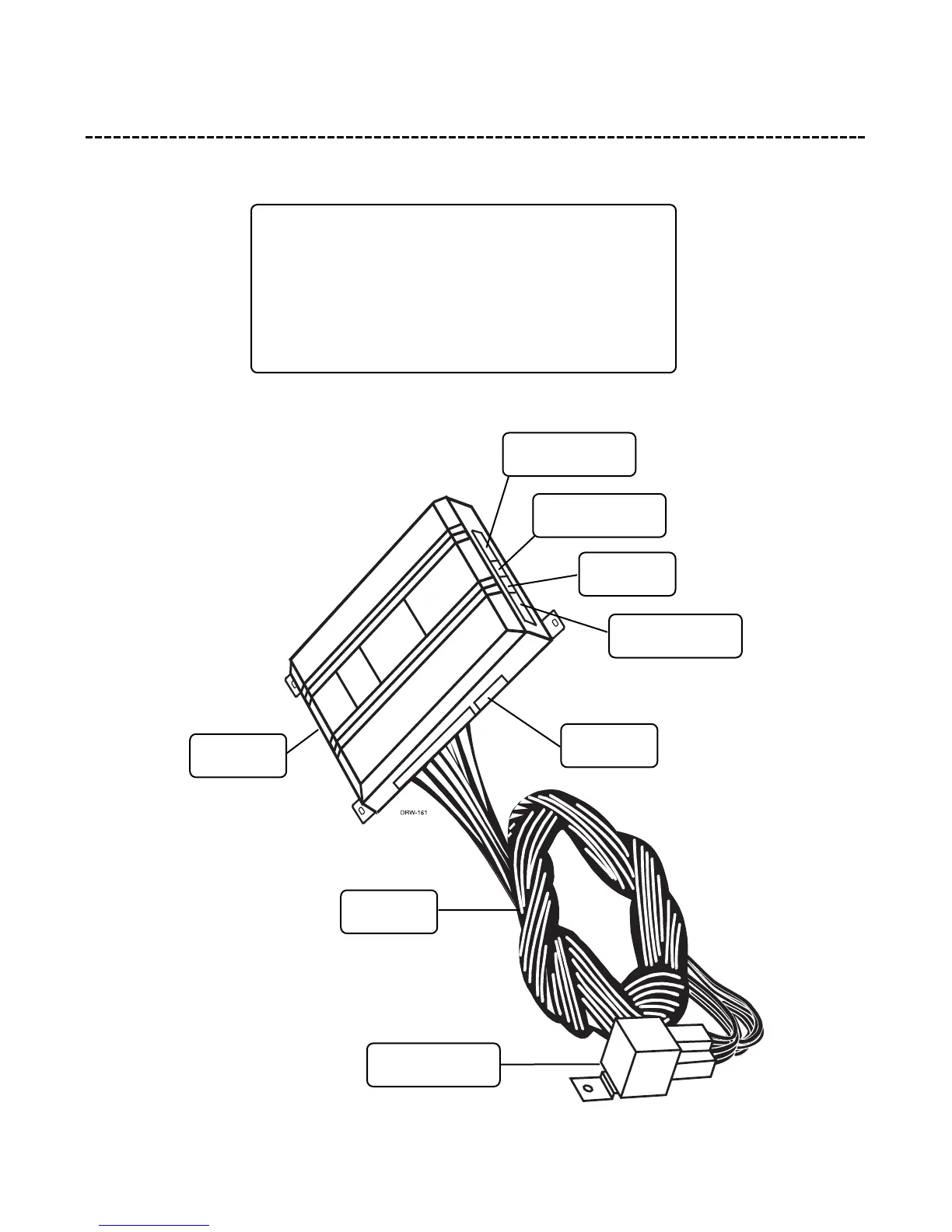

■ The control module (see diagram)

■ Two 476 Series four-button remote transmitters

■ A plug-in status LED

■ A plug-in Valet

/Program switch

■ A plug-in Stinger® shock sensor

■ A Revenger

Soft Chirp

siren

Pre-Wired 8618

Starter Kill Relay

Primary

Harness H1

4-Pin Shock

Sensor Plug

3-Pin 2-Wire Door

Lock Plug

2-Pin Micro

LED Port

Blue 2-Pin Valet

Switch Port

PC Program/Data

Port

2-Pin HF

Antenna Port

Default Chapter2
- Table of Contents2
What Is Included3
Installation Points to Remember4
Deciding on Component Locations5
- Siren5
- Control Module5
- Shock Sensor6
- Valet/Program Switch7
- Status LED7
- Starter Kill Relay8
Finding the Wires You Need8
- Obtaining Constant 12V8
- Switched Ignition Wire8
- Starter Wire9
- Door Pin Switch Circuit9
Making Your Wiring Connections10
Primary Harness (H1), 12-Pin Connector11
Primary Harness (H1) Wire Connection Guide11
Door Lock Harness (H2), 3-Pin Connector16
Door Lock Harness (H2) Wire Connection Guide17
- Positive-Triggered, Relay Driven Systems (Type A)17
- Negative-Triggered, Relay Driven Systems (Type B)18
- Reversing Polarity (Type C)19
- After-Market Actuators (Type D)20
- Electrically Activated Vacuum (Type E)21
- One-Wire System, (Type F)22
Plug-In Harnesses22
- Super Bright LED22
- Valet®/Program Switch22
- Programmer Interface23
Shock Sensor Harness, 4-Pin Connector23
Internal Programming Jumper24
- Light Flash Jumper24
Bypassing Sensor Inputs25
System Features Learn Routine26
- Once a Feature Is Programmed27
- To Access Another Feature in the same Menu27
- To Select Another Menu27
- To Exit the Learn Routine27
System Features Menus28
- Menu #1-Basic Features28
- Menu #2-Advanced Features28
Feature Descriptions29
- Menu #1-Basic Feature Descriptions29
- Menu #2-Advanced Feature Descriptions30
Transmitter/Receiver Learn Routine32
Transmitter Configurations34
- Standard Configuration34
- Single Button Arm/Disarm Configuration34
Multi-Level Security Arming35
Table of Zones35
Long-Term Event History36
Optional Vehicle Recovery System36
- To Arm VRS36
- To Disarm VRS37
Rapid Resume Logic37
Troubleshooting38
