32 © 1999 Directed Electronics, Inc. Vista, CA

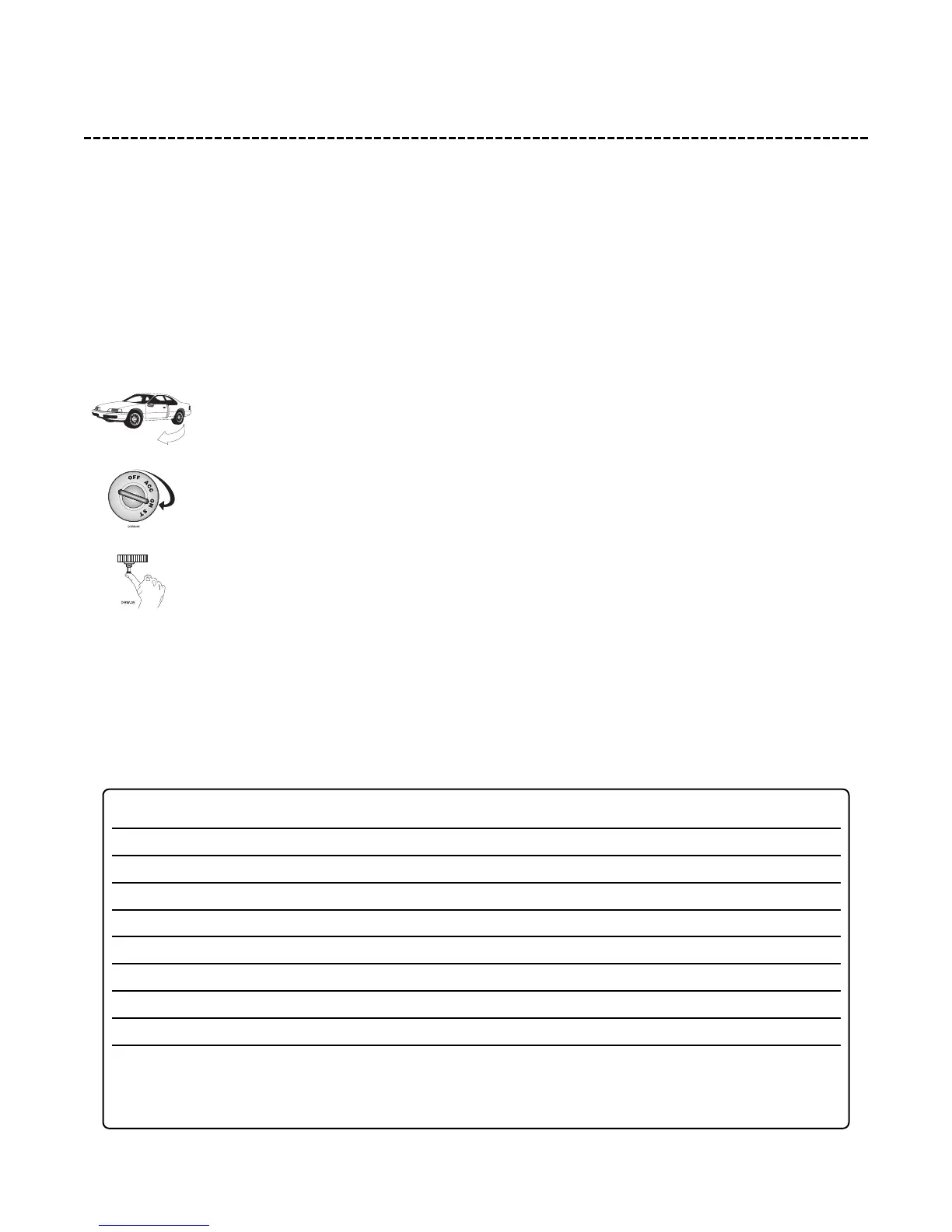

transmitter /receiver learn routine
The system comes with two transmitters that have been taught to the receiver. The receiver can store up to 4
different transmitter codes in memory. Use the following learn routine to add transmitters to the system or to
change button assignments if desired.
Using the optional DEI Bitwriter or PC Interface, the learn routine may be locked. Make sure the learn routine is
unlocked before programming features. If the siren generates one long chirp when attempting to program the
unit, the learn routine is locked and must be unlocked using the DEI Bitwriter or PC before proceeding.
1. Open a door: (The GREEN wire, H1/5, or the VIOLET, H1/7 must be connected.)
2. Turn the ignition on: (The YELLOW wire, H1/9 must be connected.)
3. Select the receiver channel: Press and release the Valet®/Program button the number of
times necessary to access the desired channel.
NOTE: If adding a remote, a button must be taught to the unit in the Channel 1 or Channel 4 posi-
tion prior to programming other channels.
Press and hold the Valet®/Program button once more. The siren will chirp and the LED will blink the number of
times corresponding to the channel that is accessed.
CHANNEL NUMBER FUNCTION WIRE COLOR
1 Arm/Disarm/Panic
2 Silent Mode™/Remote Valet
®
/Trunk Release RED/WHITE
3 Remote Start or other accessories WHITE/BLUE
4 Arm only
5 Disarm only
6 Panic only
7 Auto Learn Standard Configuration*
8 Auto Learn Single Button Arm/Disarm Configuration*
9 Delete all transmitters
*NOTE: For Auto Learn Configurations, see Transmitter Configurations section of this guide.
