© 1999 Directed Electronics, Inc. Vista, CA 25
bypassing sensor inputs
There are times when you need to temporarily bypass all sensor inputs to the unit, such as when remote start-
ing the vehicle. Anytime an auxiliary channel output is used, all inputs are bypassed for 5 seconds. During the
5 second bypass period, ground can be supplied to the H1/6 Blue wire without triggering the unit. When the 5
second bypass period ends, if the unit sees ground on the H1/6 Blue wire, all trigger inputs except the door
trigger input will remain bypassed until 5 seconds after ground is removed from the BLUE wire. This can be done

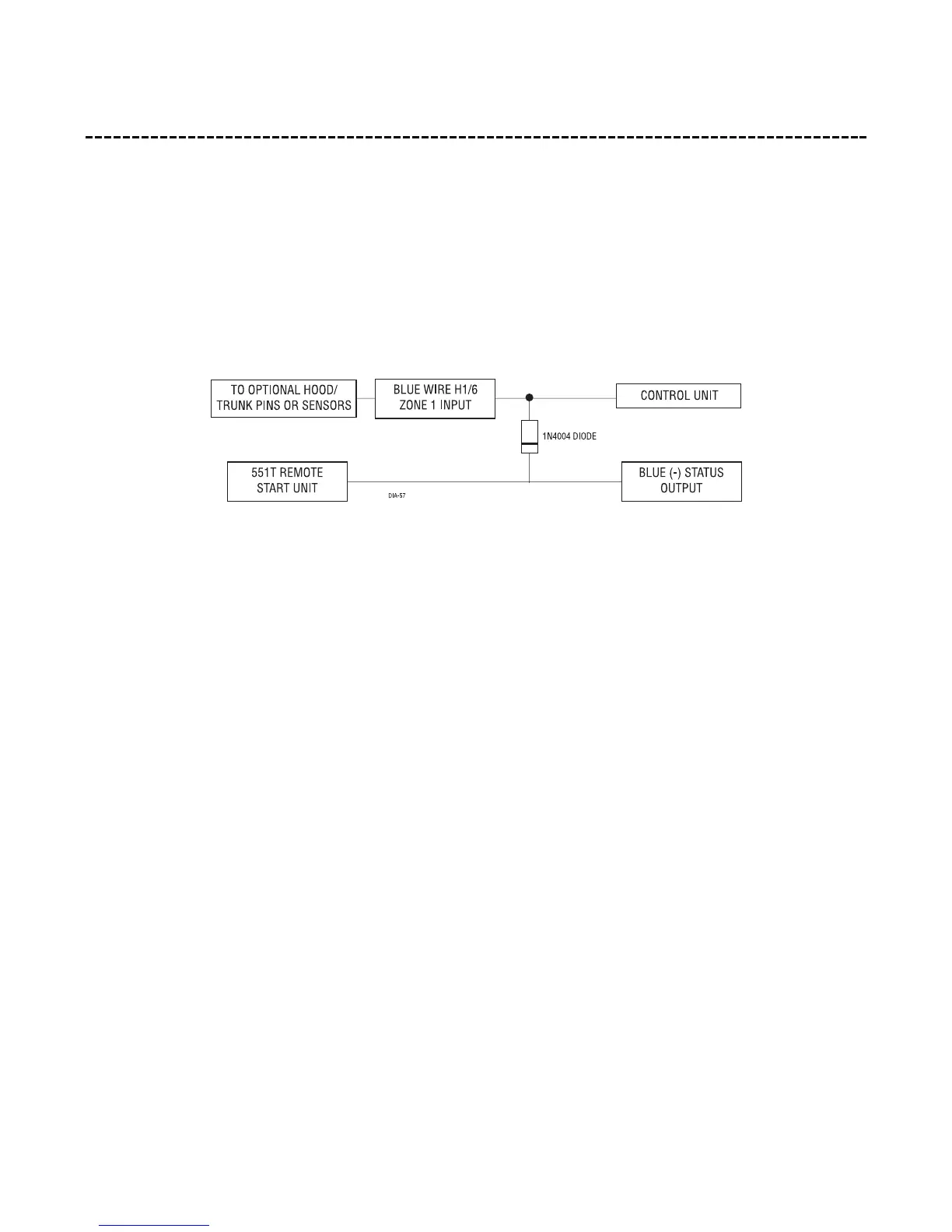

using the status output of a 551T remote start unit as shown below:
