15
© 2008 Directed Electronics. All rights reserved.

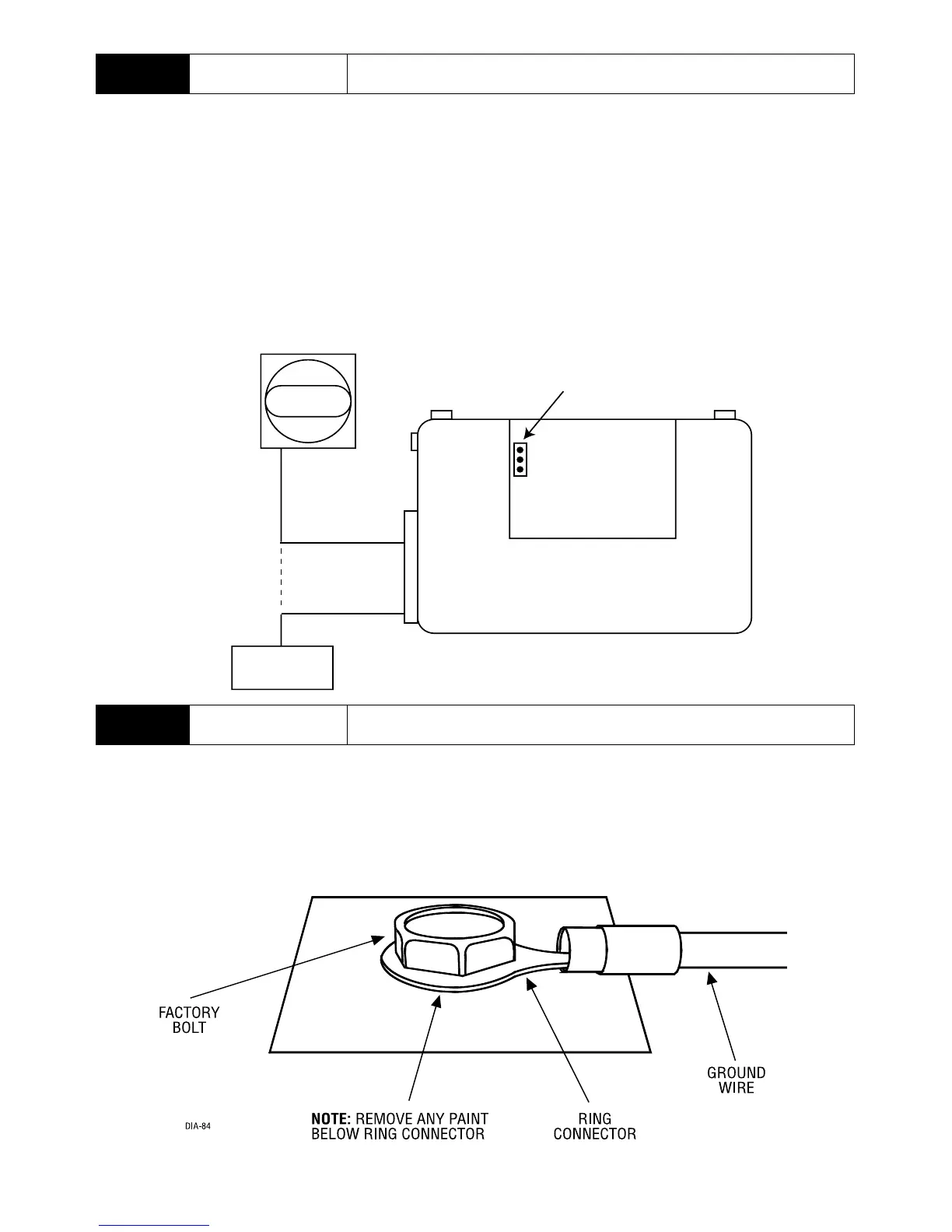

H1/4
WHITE/BROWN LIGHT FLASH -ISOLATION WIRE - PIN 87a of onboard relay
This wire connects to pin 87a of the onboard light flash relay. It is used when-
ever light switch isolation on the vehicle is necessary. If the vehicle has a mul-
tiplex circuit that needs the light switch isolated, you can remove the onboard
light flash fuse and replace it with the specified resistor (paying attention to the
polarity selection).
xx
!
"
H1/5
BLACK (-) CHASSIS GROUND
We recommend that you do not use a factory ground. Ground all your compo-
nents to the same point in the vehicle, (preferably the kick panel). Scrape away
any paint and use a factory bolt or make your own ground with a self-tapping
screw and a star washer.
