18
© 2008 Directed Electronics. All rights reserved.

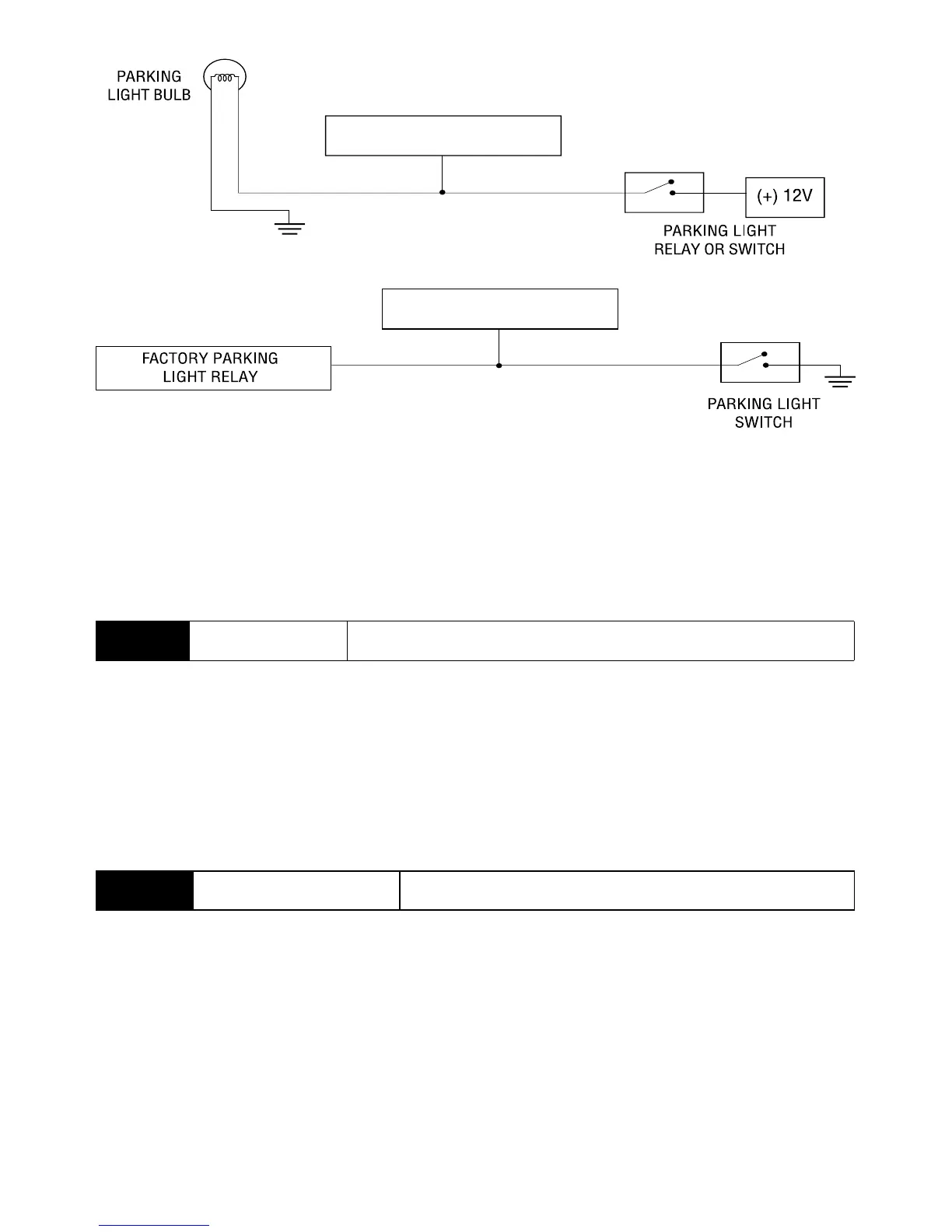

(+) Positive Light Flash Output
(-) Negative Light Flash Output
WHITE H1/11
(+) LIGHT FLASH OUTPUT
WHITE H1/11
(-) LIGHT FLASH OUTPUT
Note: For parking light circuits that draw 10-amps or more, the internal jumper
must be switched to a (-) light flash output. (See Setting the light flash polarity
section of this guide.) P/N 8617 or a standard automotive SPDT relay must be
used on the H1/11 light flash output harness wire.
H1/12
ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT
This wire supplies a (-)500 mA ground as long as the system is armed. This
output ceases as soon as the system is disarmed. The GWA can be hooked up
to a window module, a voice module or any accessory that requires a ground
when armed.
Auxiliary harness (H2)
H2/1
LIGHT GREEN/BLACK (-) 200mA FACTORY ALARM DISARM OUTPUT
This wire sends a negative pulse every time the remote start is activated , trunk
release is activated (programmable on/off) or when the doors are unlocked with
the remote. This can be used to pulse the disarm wire of the vehicle’s factory anti-
theft device. Use a relay to send a (-) or (+) pulse to the disarm wire as shown
in the following diagrams.
