14
© 2008 Directed Electronics. All rights reserved.
Wire connection guides

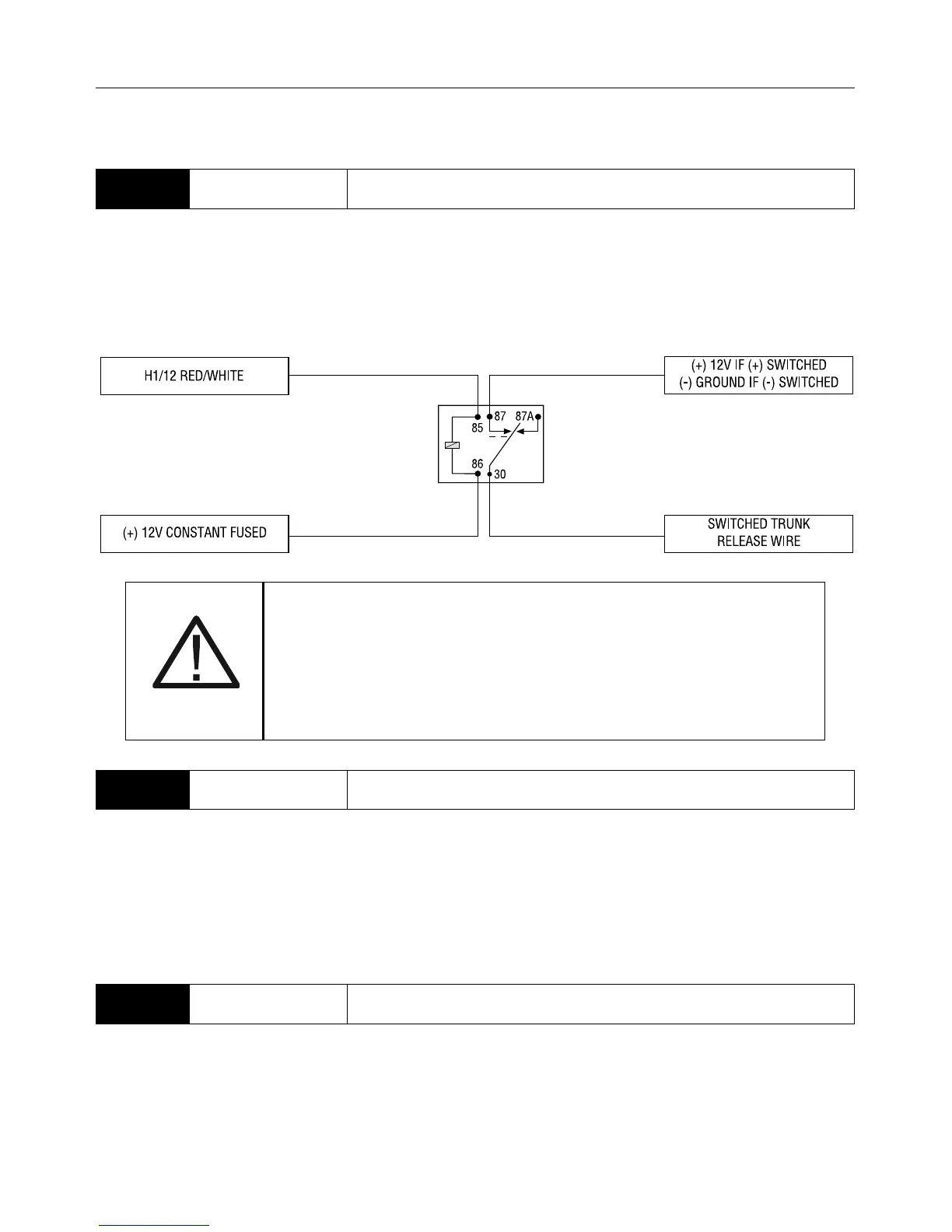

Primary harness (H1)
H1/1
RED/WHITE (-) 200mA TRUNK RELEASE OUTPUT
When the system receives the code controlling trunk release output for longer
than 1.5 seconds, the red/white wire supplies an output as long as the transmis-
sion continues. This is typically used to operate a trunk/hatch release or other
relay-driven function.
Warning!
Never use this wire to drive anything but
a relay or a low-current input! The transistorized out-
put can only supply 200mA of current. Connecting
directly to a solenoid, motor, or other high-current
device will cause it to fail.
H1/2
RED (+)12v CONSTANT INPUT
Before connecting this wire, remove the supplied fuse. Connect to the battery
positive terminal or the constant 12V supply to the ignition switch.
Note:
Always use a fuse within 12 inches of the point you obtain (+)12V. Do not
use the 15A fuse in the harness for this purpose. This fuse protects the module.
H1/3
BROWN (+) SIREN OUTPUT
Connect this to the red wire of the siren . Connect the black wire of the siren
to (-) chassis ground, preferably at the same point you connected the control
module's black ground wire.
