Python Responder LC Model 991 User Manual

19
© 2008 Directed Electronics. All rights reserved.

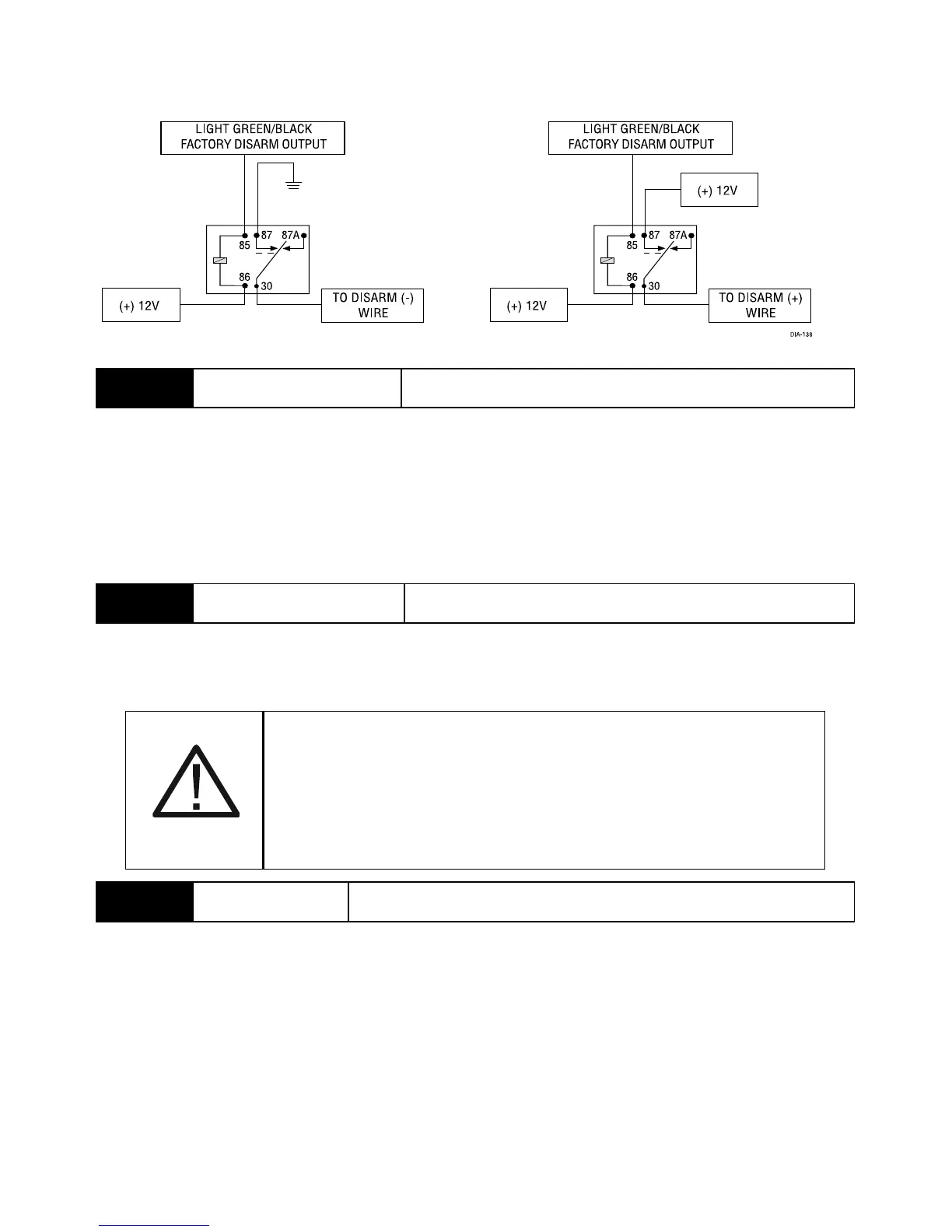

Relay for Negative (-) Disarm Wire Relay for Positive (+) Disarm Wire
H2/2
LIGHT GREEN/WHITE (-) 200mA FACTORY ALARM ARM OUTPUT
This wire sends a negative pulse every time the remote start shuts down or when
the doors are locked with the remote. This can be used to pulse the arm wire
of the vehicle’s factory anti-theft device. Use a relay to send a (-) or (+) pulse to
the arm wire.
H2/3
WHITE/VIOLET (-) 200mA AUX 1 OUTPUT
This wire provides 200 mA programmable output whenever the transmitter but-
tons controlling Aux 1 channel is pressed. (See descriptions for Aux 3)
Warning! Never use this wire to drive anything
but a relay or a low-current input! This transistor-
ized output can only supply 200 mA. Connecting
directly to a solenoid, motor, or other high-current
device will cause the module to fail.
H2/4
VIOLET/BLACK (-) 200mA AUX 2 OUTPUT
This wire provides 200 mA programmable output whenever the transmitter but-
tons controlling Aux 2 channel is pressed. (See descriptions for Aux 3.)
