23
© 2008 Directed Electronics. All rights reserved.
H3/6
RED (+) (30A) FUSED IGNITION 1 RELAY INPUT
This wire is the polarity feed for the Ignition1 relay.
H3/7
PINK/WHITE (+) IGNITION 2 FLEX RELAY OUTPUT
This wire is factory programmed as Ignition 2 and can be programmed as a
2nd accessory or as a 2nd starter.

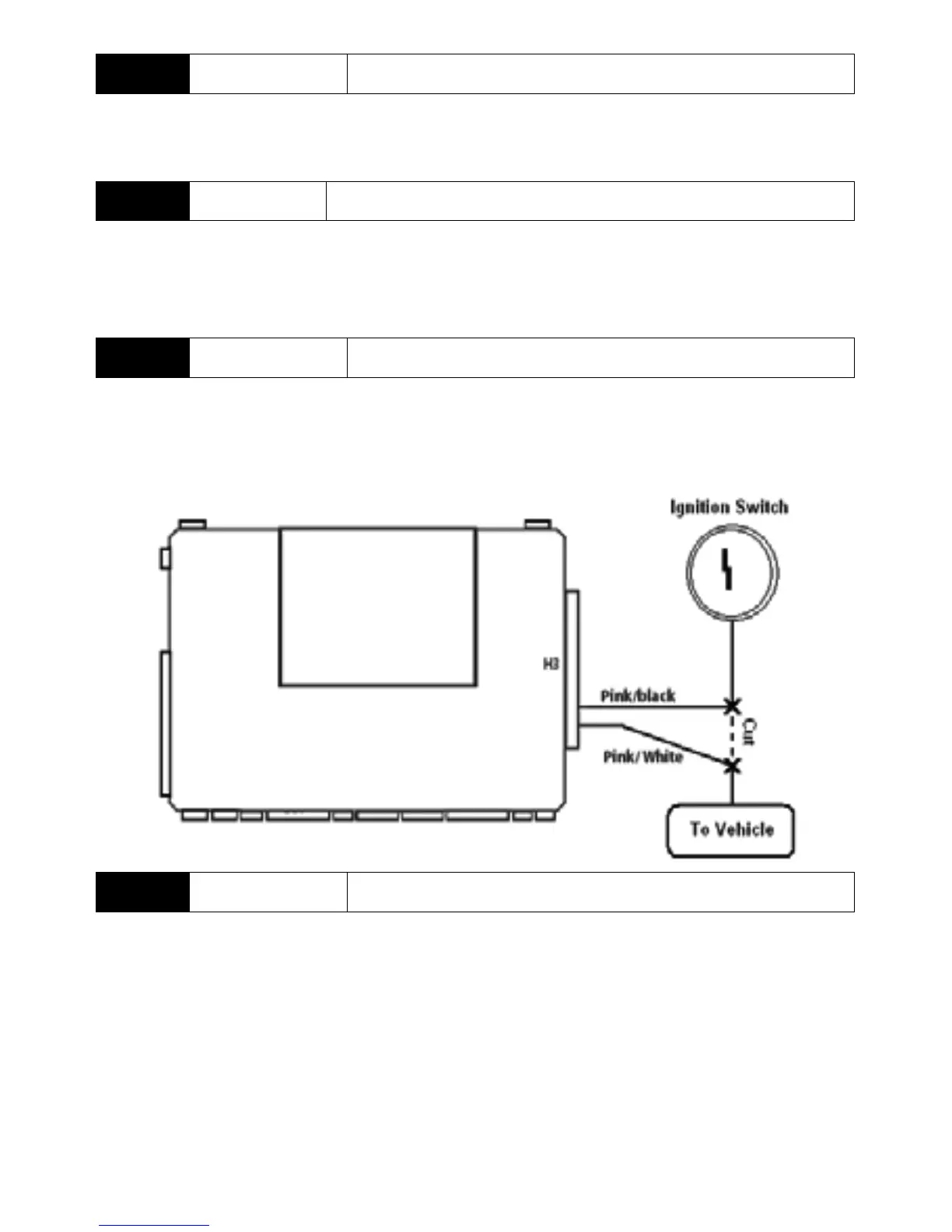

H3/8
PINK/BLACK 87a OF IGNITION 2 FLEX RELAY
This wire is used when an ignition switch isolation on the vehicle is necessary
This is common on Toyota and Nissan's which require the use of Tech Tip docu-
ment #1077. (See Menu #3, Feature #8, for programming options)
H3/9
RED/BLACK (+) (30A) FUSED ACCESSORY/STARTER RELAY INPUT
This wire is the polarity feed to the accessory and starter relays.
