6
5
6
7a

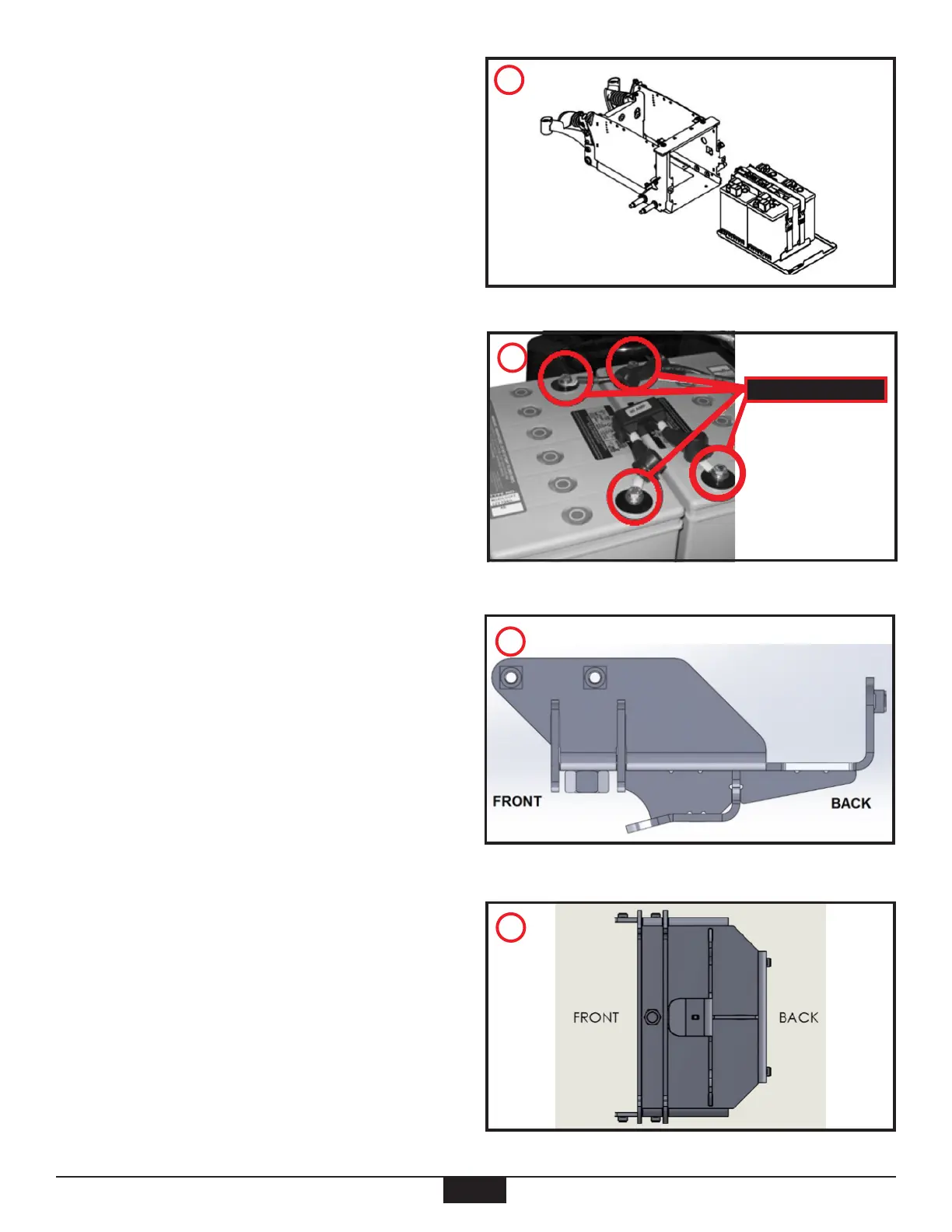

Step 5 – Remove Battery Tray
Slide out the battery tray that holds the two
batteries as shown in Fig.5. These are both strapped
in place.
Step 6 – Disconnect Batteries
Remove the terminal cover from the battery
terminals as shown in Fig.6.
Undo the bolt on the negative terminal - black cable
-with the 11 mm jaw spanner.
After this, undo the bolt on the positive terminal -
red cable.
Put batteries and ttings to one side for later use.
Step 7 – Align Bracket
Fig.7a shows the orientation of item 1 Q03C0040
Welded Bracket Assembly.
Fig.7b shows the orientation of the underside of the
bracket.
7b
Baery Terminals
