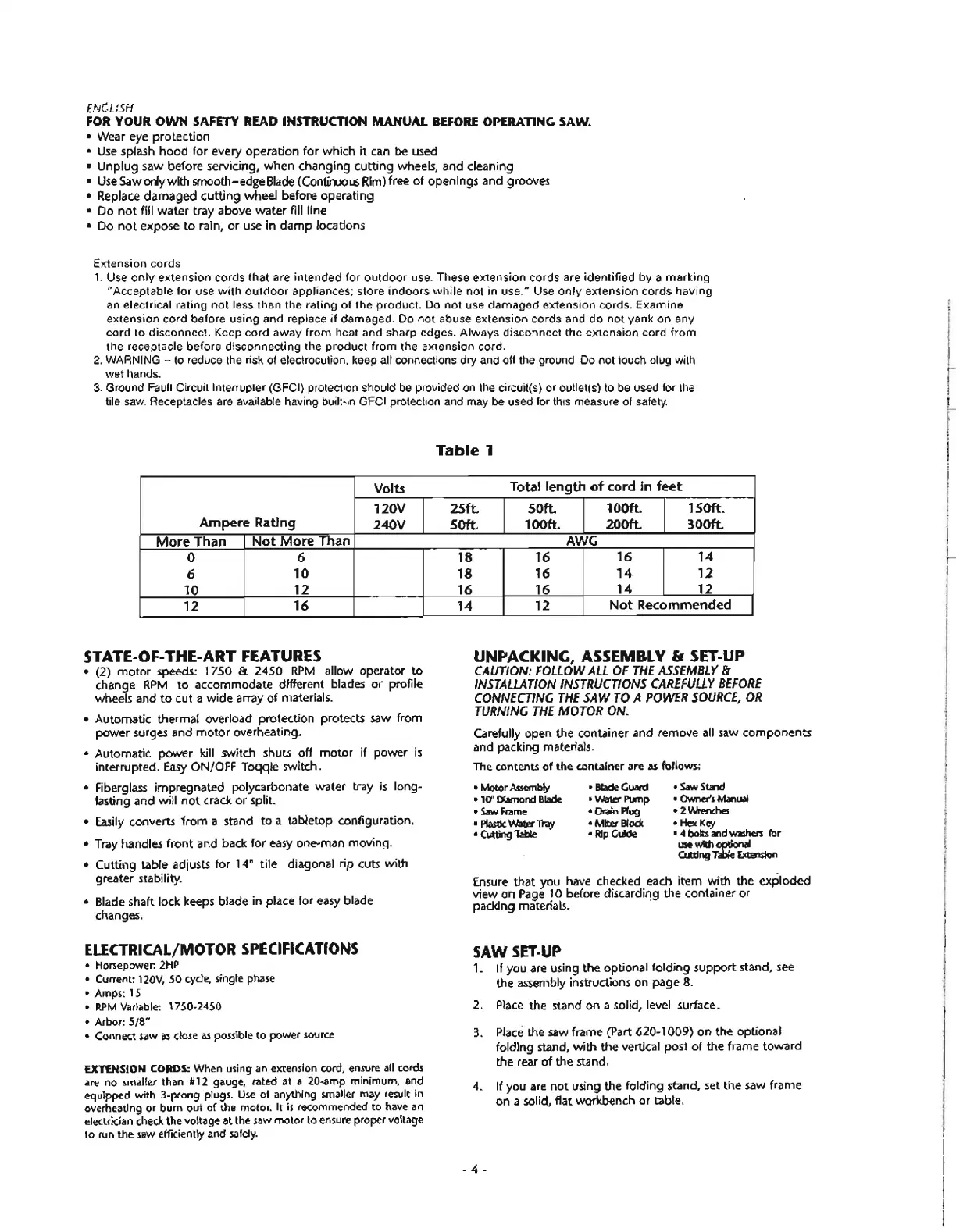

QEP 60020 - Assembly and Initial Setup

ENGLISH
FOR YOUR OWN SAFETY READ INSTRUCTION MANUAL BEFORE OPERATING SAW.
Wear eye protection
Use splash hood for every operation for which it can be used
Unplug saw before servicing, when changing cutting wheels, and cleaning
Use Saw only with smooth-edge Blade (Continuous Rim) free of openings and grooves
Replace damaged cutting wheel before operating
Do not fill water tray above water fill line
Do not expose Lo rain, or use in damp locations
Extension cords
1. Use only extension cords that are intended for Outdoor use. These extension cords are identified by a marking
"Acceptable for use with outdoor appliances; store indoors while not in use.” Use Only extension cords having
an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine
extension cord before using and replace if damaged. Do not abuse extension cords and do not yank on any
card to disconnect. Keep cord away from heat and sharp edges. Always disconnect the extension cord from
the receptacle before disconnecting the product from the extension cord.
2. WARNING - to reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with
wet hands.
3. Ground Faull Circuil Interrupler (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for Ihe
tile saw. Receptacles ars available having built-in GFCI protection and may be used for this measure of safety.
Table 1
Volts
Ámpere Rating
STATE-OF-THE-ART FEATURES
e (2) motor speeds: 1750 € 2450 RPM allow operator to
change RPM to accommodate different blades or profile
wheels and to cut a wide array of materials.
Automatic thermal overload protection protects saw from
power surges and motor overheating.
Autornatic power kill switch shuts off motor if power is
interrupted. Easy ON/OFF Toggle switch.
Fiberglass impregnated polycarbonate water tray is long-
lasting and will not crack or split.
Easily converts from a stand toa tabletop configuration.
Tray handles front and back for easy one-man moving.
Cutting table adjusts for 14” tile diagonal rip cuts with
greater stability.
Blade shaft lock keeps biade in place for easy blade
changes.
ELECTRICAL/MOTOR SPECIFICATIONS
+ Horsepower: 2HP
+ Current: 120V, SO cycle, single phase
» Amps: 15
+ RPM Vartable: 1750-2450
+ Arbor: 5/8”
s Connect saw as close as possible to power source
EXTENSION CORDS: When using an extension cord, ensure all cords
are no smaller than #12 gauge, rated at a 20-amp minimum, and
equipped with 3-prong plugs. Use of anything smaller may result in
overheating or burn out of the motor. It is recommended to have an
electrician check the voltage at the saw motor to ensure proper voltage
to run the saw efficiently and safely.
240V soft 100fL 200ft.
18 16 16 14
16 16 14 12
ERE | EA A
Total length of cord in feet
Not Recommended
UNPACKING, ASSEMBLY & SET-UP
CAUTION: FOLLOW ALL OF THE ASSEMBLY &
INSTALLATION INSTRUCTIONS CAREFULLY BEFORE
CONNECTING THE SAW TO A POWER SOURCE, OR
TURNING THE MOTOR ON.
Carefully open the container and remove all saw components
and packing materials.
The contents of the container are as follows;
e Motor Assembly » Blade Guard + Saw Stand
» 10' Diamond Blade » Water Pump + Owners Manual
» Saw Frame « Drain Plog > 2 Wrenches
a Plastic Water Tray « Mites Block + Hex Key
s Cutting Table « Rip Guide eee eae for
use
Cutting Table Extension
Ensure that you have checked each item with the exploded
view an Page 10 before discarding the container or
packing matenals.
SAW SET-UP
1. If you are using the optional folding support stand, see
the assembly instructions on page 8.
2. Place the stand on a solid, level surface.
3. Place the saw frame (Part 620-1009) on the optional
folding stand, with the vertical post of the frame toward
the rear of the stand.
4. If you are not using the folding stand, set the saw frame
on a solid, flat warkbench ar table.
