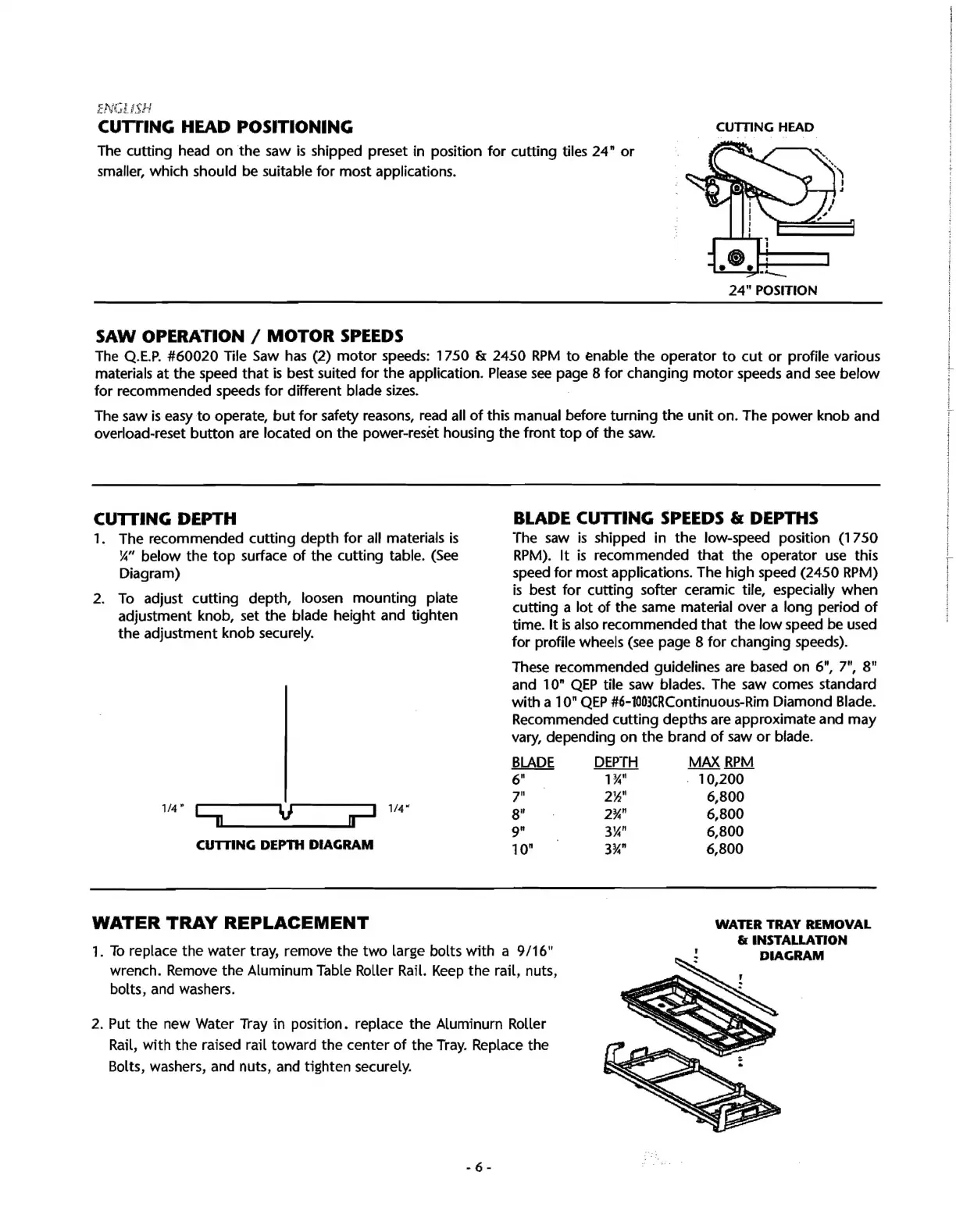

QEP 60020 - Saw Operation; Blade Cutting Speeds & Depths; Water Tray Installation

ER F
xP Maye EN
CUTTING HEAD POSITIONING
The cutting head on the saw is shipped preset in position for cutting tiles 24" or
smaller, which should be suitable for most applications.
SAW OPERATION / MOTOR SPEEDS
CUTTING HEAD
24" POSITION
The Q.E.P. #60020 Tile Saw has (2) motor speeds: 1750 & 2450 RPM to enable the operator to cut or profile various
materials at the speed that is best suited for the application. Please see page 8 for changing motor speeds and see below
for recommended speeds for different blade sizes.
The saw is easy to operate, but for safety reasons, read all of this manual before turning the unit on. The power knob and
overload-reset button are located on the power-reset housing the front top of the saw.
CUTTING DEPTH
1. The recommended cutting depth for all materials is
%" below the top surface of the cutting table. (See
Diagram)
2. To adjust cutting depth, loosen mounting plate
adjustment knob, set the blade height and tighten
the adjustment knob securely.
CUTTING DEPTH DIAGRAM
BLADE CUTTING SPEEDS & DEPTHS
The saw is shipped in the low-speed position (1750
RPM). It is recommended that the operator use this
speed for most applications. The high speed (2450 RPM)
is best for cutting softer ceramic tile, especially when
cutting a lot of the same material over a long period of
time. It is also recommended that the low speed be used
for profile wheels (see page 8 for changing speeds).
These recommended guidelines are based on 6", 7", 8”
and 10" QEP tile saw blades. The saw comes standard
with a 10" QEP #6-1003CR Continuous-Rim Diamond Blade.
Recommended cutting depths are approximate and may
vary, depending on the brand of saw or blade.
BLADE DEPTH MAX RPM
6" o 1%" - 10,200
‘is 2%" 6,800
gy 2%" 6,800
au 34" 6,800
10" 34" 6,800
WATER TRAY REPLACEMENT
1. To replace the water tray, remove the two large bolts with a 9/16" !
wrench. Remove the Aluminum Table Roller Rail. Keep the rail, nuts,
bolts, and washers.
2. Put the new Water Tray in position. replace the Aluminurn Roller
Rail, with the raised rail toward the center of the Tray. Replace the
Bolts, washers, and nuts, and tighten securely.
WATER TRAY REMOVAL
& INSTALLATION
DIAGRAM
