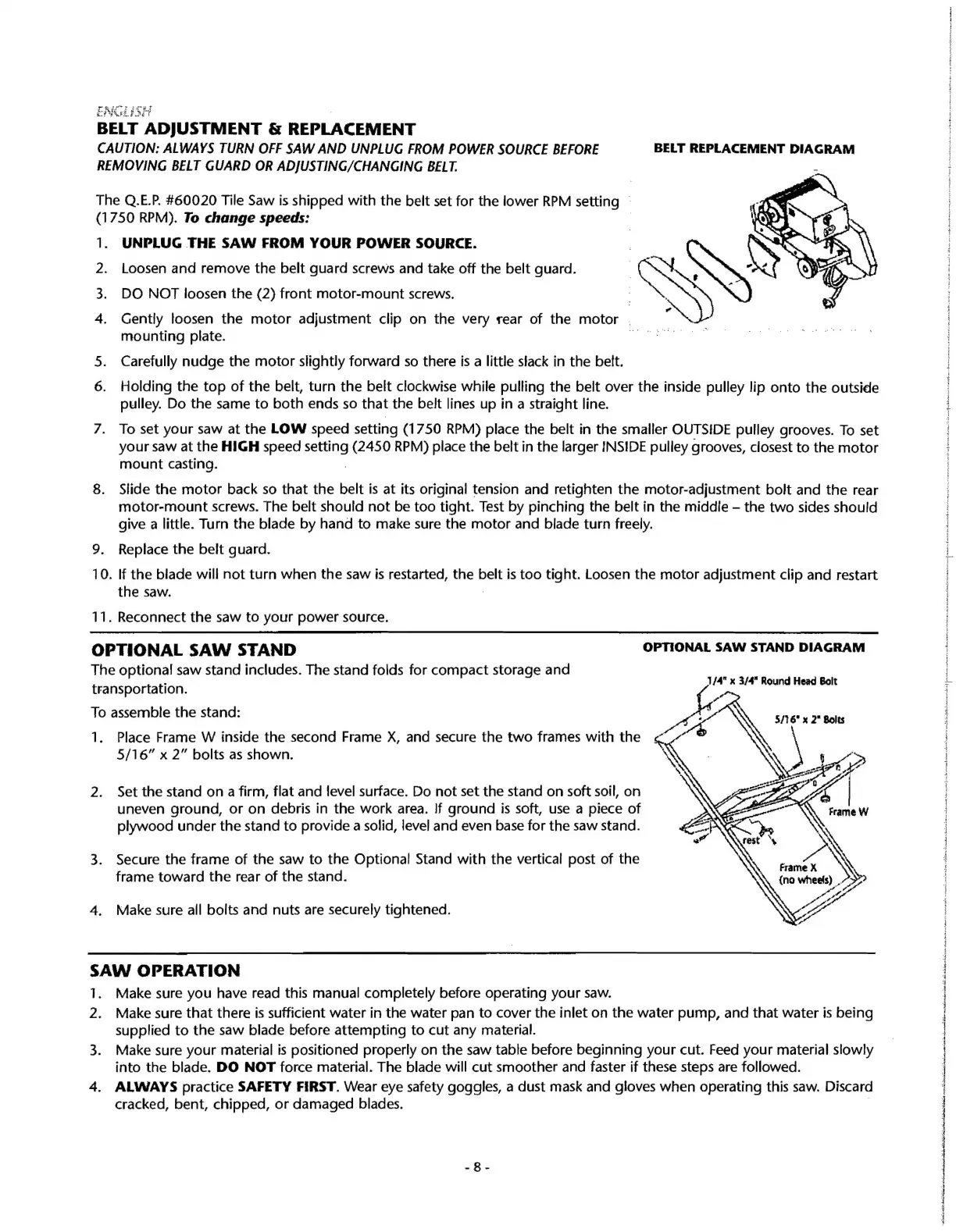

BELT ADJUSTMENT & REPLACEMENT
CAUTION: ALWAYS TURN OFF SAW AND UNPLUG FROM POWER SOURCE BEFORE BELT REPLACEMENT DIAGRAM
REMOVING BELT GUARD OR ADJUSTING/CHANGING BELT. -
ire?
Pad
Pi Ze
The Q.E.P. #60020 Tile Saw is shipped with the belt set for the lower RPM setting -
(1750 RPM). To change speeds: |
1. UNPLUG THE SAW FROM YOUR POWER SOURCE.
Loosen and remove the belt guard screws and take off the belt guard.
2
3. DO NOT loosen the (2) front motor-mount screws. |
4. Gently loosen the motor adjustment clip on the very rear of the motor .
mounting plate. u
Carefully nudge the motor slightly forward so there is a little stack in the belt.
6. Holding the top of the belt, turn the belt clockwise while pulling the belt over the inside pulley lip onto the outside
pulley. Do the same to both ends so that the belt lines up in a straight line.
7. To set your saw at the LOW speed setting (1750 RPM) place the belt in the smaller OUTSIDE pulley grooves. To set
your saw at the HIGH speed setting (2450 RPM) place the belt in the larger INSIDE pulley grooves, closest to the motor
mount casting.
8. Slide the motor back so that the belt is at its original tension and retighten the motor-adjustment bolt and the rear
motor-mount screws. The belt should not be too tight. Test by pinching the belt in the middle - the two sides should
give a little. Turn the blade by hand to make sure the motor and blade turn freely.
nd
9. Replace the belt guard.
10. If the blade will not turn when the saw is restarted, the belt is too tight. Loosen the motor adjustment clip and restart
the saw. Ä
11. Reconnect the saw to your power source.
OPTIONAL SAW STAND OPTIONAL SAW STAND DIAGRAM
The optional saw stand includes. The stand folds for compact storage and
transportation. 1/4" x 3/4" Round Head Bolt
To assemble the stand: a
> 5/16" x 2" Bolts
1. Place Frame W inside the second Frame X, and secure the two frames with the
5/16” x 2” bolts as shown.
2. Set the stand on a firm, flat and level surface. Do not set the stand on soft soil, on
uneven ground, or on debris in the work area. If ground is soft, use a piece of
plywood under the stand to provide a solid, level and even base for the saw stand.
3. Secure the frame of the saw to the Optional Stand with the vertical post of the
frame toward the rear of the stand.
4. Make sure all bolts and nuts are securely tightened.
SAW OPERATION
1. Make sure you have read this manual completely before operating your saw.
2. Make sure that there is sufficient water in the water pan to cover the inlet on the water pump, and that water is being
supplied to the saw blade before attempting to cut any material.
3. Make sure your material is positioned properly on the saw table before beginning your cut. Feed your material slowly
into the blade. DO NOT force material. The blade will cut smoother and faster if these steps are followed.
4. ALWAYS practice SAFETY FIRST. Wear eye safety goggles, a dust mask and gloves when operating this saw. Discard
cracked, bent, chipped, or damaged blades. |
