QNAP TS-131 User Manual

91

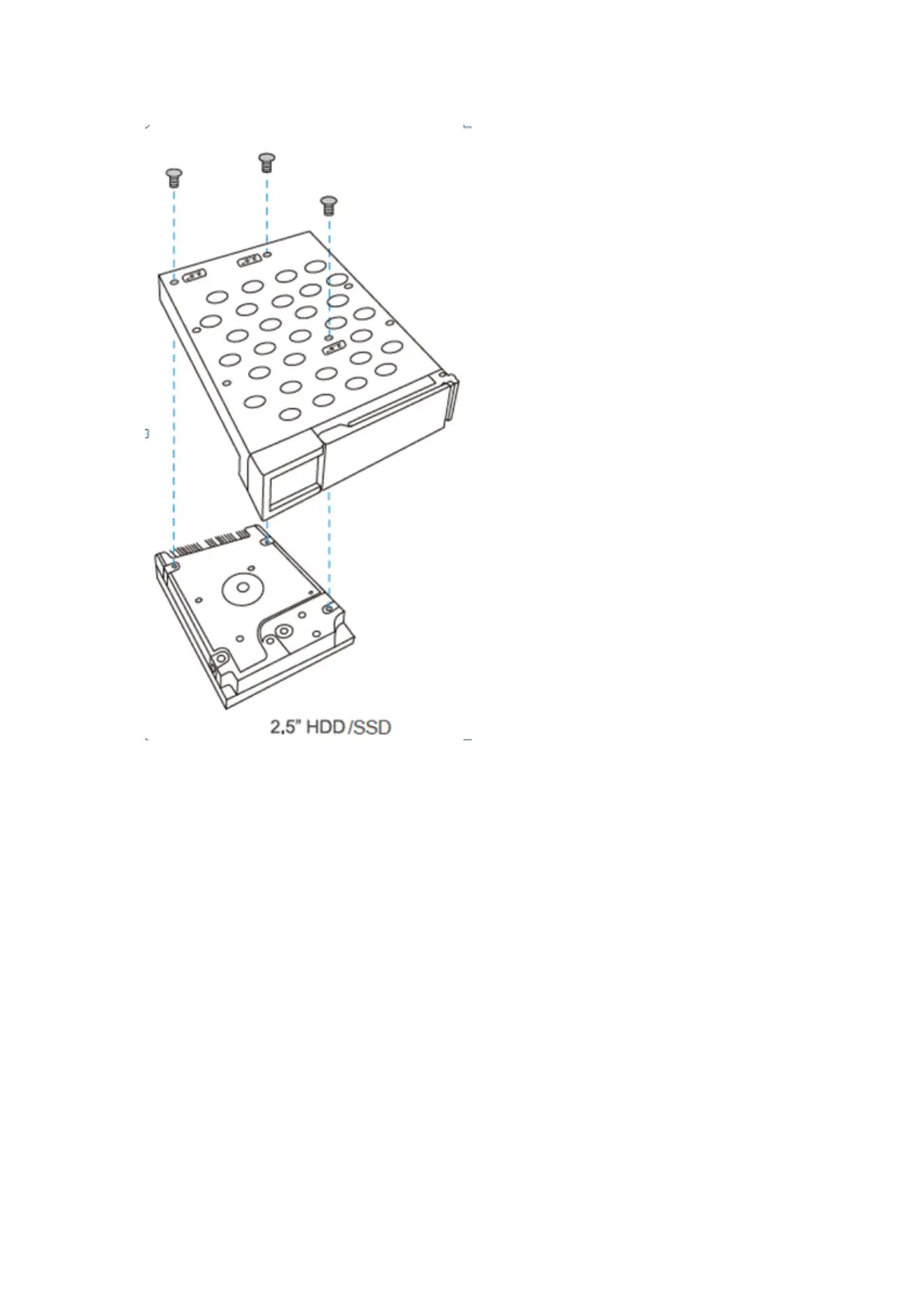

3. Load tray back into drive bay.
i. Insert the drive tray into the NAS. Verify that the tray is correctly oriented (top of
HDD facing right) and fully pushed in.
ii. Close the latch, and lock the switch.
7.1.5. TS-112P, TS-212P and TS-251C
1. Loosen the screws on the rear (top and bottom) of the NAS. Remove the case cover of
the NAS by sliding it apart (see the underside of the NAS for visual indicators of the NAS
case being locked/unlocked.)

QNAP TS-131 Specifications

General

Storage drive size	2.5/3.5 \
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Storage drive interface	Serial ATA II, Serial ATA III
Storage drives installed	No
Supported storage drive types	HDD & SSD
Total installed storage capacity	0 TB
Number of storage drives installed	0
Number of storage drives supported	1
Processor cores	2
Processor model	Cortex-A9
Processor family	Freescale
Processor frequency	1.2 GHz
Processor architecture	ARM Cortex-A9
Flash memory	512 MB
Internal memory	0.512 GB
Internal memory type	-
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Chassis type	Tower
Cooling type	Active
Fan diameter	50 mm
Product color	White
LED indicators	HDD, LAN, Status, USB
Number of fans	1 fan(s)
Cable lock slot type	Kensington
Type	NAS
Noise level	14 dB
Device class	Home & Home Office
Share folder	CIFS/SMB
Backup features	Cloud, iSCSI LUN
Browser supported	Microsoft Internet Explorer 10+, Mozilla Firefox 8+, Apple Safari 4+, Google Chrome
Security algorithms	256-bit AES, HTTPS, SSH, SSL/TLS
Operating system version	4.1
Operating system installed	QNAP Turbo System
Server operating systems supported	Windows Server 2003
Windows operating systems supported	Windows 7 Enterprise
Fan voltage	12 V
AC input voltage	100-240 V
Power supply location	External
Power consumption (sleep)	6.26 W
Power consumption (typical)	13.31 W
Power supply unit (PSU) capacity	36 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	FCC, CE, BSMI, VCCI, C-TICK
Cables included	AC, LAN (RJ-45)

Weight and Dimensions

Depth	219 mm
Width	73 mm
Height	169 mm
Weight	1040 g
Package weight	1800 g
