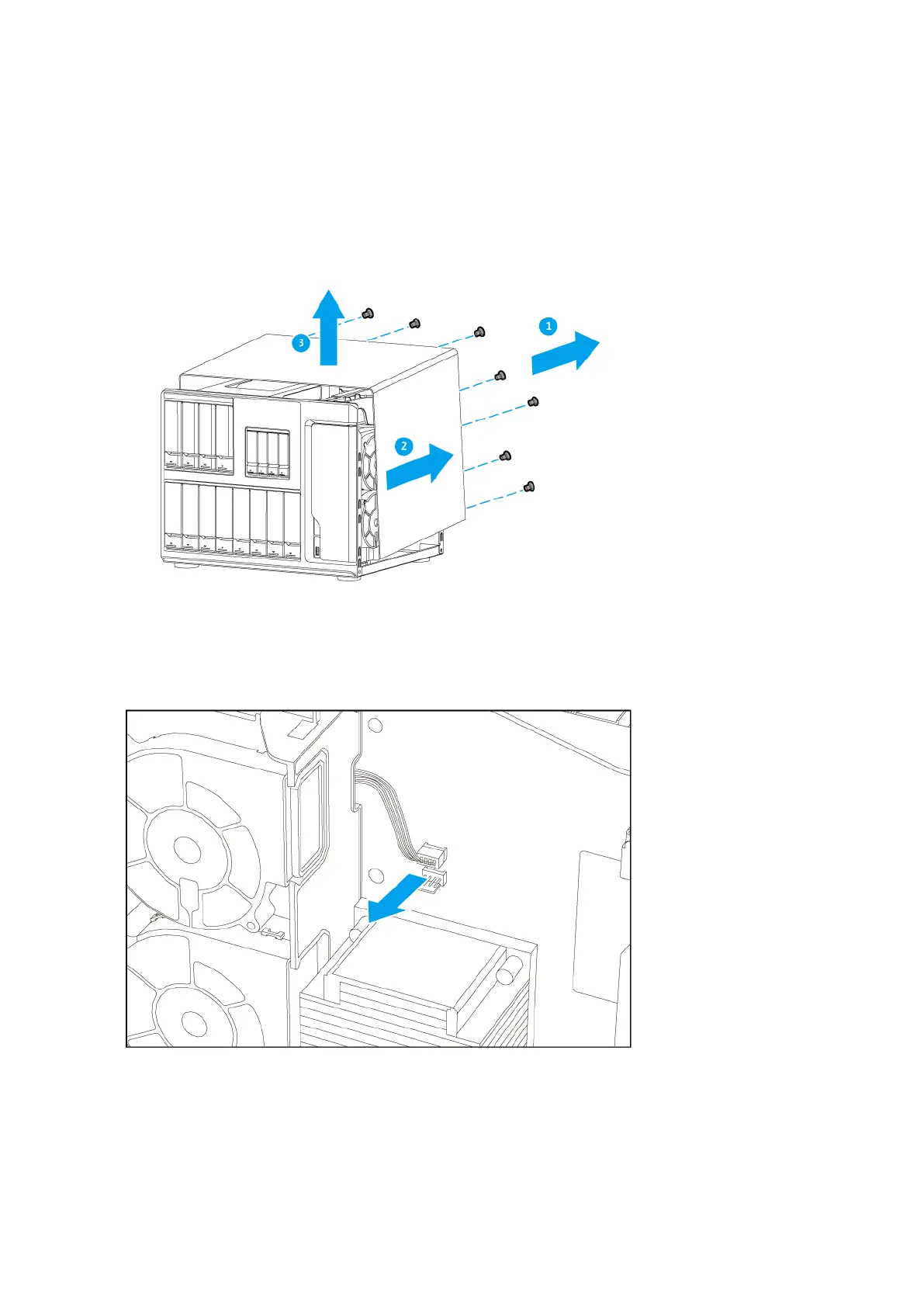

4. Remove the case cover.
a. Remove the screws that secure the cover to the chassis.
b. Slide the cover back.
c. Pull the cover up until it completely detaches from the chassis.
5. Remove the fan module.
a. Disconnect the fan cable from the system board.
b. Remove the screw that secures the fan module to the chassis.
c. Press the fan module clip and then pull the module away from the system board.
TS-1677X User Guide
Installation and Configuration 26
