QNAP TS-1677X Series User Manual

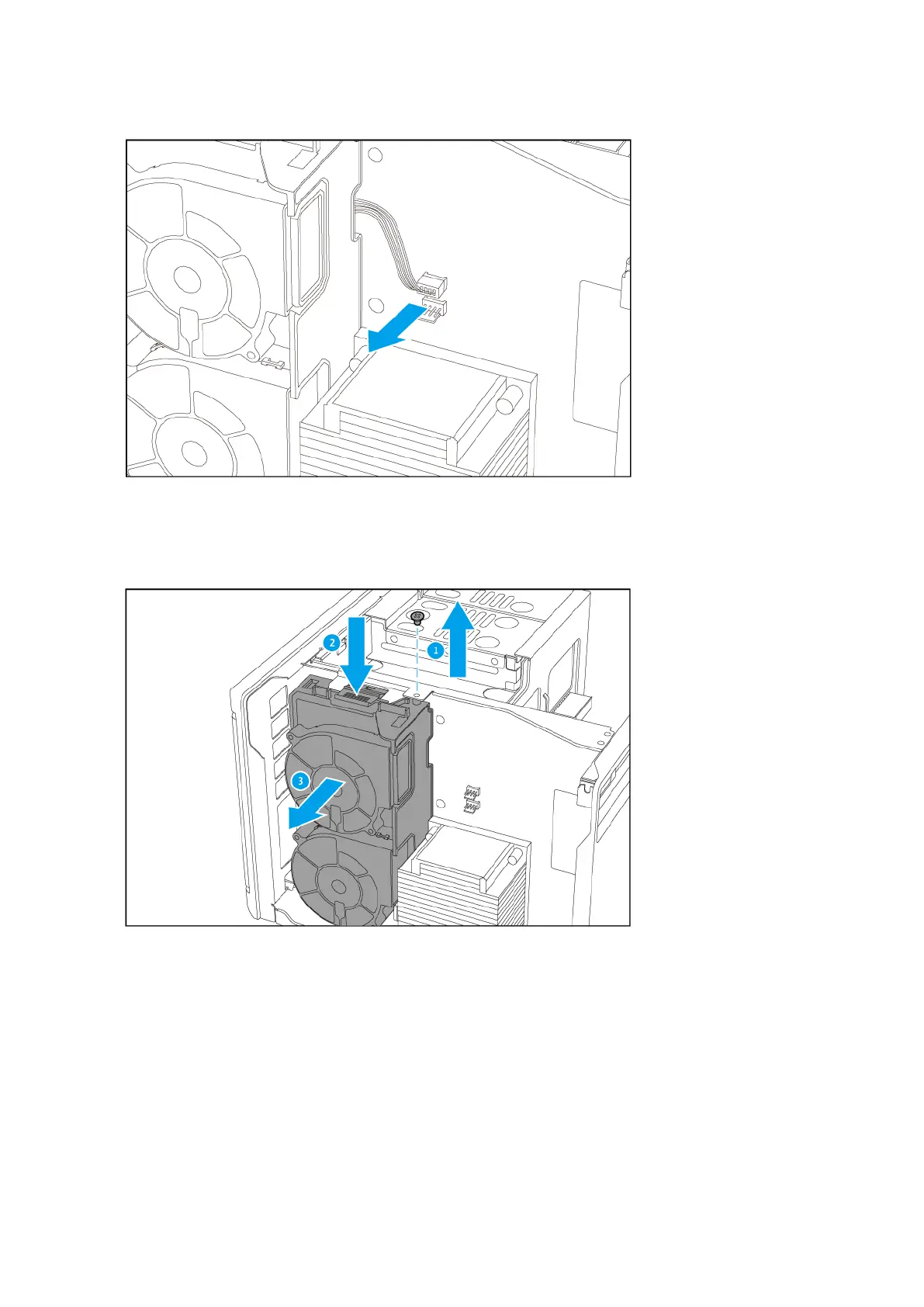

b. Remove the screw that secures the fan module to the chassis.
c. Press the fan module clip and then pull the module away from the system board.
6. Remove an existing fan.
a. Remove the screws that secure the fan to the fan chassis.
TS-1677X User Guide
Installation and Configuration 31
