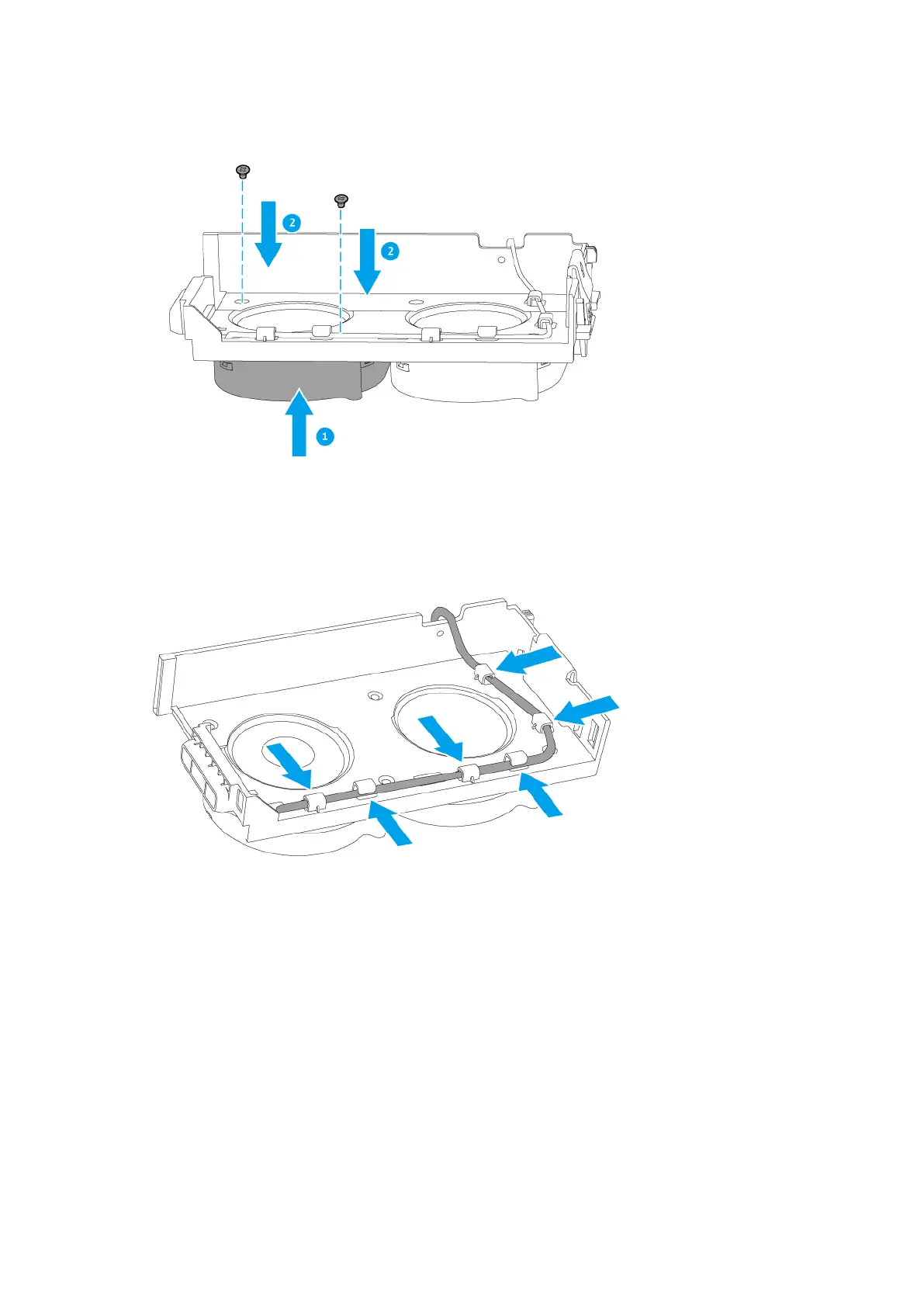

d. Attach the fan cable to the cable clips on the fan chassis.
8. Attach the fan module.
a. Align the clip with the hole on the chassis.
b. Push the module toward the system board until the clip locks the module into place.
c. Attach the screw that secures the module to the chassis.
TS-1677X User Guide
Installation and Configuration 33
