31

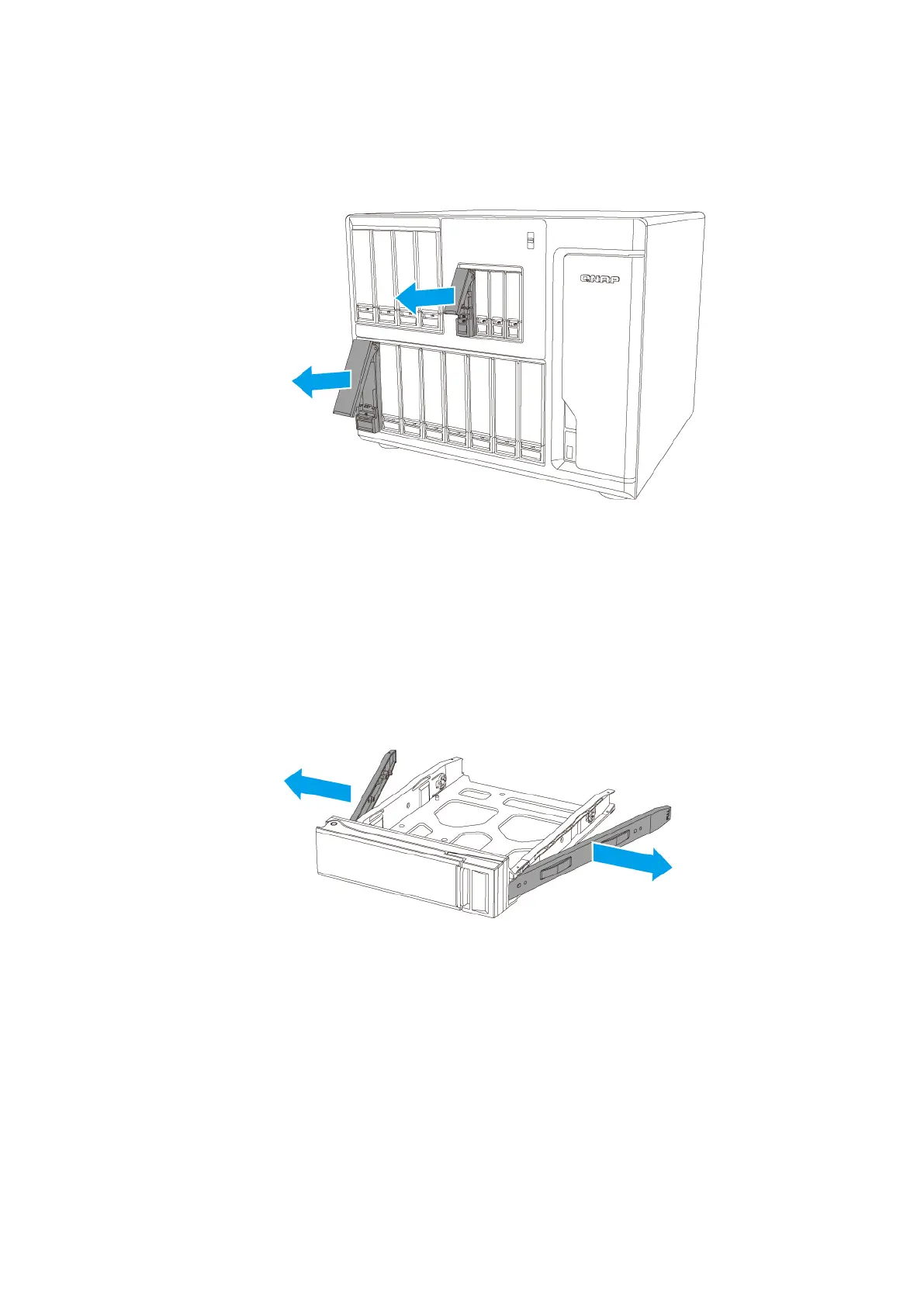

c. Pull out tray using lever.
2. Installing a drive on the tray.
a. 3.5” HDD:
i. Remove the fastening panels from the sides of a 3.5” drive tray.
ii. Place the drive on the tray so that the holes on the sides of the drive are
aligned with the holes on the sides of the tray.
iii. Attach the fastening panels to lock the drive to the tray.
Note: Screws may be inserted for increased stability.
