32

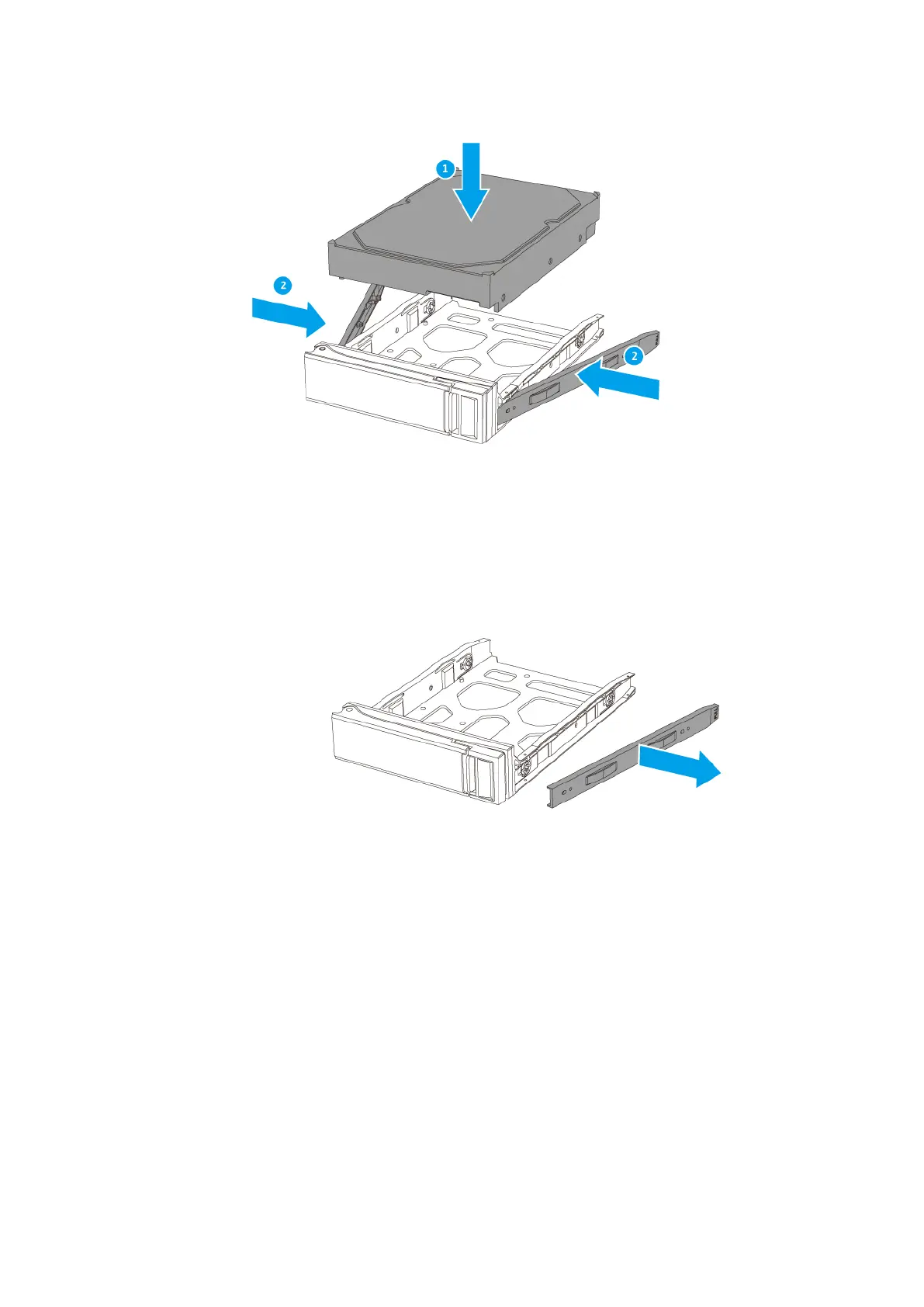

b. 2.5” HDD:
i. Remove the right fastening panel from the 3.5” drive tray.
ii. Place the 2.5” drive on the tray so that the SATA connector is facing out and
that three holes on the bottom of the drive are aligned with three holes on
the bottom of the tray.
iii. Attach the screws to lock the drive to the tray.
