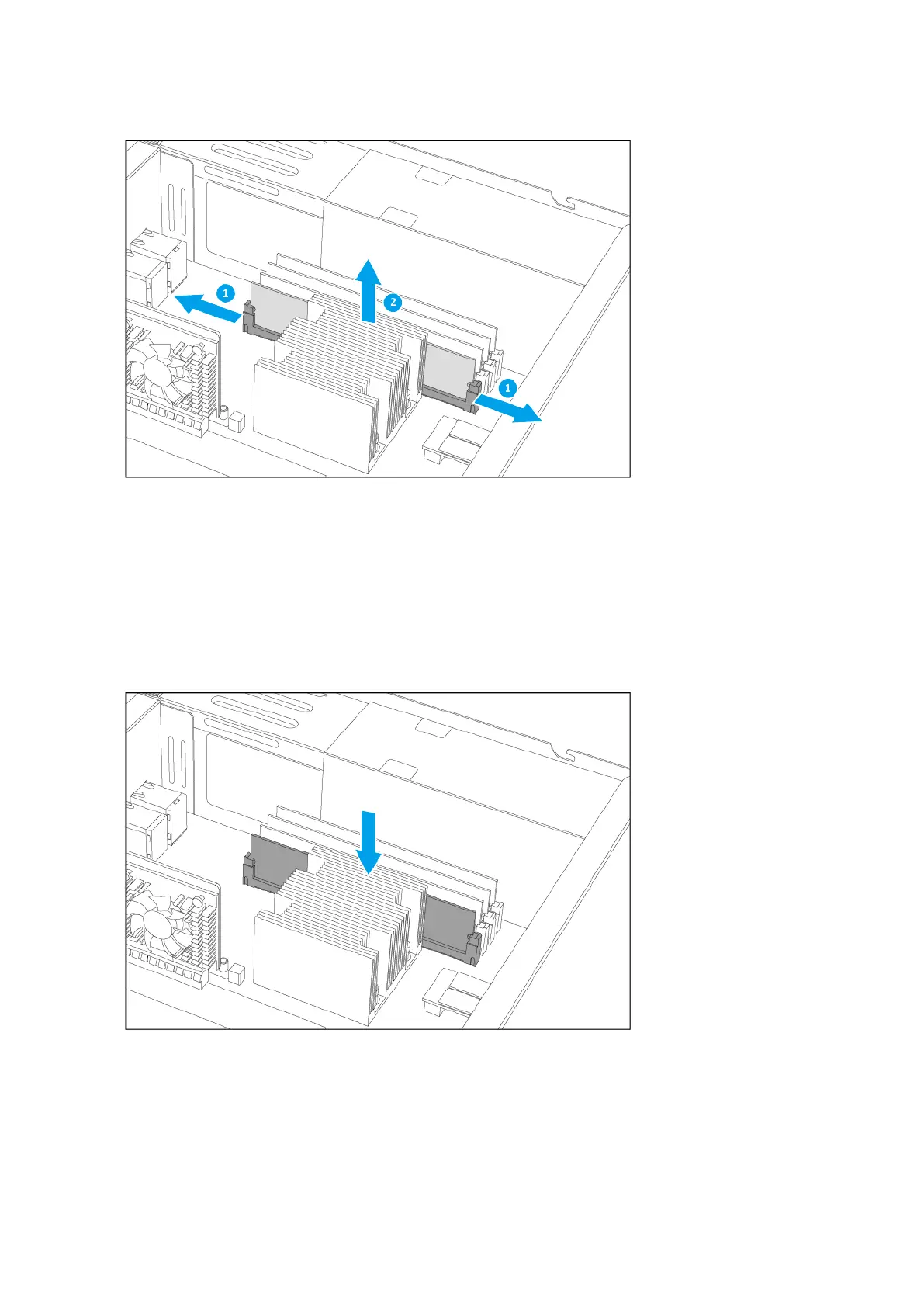

3. Install a new module.
a. Align the notch with the ridge in the slot.
b. Insert the module into the slot.
c. Verify that the metal connectors are completely inserted into the slot.
d. Carefully press down on the module until the retention clips lock the module into place.
4. Attach the case cover.
For details, see Attaching the Case Cover.
5. Verify that the module is recognized by the NAS.
a. Log on to QTS as administrator.
TS-1886XU-RP User Guide
Installation and Configuration 23
