3. Installation and Configuration
This chapter provides specific hardware and firmware installation and configuration steps.
Hardware Installation
This section provides information on installing drives, memory modules, and expansion cards.
Drive Installation
The TS-453BT3 is compatible with 3.5-inch and 2.5-inch hard drives, 2.5-inch solid state drives, and M.2
solid state drives.
Installing 3.5-inch Hard Drives on 3.5-inch Trays
Warning
Installing a drive deletes all data on the drive.
Observe electrostatic discharge (ESD) procedures to avoid damage to components.
1. Power off the NAS.
2. Remove the front cover.

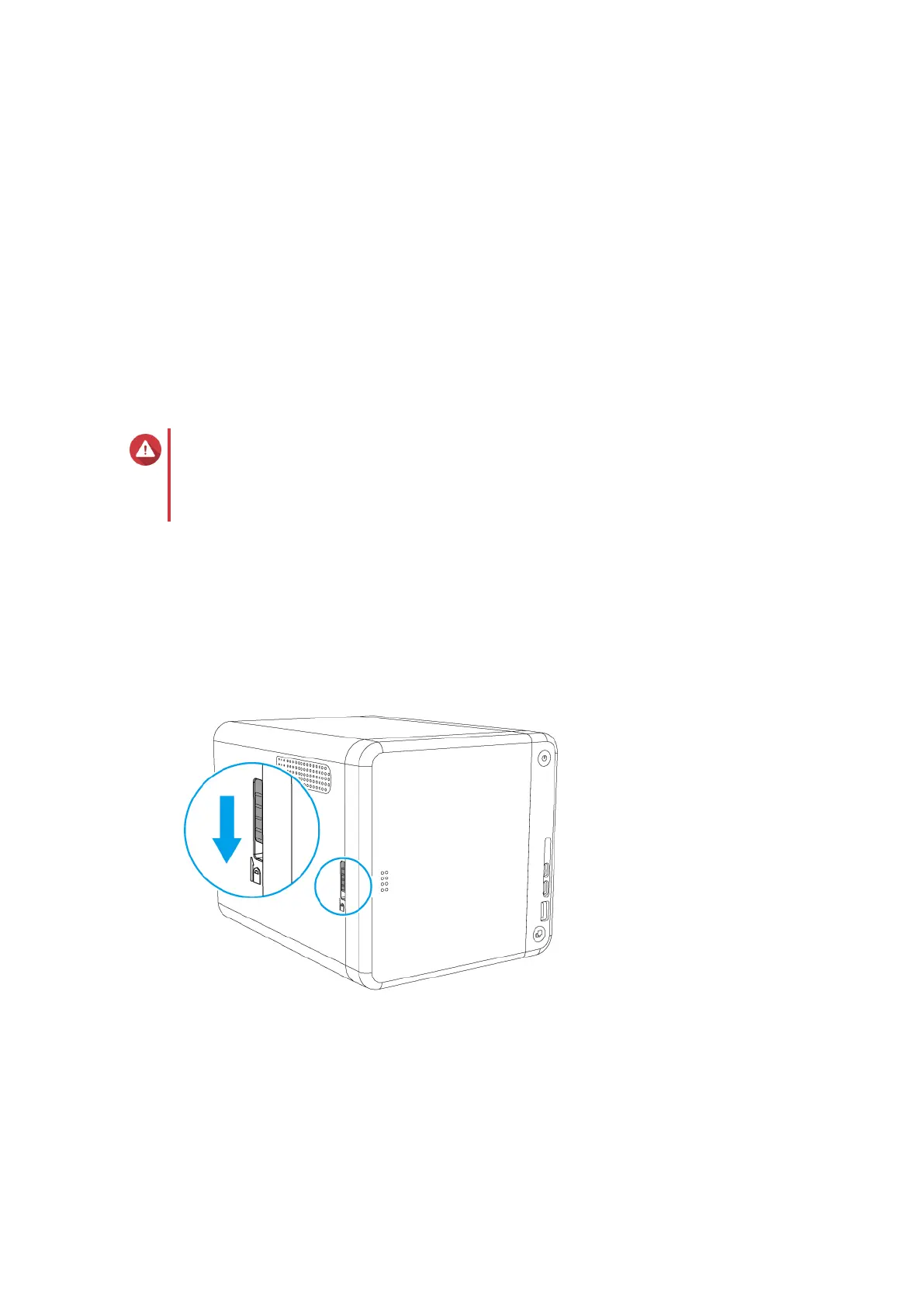

a. Locate the lock on the left side of the NAS.
b. Slide the lock down to release the cover.
c. Slide the cover to the left and then pull.
TS-453BT3 User Guide
Installation and Configuration 11

Other manuals for QNAP TS-453BT3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the QNAP TS-453BT3 and is the answer not in the manual?

QNAP TS-453BT3 Specifications

General IconGeneral
SteppingB1
Tjunction105 °C
Processor codeSR2Z9
Processor cache2 MB
Processor cores4
Processor modelJ3455
System bus rate- GT/s
Processor familyIntel® Celeron®
Processor socketBGA 1296
Processor codenameApollo Lake
Processor frequency1.5 GHz
Processor cache typeSmart Cache
Processor lithography14 nm
Processor manufacturerIntel
Processor package size24 x 31 mm
CPU configuration (max)1
Conflict-Free processorYes
PCI Express slots version2.0
Processor boost frequency2.3 GHz
Processor operating modes64-bit
ECC supported by processorNo
PCI Express configurations1x2+2x1, 4x1
Thermal Design Power (TDP)10 W
On-board graphics card modelIntel® HD Graphics 500
Maximum internal memory supported by processor8 GB
Memory slots2 x SO-DIMM
Internal memory typeDDR3L
RAID levels0, 1, 5, 6, 10
Storage drive size- \
Storage drive capacity0 GB
Supported file systemsFAT32, HFS+, NTFS, ext3, ext4
Storage drive interface-
Number of M.2 (M & B) slots2
Storage drive sizes supported2.5, 3.5 \
Supported storage drive typesHDD & SSD
Total installed storage capacity0 TB
Number of storage drives installed0
Supported storage drive interfacesSerial ATA, Serial ATA II, Serial ATA III
Ethernet LAN data rates1000, 10000 Mbit/s
Ethernet LAN data rate supported (max)10000 Mbit/s
HDMI version1.4b
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Cables includedAC, LAN (RJ-45)
Number of screws28
Chassis typeTower
Cooling typeActive
Display typeOLED
Fan diameter120 mm
Product colorBlack
LED indicatorsHDD, LAN, Status, USB
Number of fans1 fan(s)
Cable lock slot typeKensington
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)5 - 95 %
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power supply locationExternal
Power consumption (typical)38.101 W
Power supply unit (PSU) capacity120 W
TypeNAS
Device classHome & Home Office
Share folderCIFS/SMB, FTP, WebDAV
Backup featuresCloud, iSCSI LUN
Browser supportedApple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
Security algorithms256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Operating system version5.0.0
Operating system installedQNAP Turbo System
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supportedWindows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supportedWindows 10, Windows 7, Windows 8
Number of execution units12
Maximum number of PCI Express lanes6
Memory types supported by processorDDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM
Memory channels supported by processorDual
Intel Identity Protection Technology version1.00
Intel Small Business Advantage (SBA) version0.00
On-board graphics card base frequency250 MHz
On-board graphics card burst frequency750 MHz
Processor ARK ID95594
Harmonized System (HS) code84714100
Weight and Dimensions IconWeight and Dimensions
Depth226 mm
Width170 mm
Height168 mm
Weight2510 g
