QNAP TS-453BT3 User Manual

No. Component No. Component
1 10GBASE-T RJ-45 port 6 HDMI ports
2 Reset button 7 USB 3.0 ports
3 3.5 mm dynamic microphone jacks 8 Gigabit RJ-45 ports
4 Kensington security slot 9 Power input
5 3.5 mm speaker jack - -
Right Panel
Note
The image does not include the chassis.

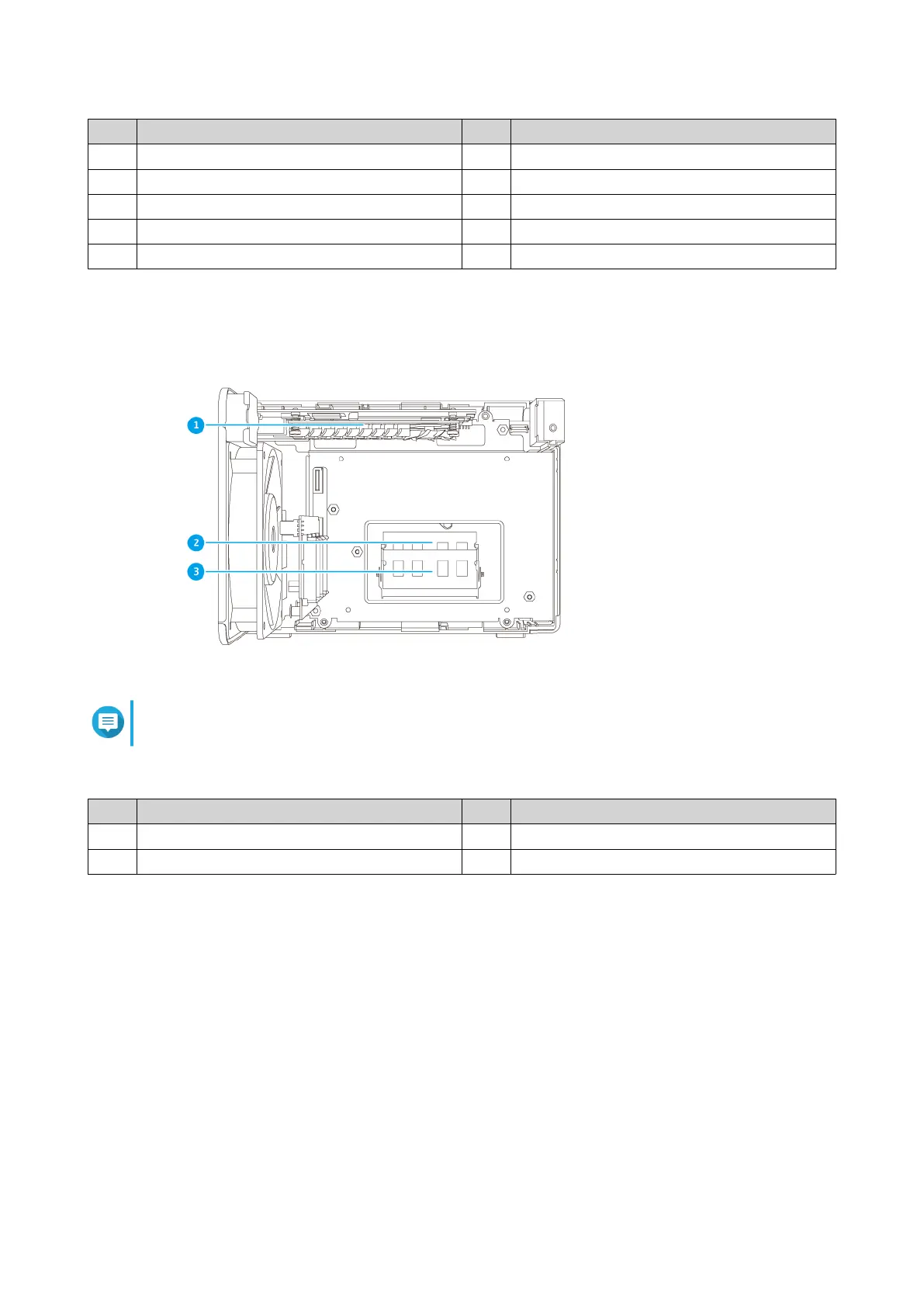

No. Component No. Component
1 QM2 card 3 Memory slot 2
2 Memory slot 1 - -
Front Drive Numbering
TS-453BT3 User Guide
Product Overview 8

QNAP TS-453BT3 Specifications

General

Stepping	B1
Tjunction	105 °C
Processor code	SR2Z9
Processor cache	2 MB
Processor cores	4
Processor model	J3455
System bus rate	- GT/s
Processor family	Intel® Celeron®
Processor socket	BGA 1296
Processor codename	Apollo Lake
Processor frequency	1.5 GHz
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor manufacturer	Intel
Processor package size	24 x 31 mm
CPU configuration (max)	1
Conflict-Free processor	Yes
PCI Express slots version	2.0
Processor boost frequency	2.3 GHz
Processor operating modes	64-bit
ECC supported by processor	No
PCI Express configurations	1x2+2x1, 4x1
Thermal Design Power (TDP)	10 W
On-board graphics card model	Intel® HD Graphics 500
Maximum internal memory supported by processor	8 GB
Memory slots	2 x SO-DIMM
Internal memory type	DDR3L
RAID levels	0, 1, 5, 6, 10
Storage drive size	- \
Storage drive capacity	0 GB
Supported file systems	FAT32, HFS+, NTFS, ext3, ext4
Storage drive interface	-
Number of M.2 (M & B) slots	2
Storage drive sizes supported	2.5, 3.5 \
Supported storage drive types	HDD & SSD
Total installed storage capacity	0 TB
Number of storage drives installed	0
Supported storage drive interfaces	Serial ATA, Serial ATA II, Serial ATA III
Ethernet LAN data rates	1000, 10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
HDMI version	1.4b
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Cables included	AC, LAN (RJ-45)
Number of screws	28
Chassis type	Tower
Cooling type	Active
Display type	OLED
Fan diameter	120 mm
Product color	Black
LED indicators	HDD, LAN, Status, USB
Number of fans	1 fan(s)
Cable lock slot type	Kensington
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power supply location	External
Power consumption (typical)	38.101 W
Power supply unit (PSU) capacity	120 W
Type	NAS
Device class	Home & Home Office
Share folder	CIFS/SMB, FTP, WebDAV
Backup features	Cloud, iSCSI LUN
Browser supported	Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
Operating system version	5.0.0
Operating system installed	QNAP Turbo System
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Number of execution units	12
Maximum number of PCI Express lanes	6
Memory types supported by processor	DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM
Memory channels supported by processor	Dual
Intel Identity Protection Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
On-board graphics card base frequency	250 MHz
On-board graphics card burst frequency	750 MHz
Processor ARK ID	95594
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	226 mm
Width	170 mm
Height	168 mm
Weight	2510 g
Package weight	4050 g
