QNAP TS-53E Series Repair Manual

Important
Recommended torque values are provided for electric screwdrivers. To avoid damage to the
screw or component, the actual torque setting should not exceed ± 0.5 kgf.cm (0.43 lbf.in) of
the recommended value, unless specied otherwise.

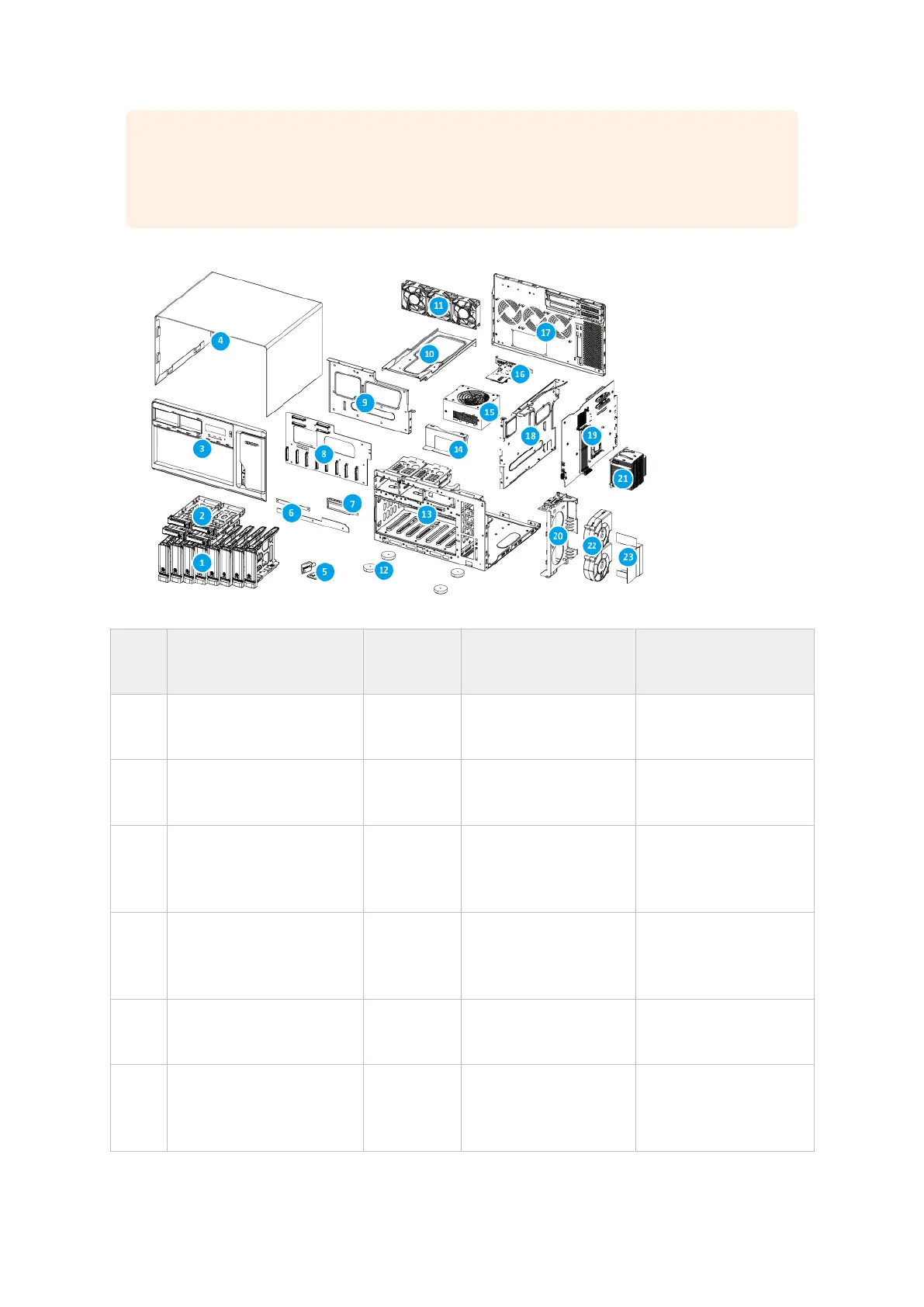

No. Component
(Quantity)
Screw Type
(Quantity)
Screwdriver
(Torque)
Attached To
1 Drive tray (3.5-inch)
(8)
- - -
2 Drive tray (2.5-inch)
(4)
- - -
3 Front panel
(1)
Pan head
M3x5
(6)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Chassis
4 Case cover
(1)
Flat head
M3x4
(7)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Rear panel
5 Drive tray key
(2)
- - -
6 LED circuit board
(2)
Pan head
M3x5
(5)
Phillips #2
(5 kgf.cm / 4.34 lbf.in)
Front panel
| NAS Repair Manual
Category D NAS Models 137
