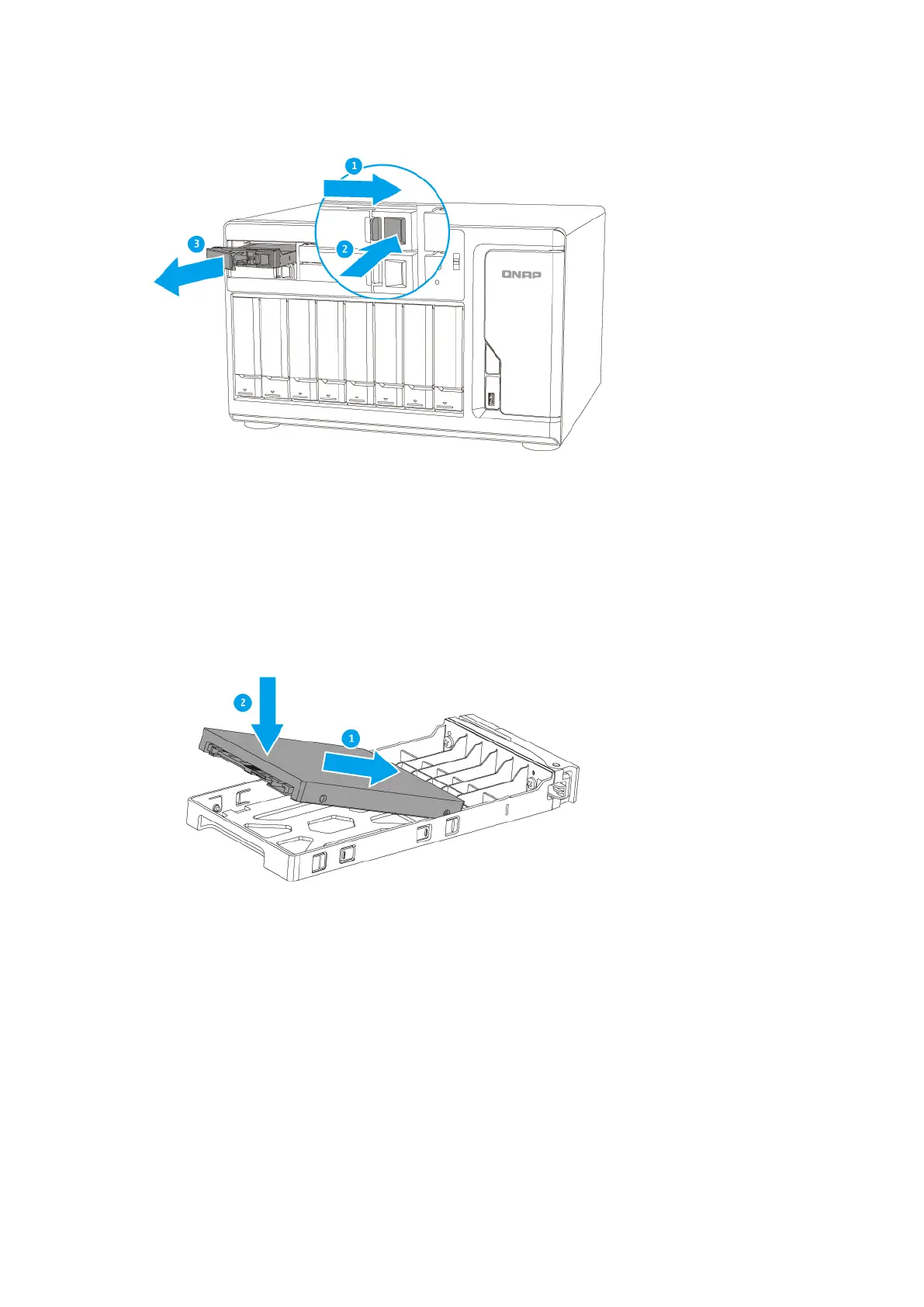

3. Install a drive on the drive tray.
a. Align the SATA connector on the drive with the opening at the end of the tray.
b. Place the drive on the tray.
4. Load the drive tray into the drive bay.
a. Insert the tray into the bay.
b. Push the handle.
c. Slide the lock to the left.
TS-x77 User Guide
Installation and Configuration 20
