QNAP TS 77 Series User Manual

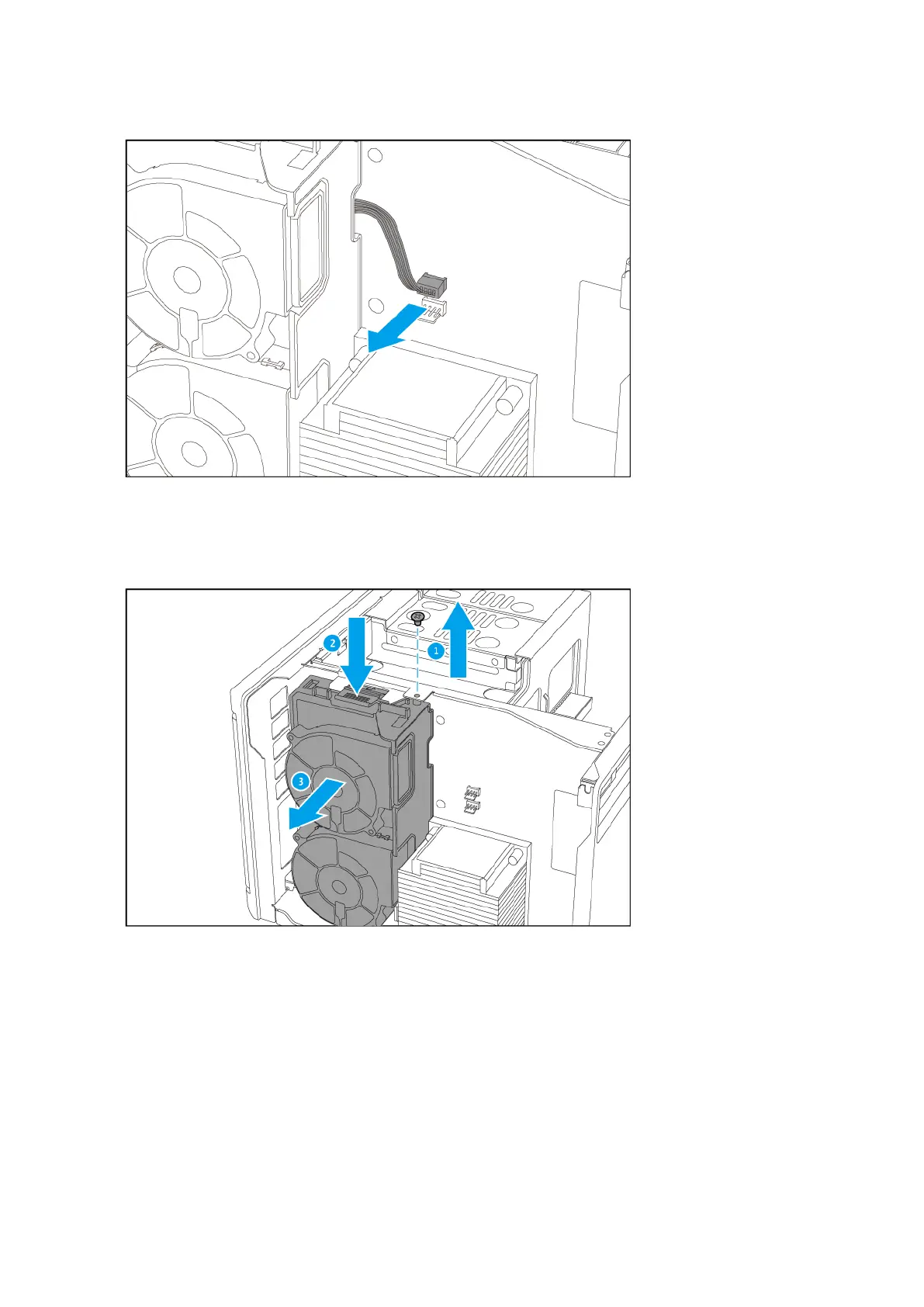

b. Remove the screw that secures the module to the chassis.
c. Press the clip and then pull the module away from the system board.
6. Remove an existing fan.
a. Remove the screws that secure the fan to the fan chassis.
TS-x77 User Guide
Installation and Configuration 40
