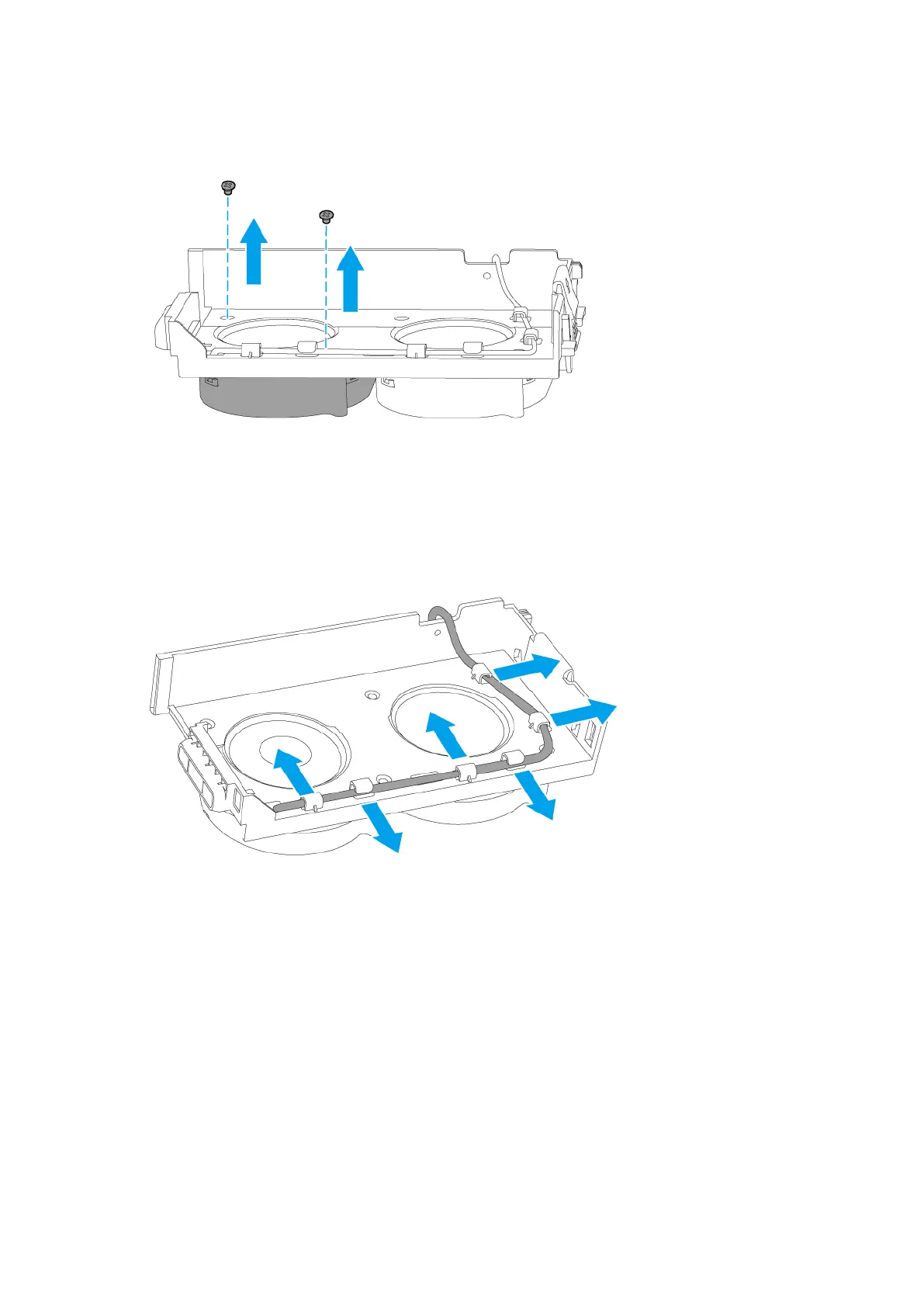

b. Remove the fan cable from the clips on the fan chassis.
c. Remove the fan from the fan chassis.
7. Install a new fan in the same location.
a. Position the fan chassis so that the cable clips face upward.
b. Align the holes on the fan with those on the fan chassis.
c. Attach the screws to secure the fan to the fan chassis.
TS-x77 User Guide
Installation and Configuration 41
