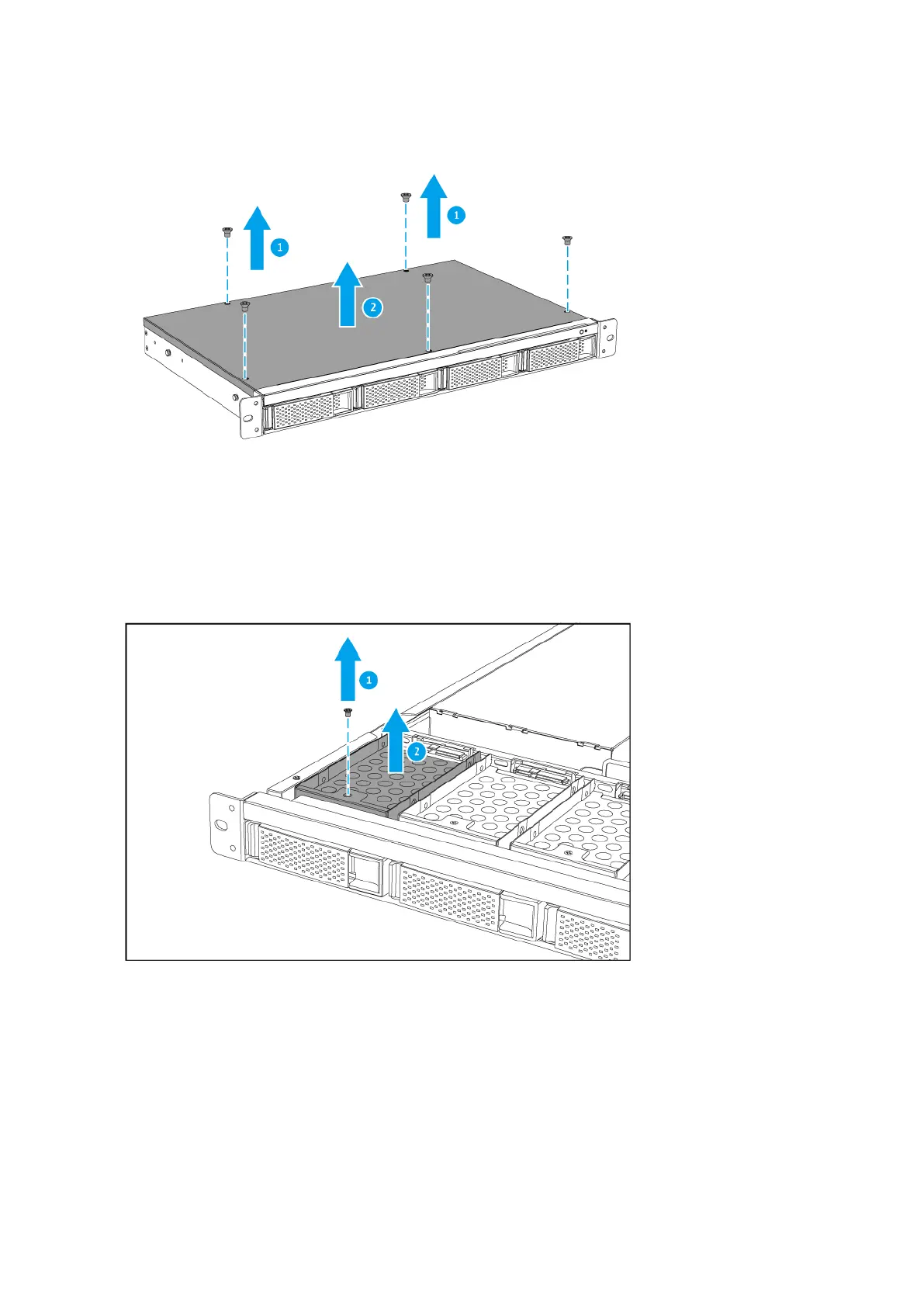

3. Remove the drive tray.
a. Remove the screws that secure the tray to the chassis.
b. Pull the tray out.
4. Install a drive on the tray.
a. Place the drive on the tray so that the holes on the sides of the drive are aligned with the holes on
the sides of the tray.
b. Attach the screws to further secure the drive.
TS-x77XU User Guide
Installation and Configuration 18
