Installing Handles on TS-977XU and TS-977XU-RP
Installing handles enables you to better grip and secure the NAS.
Handles on the TS-977XU and TS-977XU-RP require manual installation.
1. Power off the NAS.

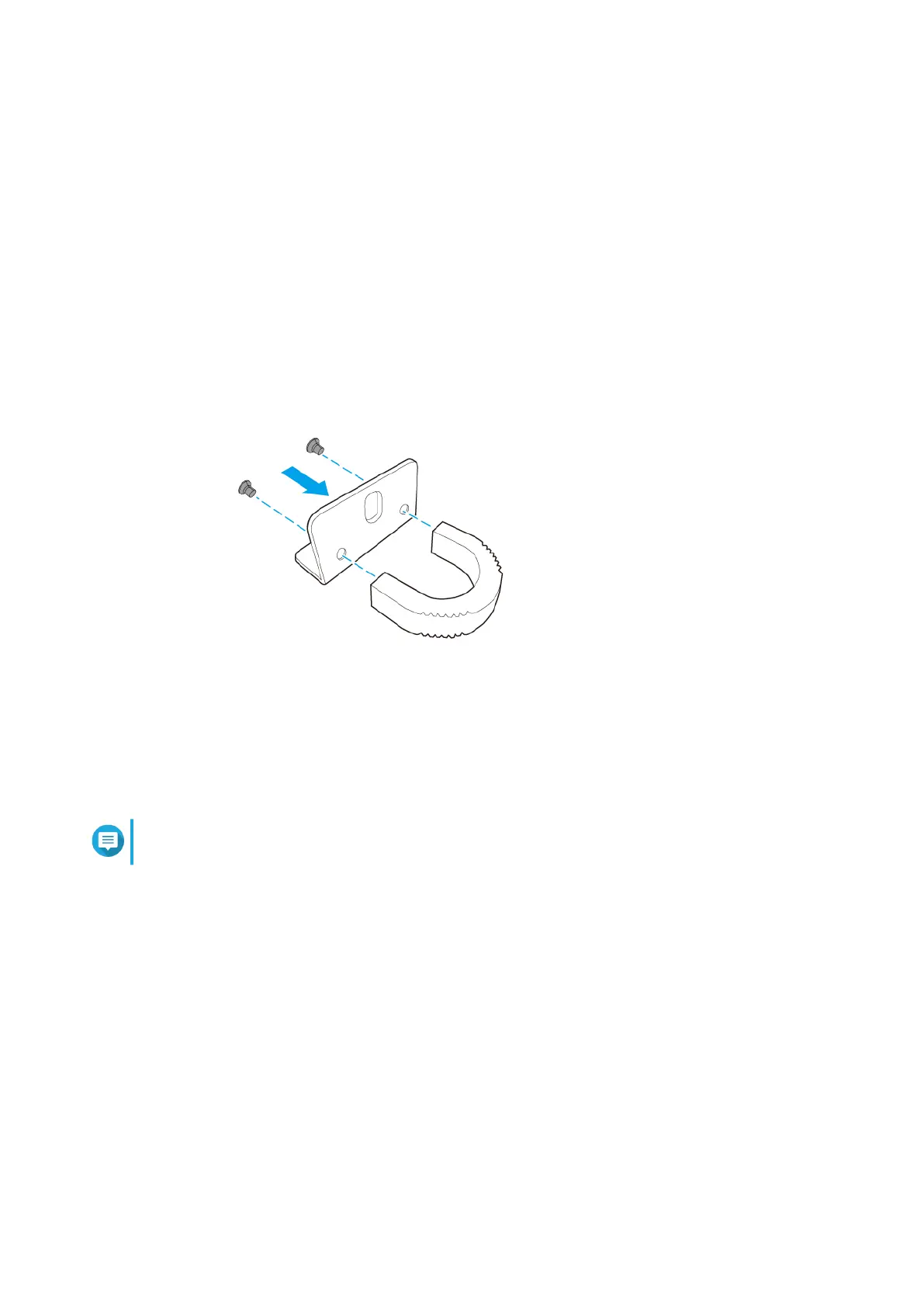

2. Install a handle on an angle bracket.
a. Align the openings on the handle with the two round screw holes on the angle bracket.
b. Attach the screws to lock the handle to the angle bracket.
3. Install the angle bracket on the device.
a. Align the holes on the angle bracket with the holes on the chassis.
Note
Ensure that the handle faces the same direction as the front panel.
b. Attach the screws.
TS-x77XU User Guide
Installation and Configuration 29
