2. Disconnect the power cord from the electrical outlet.
3. Disconnect all cables and external attachments.

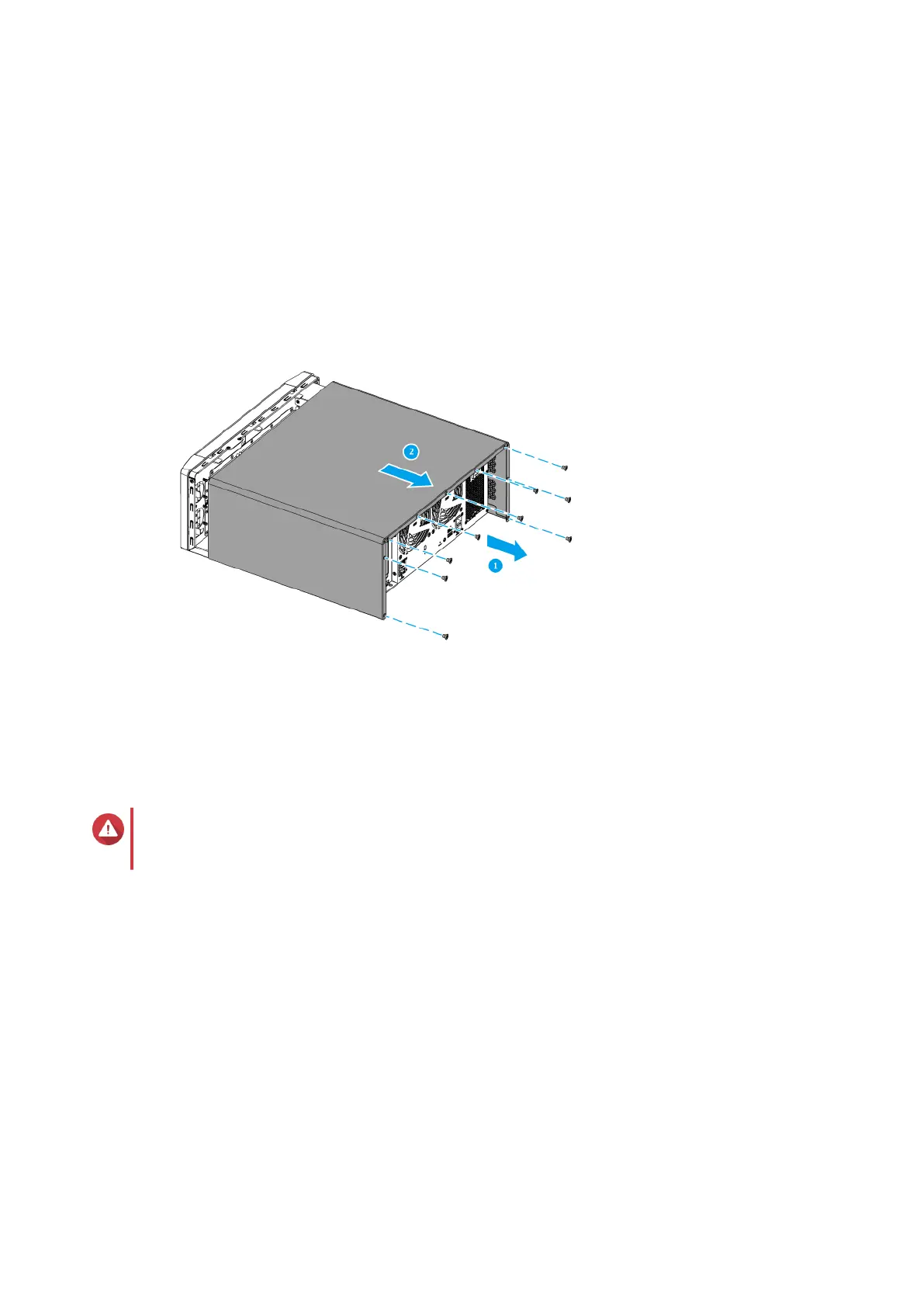

4. Remove the case cover.
a. Loosen the screws.
b. Slide the cover back.
c. Lift the cover o the device.
5. Remove an existing module.
a. Push the retention clips outward simultaneously to release the module.
b. Verify that the module is completely released from the slot.
Warning
Attempting to remove a module that is not completely released may damage the module and
the motherboard.
c. Hold the module by the edges.
d. Carefully slide the module out of the slot.
TS-h1290FX User Guide
Installation and Conguration 17
