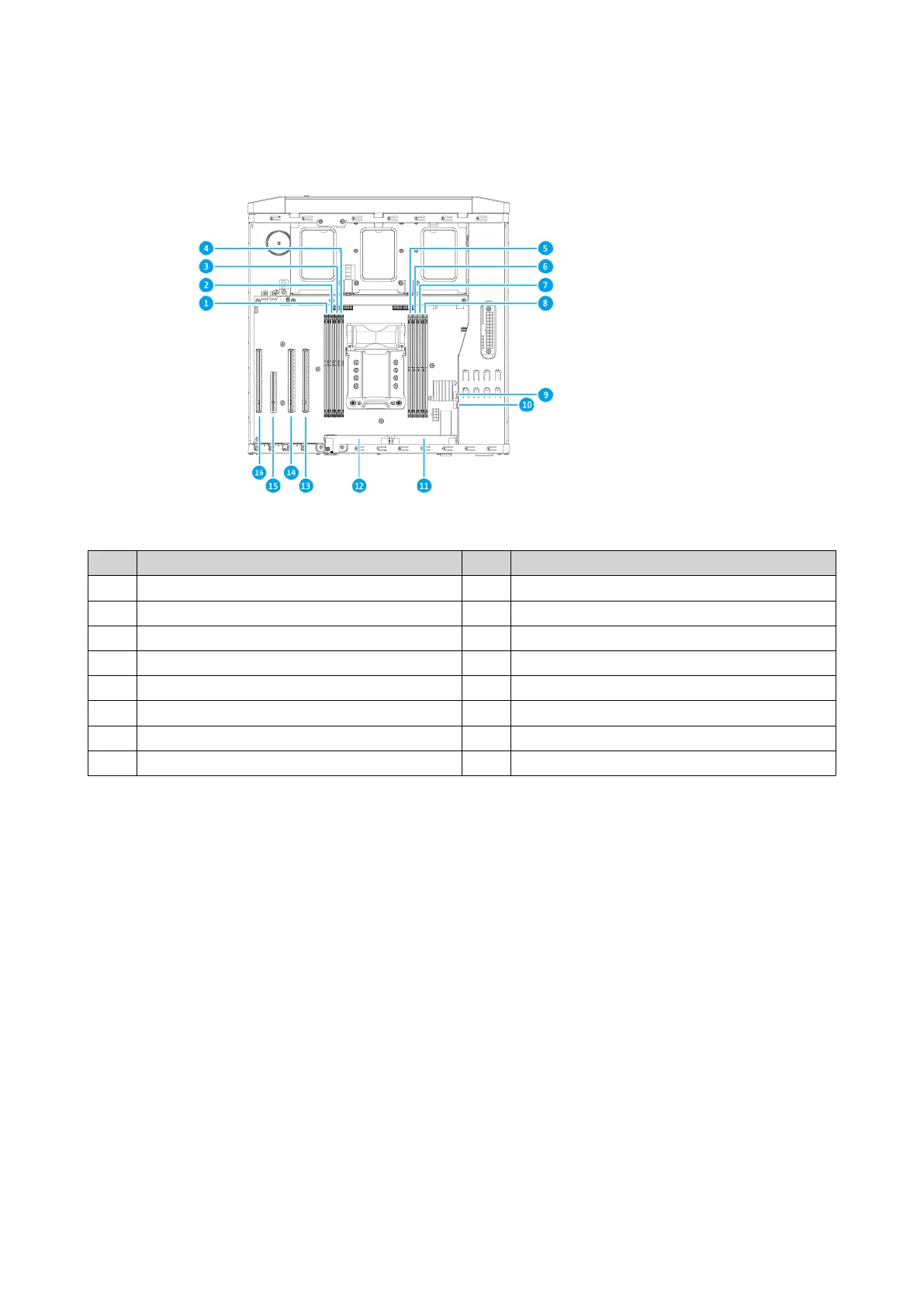

System Board
No. Component No. Component
1 Memory slot 8 (Channel D, DIMM 1) 9 Fan connector 1
2 Memory slot 7 (Channel C, DIMM 1) 10 Fan connector 2
3 Memory slot 6 (Channel B, DIMM 1) 11 System fan 1
4 Memory slot 5 (Channel A, DIMM 1) 12 System fan 2
5 Memory slot 4 (Channel E, DIMM 1) 13 PCIe slot 1 (PCIe 4.0 x16)
6 Memory slot 3 (Channel F, DIMM 1) 14 PCIe slot 2 (PCIe 4.0 x16)
7 Memory slot 2 (Channel G, DIMM 1) 15 PCIe slot 3 (PCIe 4.0 x8)
8 Memory slot 1 (Channel H, DIMM 1) 16 PCIe slot 4 (PCIe 4.0 x16)
TS-h1290FX User Guide
Product Overview 9
