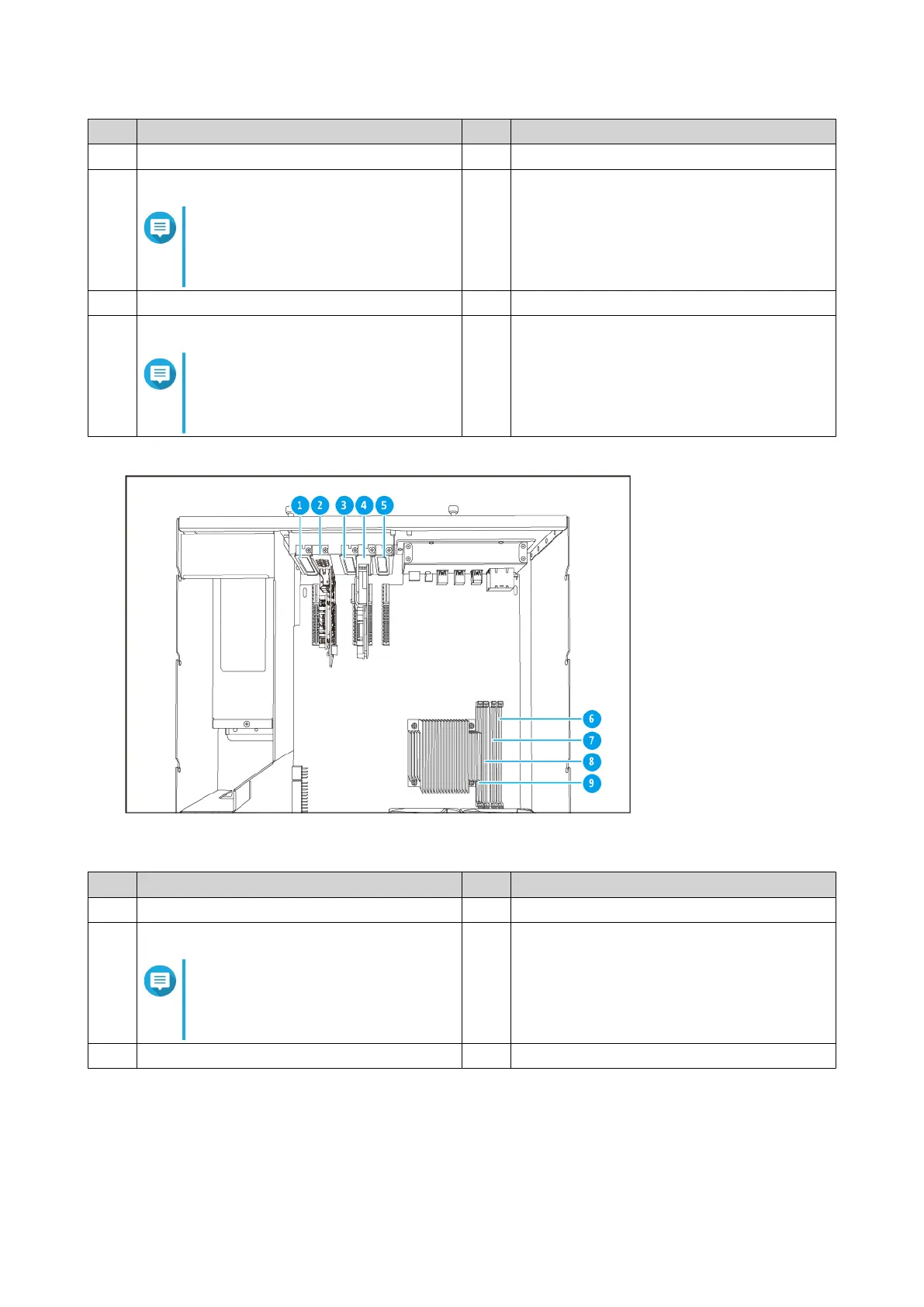

No. Component No. Component
1 PCIe slot 1 (PCIe 2.0 x4) 5 Memory slot 1 (Channel B, DIMM 2)
2 PCIe slot 2 (PCIe 3.0 x8)
Note
A dual-port 10 Gbase-T network
expansion card is pre-installed on
this PCIe slot.
6 Memory slot 2 (Channel B, DIMM 1)
3 PCIe slot 3 (PCIe 3.0 x4) 7 Memory slot 3 (Channel A, DIMM 2)
4 PCIe slot 4 (PCIe 3.0 x4)
Note
A dual-port 10 GbE SFP+ network
expansion card is pre-installed on
this PCIe slot.
8 Memory slot 4 (Channel A, DIMM 1)
TS-h2483XU-RP
No. Component No. Component
1 PCIe slot 1 (PCIe 2.0 x4) 6 Memory slot 1 (Channel B, DIMM 2)
2 PCIe slot 2 (PCIe 3.0 x4)
Note
A dual-port 10 Gbase-T network
expansion card is pre-installed on
this PCIe slot.
7 Memory slot 2 (Channel B, DIMM 1)
3 PCIe slot 3 (PCIe 2.0 x4) 8 Memory slot 3 (Channel A, DIMM 2)
TS-hx83XU-RP User Guide
Product Overview 11
