QRS Music Technologies 2000CD+ - Piano Hookup Procedures; Basic 2000 CD+ Piano Hookup

16
Optional External IR
Sensor
(Cat. No. 70394)
This can be mounted any
where on the piano to
make it more convenient
for you to use your
remote to control the
2000CD+. It plugs in
like a phone jack.
LINE OUT LINE IN
LEFT
RIGHT
ami/LEFT
RIGHT
ANTENNA
TO PROCESSOR BOARD
IN
ER
EXT. IR
SENSOR
AC POWER
90 TO 240 VAC,15VA max.MIDI OUT
MIDI IN
MIDI THRU
AMI OUT
QRS Pianomation 2000CD+
Serial:
QRS Music Inc.,P/N 75390
2011 Seward Avenue
Naples, FL 34109
Power Rating 90 - 240VAC 15 VA max.
CAUTION
DO NOT OPEN

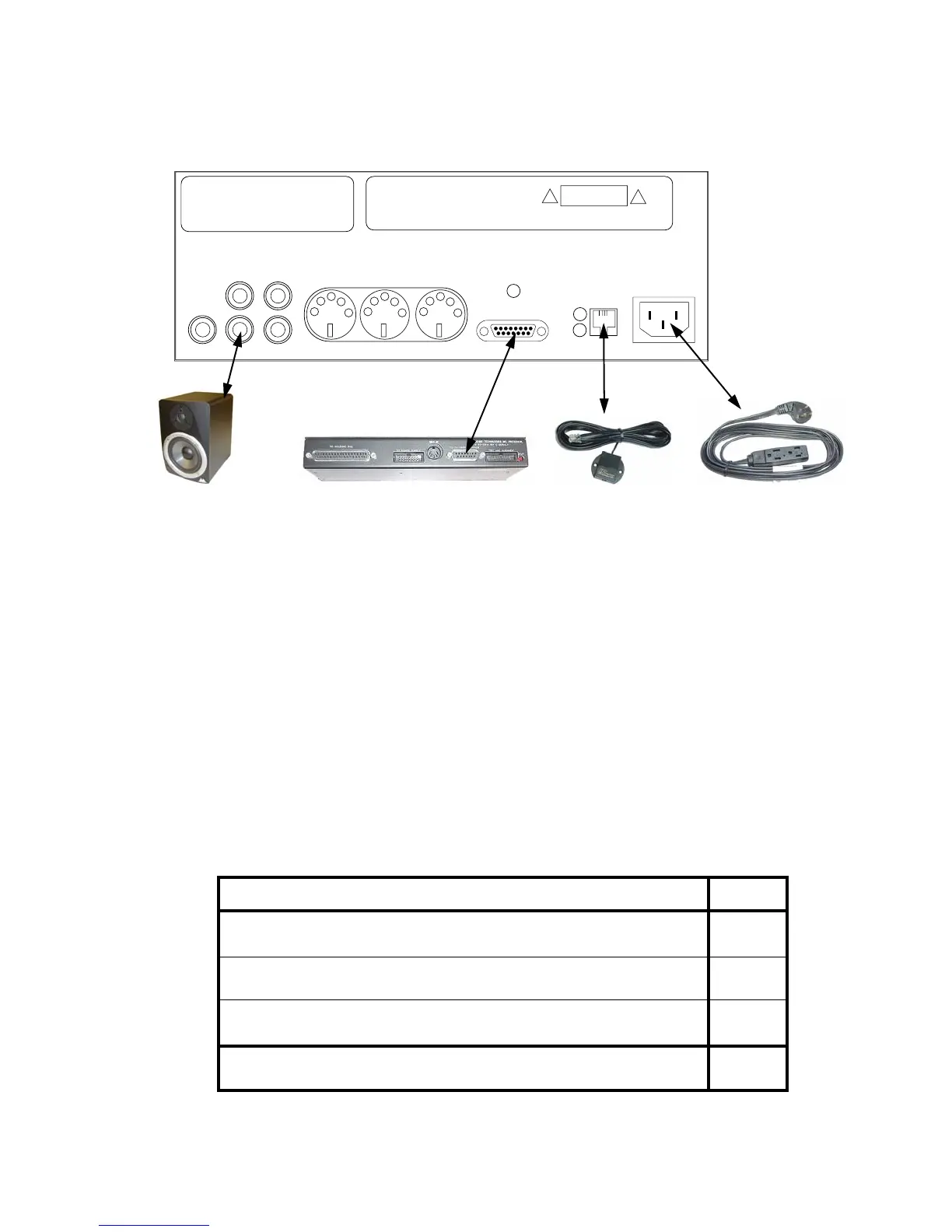

The self amplified speaker
(Cat. No. 71040) is
mounted on one of the
beams under the piano. It
is connected by a standard
RCA audio cable. The
power cord from the
speaker is plugged into the
Pianomation power
supply.
The 2000CD+ must be
connected to the
Pianomation Processor.
(cat. No. 60108) This is
done with a DB15 User
Box Cable (Cat. No.
811460). The Processor is
mounted on the one of the
beams under the piano.
This cord provides
power to the
2000CD+ and the
Pianomation System.
It must be plugged
into the extension
cord provided.
DO NOT PLUG IT
INTO THE
POWER SUPPLY.
Cables Required
Item Cat. No.
6 Ft Male RCA to Male RCA cable 70131
User Box Cable 70329
Power Cord 70214
Extension Cord 70348
Basic 2000CD+ Piano Hookup
