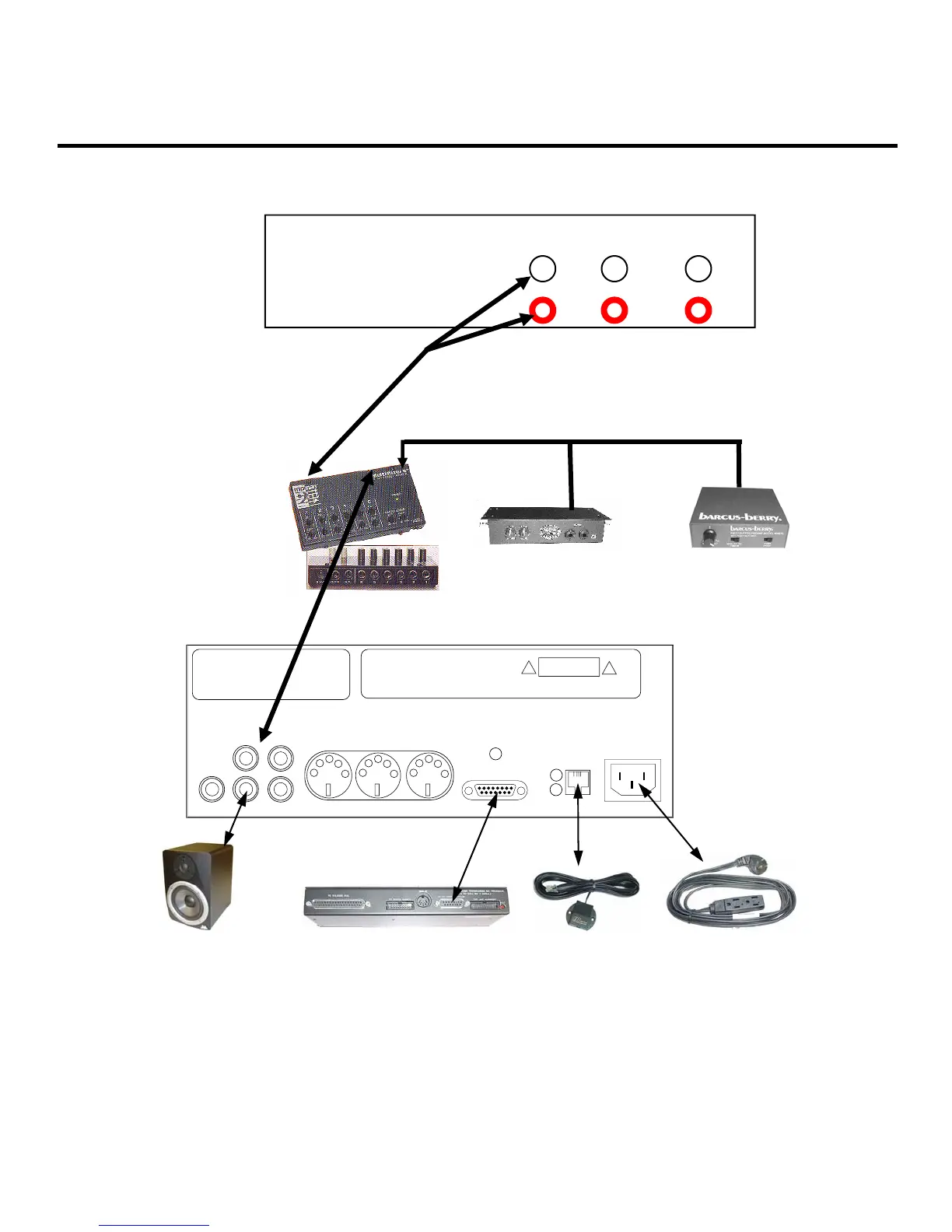

QRS Music Technologies 2000CD+ - How to MIC the Piano for Whole House Distribution

19
Optional External IR
Sensor
(Cat. No. 70394)
This can be mounted any
where on the piano to
make it more convenient
for you to use your
remote to control the
2000CD+. It plugs in like
a phone jack.
LINE OUT LINE IN
LEFT
RIGHT
ami/LEFT
RIGHT
ANTENNA
TO PROCESSOR BOARD
IN
ER
EXT. IR
SENSOR
AC POWER
90 TO 240 VAC,15VA max.MIDI OUT
MIDI IN
MIDI THRU
AMI OUT
QRS Pianomation 2000CD+
Serial:
QRS Music Inc.,P/N 75390
2011 Seward Avenue
Naples, FL 34109
Power Rating 90 - 240VAC 15 VA max.
CAUTION
DO NOT OPEN
The self amplified speaker
(Cat. No. 71040) is
mounted on one of the
beams under the piano. It
is connected by a standard
RCA audio cable. The
power cord from the
speaker is plugged into the
Pianomation power
supply.
The 2000CD+ must be
connected to the
Pianomation Processor.
(cat. No. 60108) This is
done with a DB15 User
Box Cable (Cat. No.
811460). The Processor
is mounted on the one of
the beams under the
piano.
This cord provides
power to the
2000CD+ and the
Pianomation System.
It must be plugged
into the extension
cord provided.
DO NOT PLUG IT
INTO THE
POWER SUPPLY.
Amplifier
CD IN AUX IN AUX IN
Sound Module Output or Piano Mic output
Audio Output plugs into the audio input of the mixer
Background Music plugs
into the mixer input.
Adding an external sound module or a microphone,
Adding an external sound module or a microphone,
Adding an external sound module or a microphone,
mixing with the background music to broadcast
mixing with the background music to broadcast
mixing with the background music to broadcast
through the home or establishment.
through the home or establishment.
through the home or establishment.
