QRS Music Technologies 2000CD+ - Computer Wireless Hookup

18
Optional External IR
Sensor
(Cat. No. 70394)
This can be mounted any
where on the piano to
make it more convenient
for you to use your
remote to control the
2000CD+. It plugs in
like a phone jack.
LINE OUT LINE IN
LEFT
RIGHT
ami/LEFT
RIGHT
ANTENNA
TO PROCESSOR BOARD
IN
ER
EXT. IR
SENSOR
AC POWER
90 TO 240 VAC,15VA max.MIDI OUT
MIDI IN
MIDI THRU
AMI OUT
QRS Pianomation 2000CD+
Serial:
QRS Music Inc.,P/N 75390
2011 Seward Avenue
Naples, FL 34109
Power Rating 90 - 240VAC 15 VA max.
CAUTION
DO NOT OPEN
The self amplified speaker
(Cat. No. 71040) is
mounted on one of the
beams under the piano. It
is connected by a standard
RCA audio cable. The
power cord from the
speaker is plugged into the
Pianomation power
supply.
The 2000CD+ must be
connected to the
Pianomation Processor.
(cat. No. 60108) This is
done with a DB15 User
Box Cable (Cat. No.
811460). The Processor
is mounted on the one of
the beams under the
piano.
This cord provides
power to the
2000CD+ and the
Pianomation System.
It must be plugged
into the extension
cord provided.
DO NOT PLUG IT
INTO THE
POWER SUPPLY.

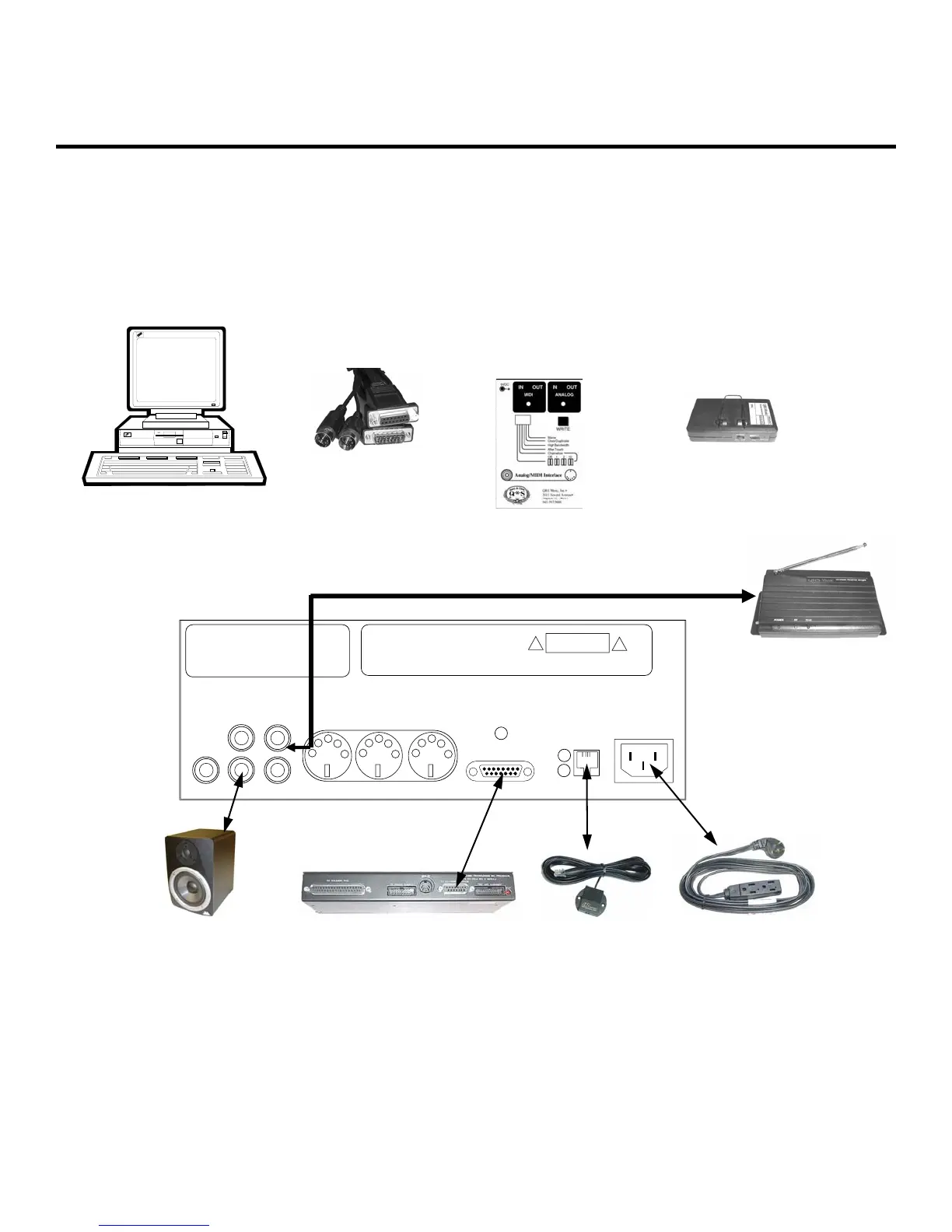

This hookup is used if you want to use a computer to operate your Pianomation System from another room. It will transmit the piano
signal to the piano wirelessly.
Parts required:
Cat. No. 50088 Transmitter / Receivers.
Cat. No. 50060 AMI
Cat. No. 50105 Female Midi Game Cable.
Mac or
PC
Step 1
Plug cable into
Sound Card
MIDI Game Cable
Cat. No. 50105
Step 2
Plug male MIDI
connector into
MIDI IN on the AMI
Step 3
Plug the audio
cable into the
tape out of the
AMI
AMI
Cat. No. 50060
Wireless
Transmitter /
Receiver
Cat. No. 50088
Step 4
Plug the audio
cable into the
Left channel in
on the 2000CD+.
Basic 2000CD+ Piano Hookup W/Wireless
Basic 2000CD+ Piano Hookup W/Wireless
Basic 2000CD+ Piano Hookup W/Wireless
Transmission From Your Computer.
Transmission From Your Computer.
Transmission From Your Computer.
