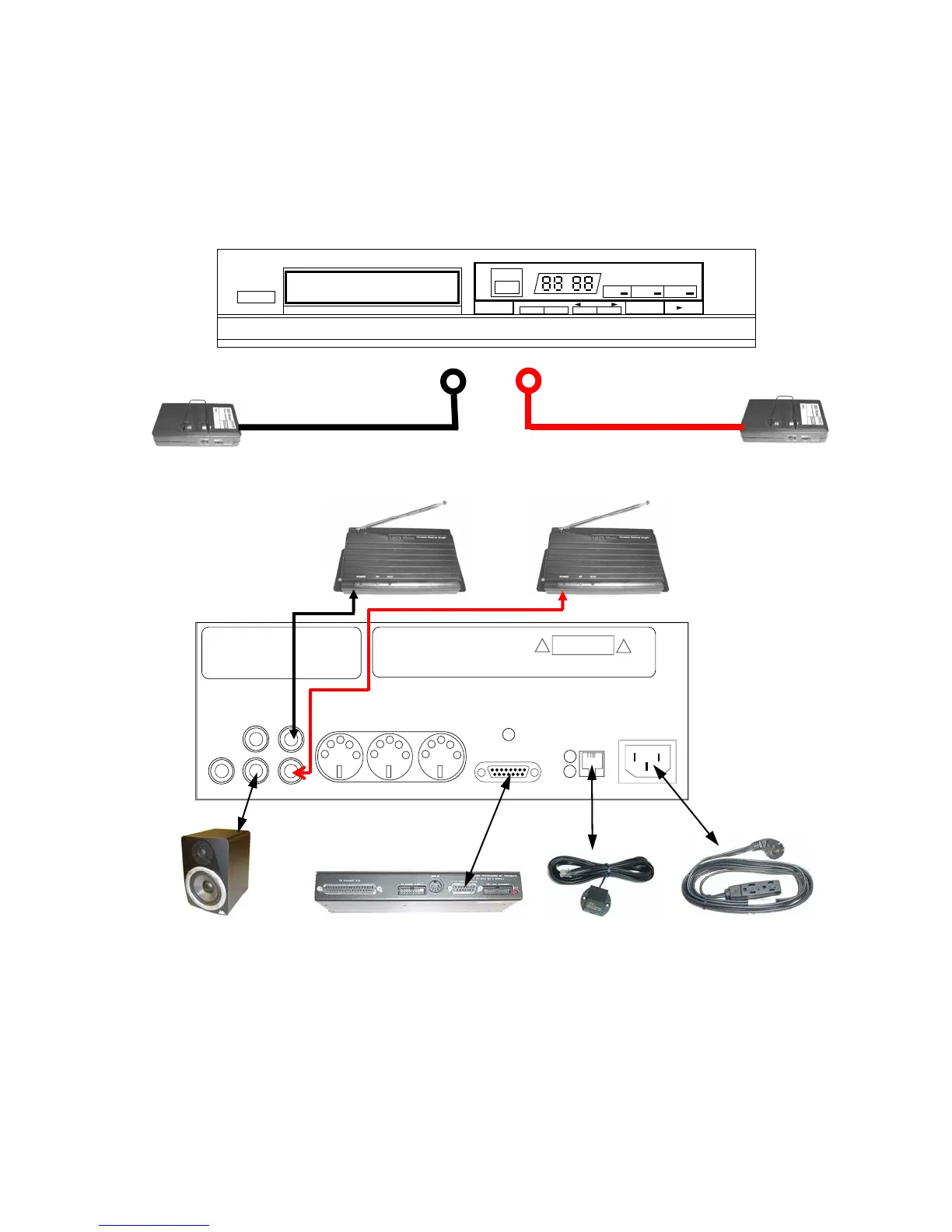

Basic 2000CD+ Piano Hookup W/Dual Wireless
Basic 2000CD+ Piano Hookup W/Dual Wireless
Basic 2000CD+ Piano Hookup W/Dual Wireless
This hookup is used if you want to use an external CD Player to operate your Pianomation System. It will
transmit the piano signal and the background music to the piano wirelessly.
Parts required: Cat. No. 50088 & 50089 Transmitters and Receivers.
A Smart Switch (Cat. No. 78000) can be used with a multi disc player if you want to mix normal CDs with
Pianomation CDs. This requires no button pushing to eliminate the piano signal from the speakers.
“V”
Optional External IR
Sensor
(Cat. No. 70394)
This can be mounted any
where on the piano to
make it more convenient
for you to use your
remote to control the
2000CD+. It plugs in
like a phone jack.
LINE OUT LINE IN
LEFT
RIGHT
ami/LEFT
RIGHT
ANTENNA
TO PROCESSOR BOARD
IN
ER
EXT. IR
SENSOR
AC POWER
90 TO 240 VAC,15VA max.MIDI OUT
MIDI IN
MIDI THRU
AMI OUT
QRS Pianomation 2000CD+
Serial:
QRS Music Inc.,P/N 75390
2011 Seward Avenue
Naples, FL 34109
Power Rating 90 - 240VAC 15 VA max.
CAUTION
DO NOT OPEN
The self amplified speaker
(Cat. No. 71040) is
mounted on one of the
beams under the piano. It
is connected by a standard
RCA audio cable. The
power cord from the
speaker is plugged into the
Pianomation power
supply.
The 2000CD+ must be
connected to the
Pianomation Processor.
(cat. No. 60108) This is
done with a DB15 User
Box Cable (Cat. No.
811460). The Processor
is mounted on the one of
the beams under the
piano.
This cord provides
power to the
2000CD+ and the
Pianomation System.
It must be plugged
into the extension
cord provided.
DO NOT PLUG IT
INTO THE
POWER SUPPLY.
Power
Remote
Sensor
TRACK NO. INDEX/PGM NO.
REPEAT MEMORY PLAY
OPEN/CLOSE
STOP /II
MIN SEC
REPEAT MEMORY MUSIC SKIP
REMOTE
CONTROL
Your CD Player with Left and Right Channel outputs
Left Channel
Right Channel
Wireless Transmitter /
Receiver “W” Channel
(Cat. No. 50089).
The Transmitter plugs into
the right channel output of
your CD Player and transmits
the background music to the
receiver which is mounted
under the piano.
The Receiver plugs into the
Right channel input on the
2000CD+.
“W”
Wireless Transmitter / Receiver “V” Channel
(Cat. No. 50088).
The Transmitter plugs into the Left channel
output of your CD Player and transmits the
piano signal to the receiver which is mounted
under the piano.
