TD-000077-00-K

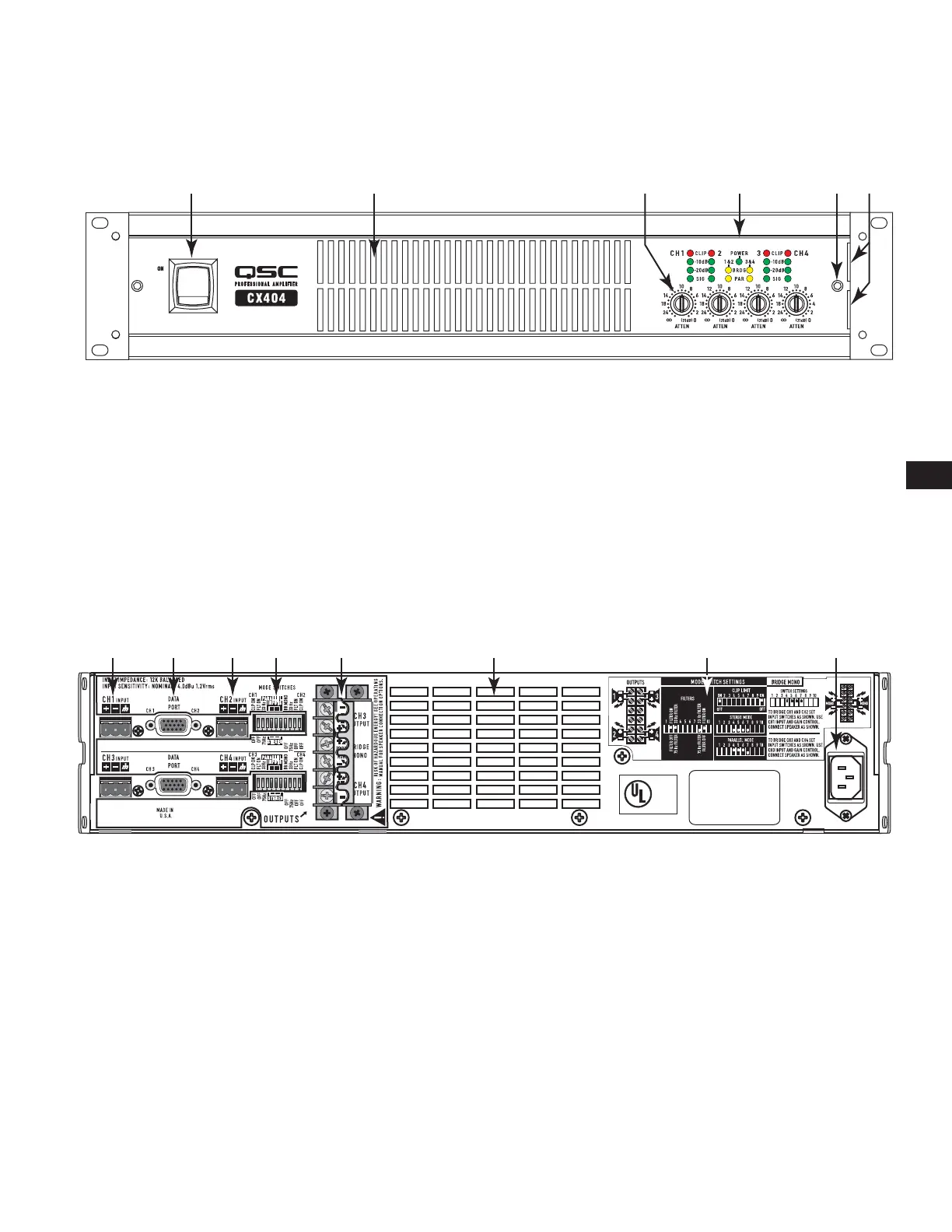

Front Panel
(CX404 shown in Figure 1, other models similar)
— Figure 1 —
12 3456
1. Power Switch
2. Cooling Air Exhaust Vents
3. Gain Controls
4. LED Indicators
5. Security Panel Retaining Screw
6. Security Panel Retaining Slots
Rear Panel
(CX404 shown Figure 2, other models similar, 2-Ch. models equipped with XLR inputs as well)
— Figure 2 —
1234 5 6 7 8
1. CH1 Terminal Block Input Connectors
2. DataPort Connector
3. CH2 Terminal Block Input Connectors
4. Mode Switches
5. Barrier Strip Output Connectors
6. Cooling Air Inlet Vents
7. Mode Switch Setting Diagrams
8. IEC Power Connector
