97
1001108-01-F
P P

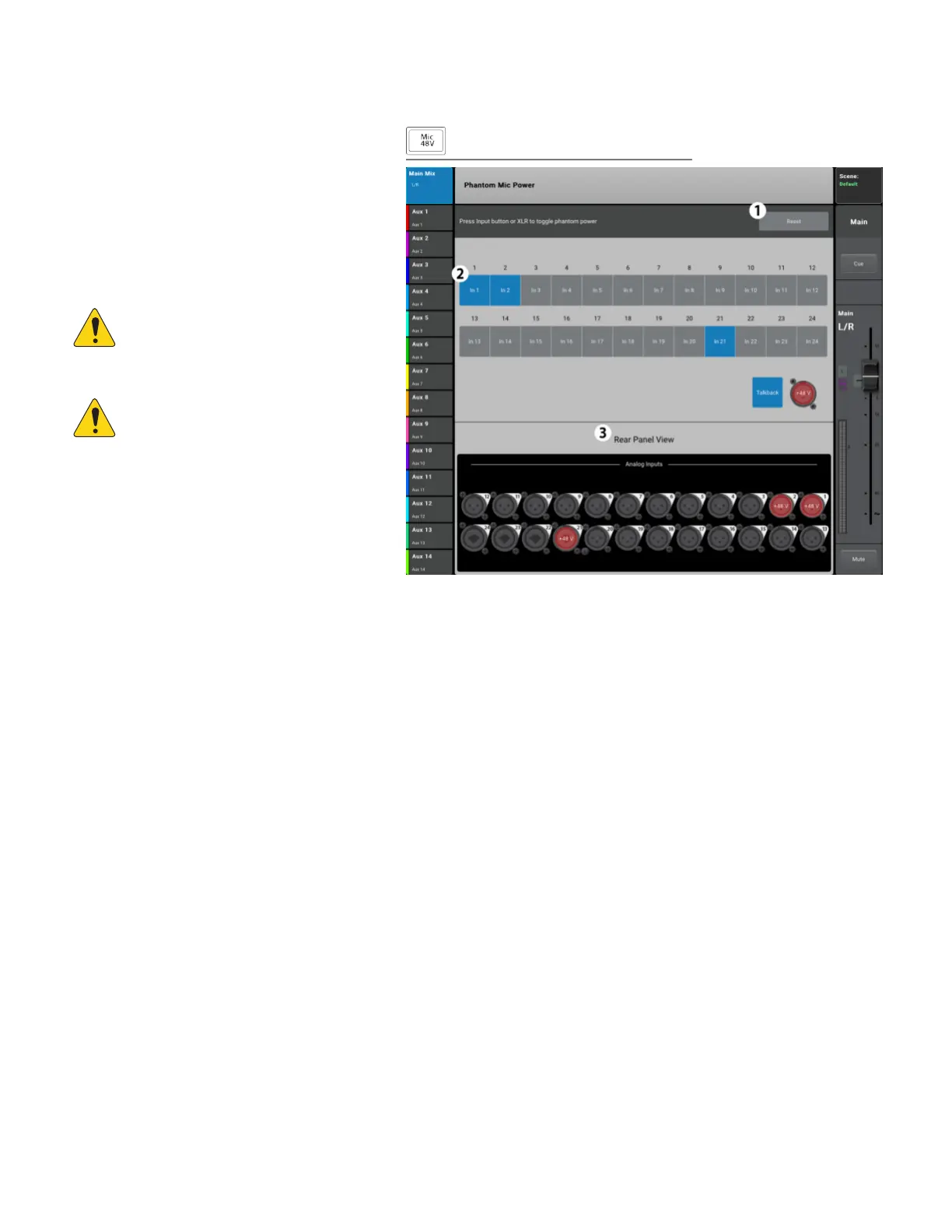

Supplies +48 VDC to XLR Inputs including Talkback.
1.
Reset –
Returns all settings to factory default
(all phantom power off).
2.
Input Channel buttons –
Touch
to enable or disable phantom power for the
channel.
3.
Rear Panel View XLRs –
Touch
to enable or disable phantom power for the
channel.
NOTE: Phantom power may also be
controlled from the Setup screen of each
inputchannel.
NOTE: It is good practice to turn off
phantom power when connecting or
disconnecting an input. “Hot patching” a
device can cause severe transients and
potentially damaging current surges.
Press
Mic 48V
