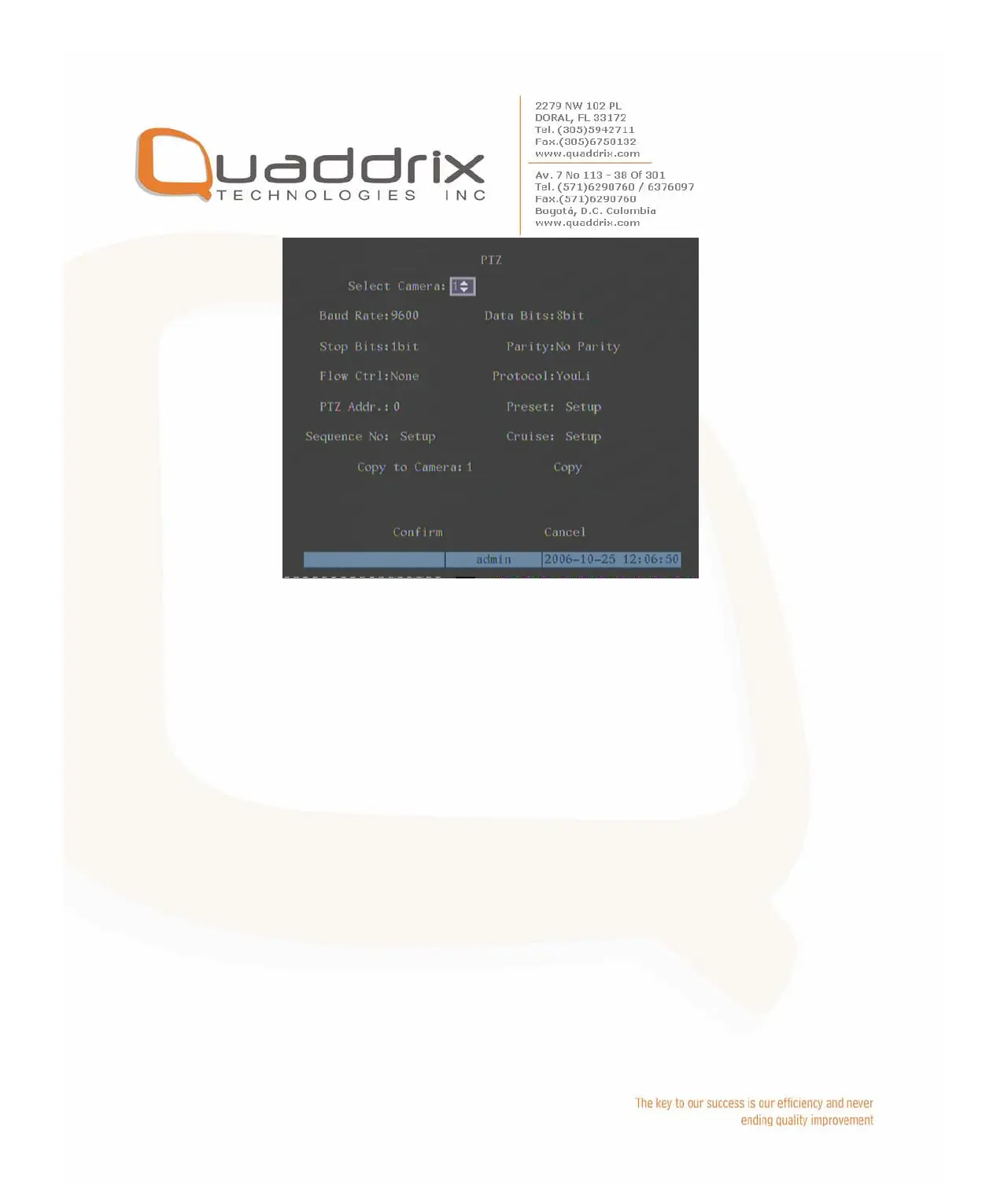

PTZ menu description
Select channel: Select one PTZ camera.
RS-485 parameters: Including baud rate, data bit, stop bit, parity, flow
control, etc. These parameters must be the same as those of PTZ.
Protocol.
PTZ address: Each PTZ has one different address.
PTZ type: DVR had the following PTZ protocol: YouLi, LinLin-1016, LinLin-
820, Pelco-p, DM DynaColor, HD600, JC-4116, Pelco-d WX, Pelco-D,
VCOM VC-2000, NetStreamer, SAE/YAAN, Samsung, Kalatel-312,
CELOTEX, TLPelco-p, TLHHX-2000, BBV, RM110, KC3360S, ACES, ALSON,
INV3609HD, Howell, Tc Pelco P, Tc Pelco D, AUTO-M, AUTO-H, ANTEN,
CHANGLIN, DeltaDome, XYM-12, ADR8060, EVI-D30, DEMO-SPEED, DM-
PELCO-D, ST832, LC-D2104, HUNTER, A01, TECHYIN, WEIHAN, LG, D-
MAX, Panasonic, KTD-348, infinova, PIH-7625, LCU, DennarDome, etc.
Other PTZ protocols will be added with the new firmware.
Note: In DVR “PTZ” menu, if you select Pelco-P protocol, when you setup PTZ
address, please plus or minus one compared with Camera ID. For example, if camera
