Quadra-Fire CB1200 - Minimum Opening for Masonry & Zero Clearance Fireplaces

10 7014-285C August 1, 2018
CB1200 Pellet Insert
C
D
A
B

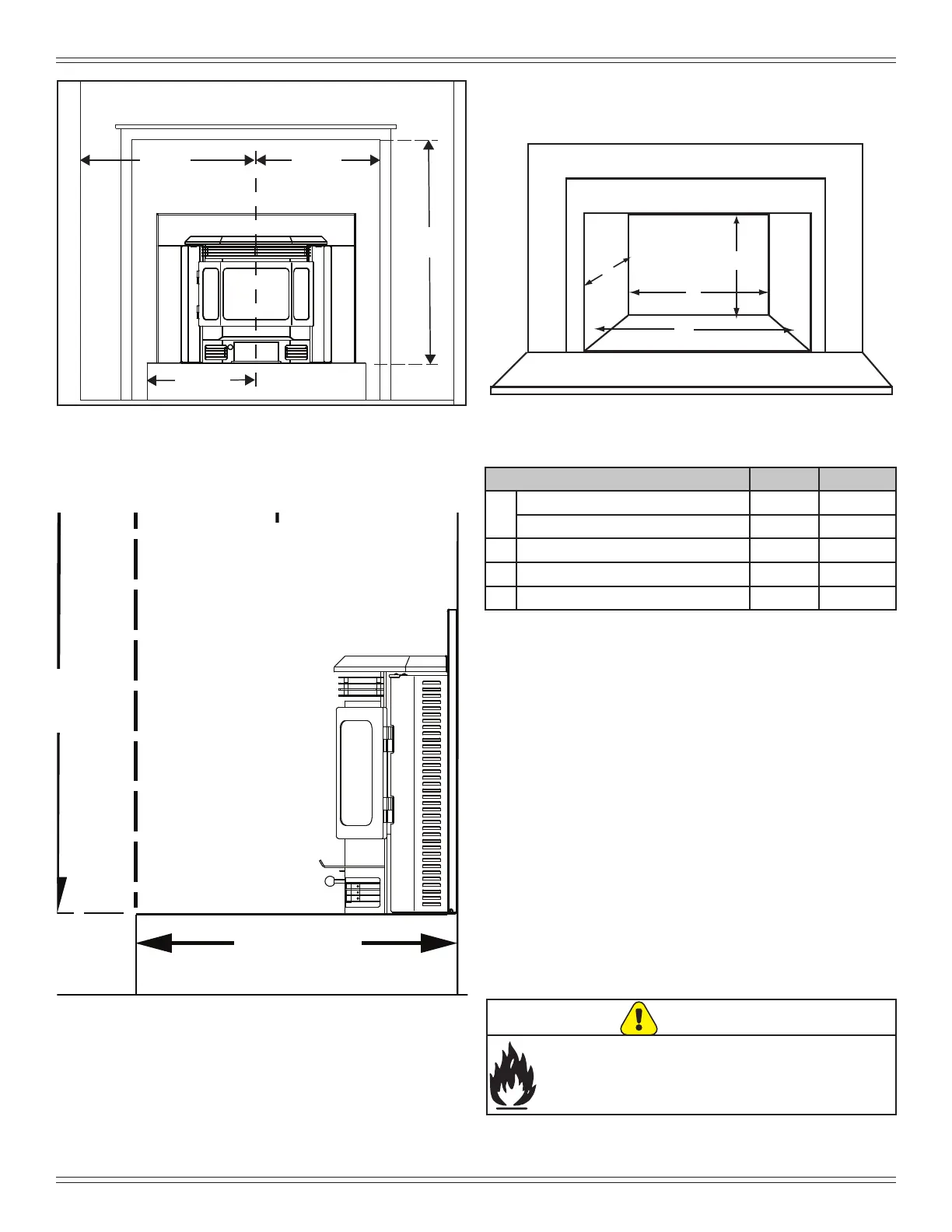

C. Minimum Opening for Masonry
& Zero Clearance Fireplaces
Figure 10.1
Figure 10.2
SIDE TRIM
HEARTH
EXTENSION
28-1/2 in
(724mm)
SIDE WALL
TOP TRIM
19-3/4 in
(502mm)
19-3/4 in
(502m)
18-1/4 in
(464mm)
Figure 10.3
FIREPLACE FRONT SURFACE
MANTEL
USA & CANADA
17 in (432mm)
37-1/2 in
(952mm)
12 in
max *
16
(406mm)
NOTE: Minimum opening dimensions include a 1/4” (6mm)
clearance around appliance.
Note: If trim measurement is over 3/4 in (19mm) in depth
use mantle or side clearances to combustibles.
Location Inches Millimeters
A
Height (Maximum Hopper Adjustment)*
22-1/4 565
Height (Minimum Hopper Adjustment)*
19-3/4 502
B Front Width 29-3/4 756
C Rear Width 22-1/2 572
D Depth 13-1/4 337
*Height: The Classic Bay 1200 Insert has the option of
an adjustable hopper from 22 inches for the maximum
to 19-1/2 inches for the minimum. Add a 1/4 inch to the
adjustment for clearances for any measurement in between
the maximum and the minimum height. The Maximum and
minimum are already calculated for you in the above table
for convenience.
D. Hearth Extension
Use a Type II non-combustible oor protector, extending
beneath the appliance and to the front, and to the sides as
indicated in sub-section E. Floor Protection on page 11.
The oor must be non-combustible or otherwise adequately
protected from radiant heat given o󰀨 by the appliance and
from sparks and falling embers. A layer of thin brick or
ceramic tile over a combustible oor is not su󰀩cient.
WARNING
Fire Risk.
Hearth pads must be installed exactly as specied.
High temperatures or hot embers may ignite
concealed combustibles.
