Quadra-Fire CB1200 - Thermostat Installation and Operation

26 7014-285C August 1, 2018
CB1200 Pellet Insert

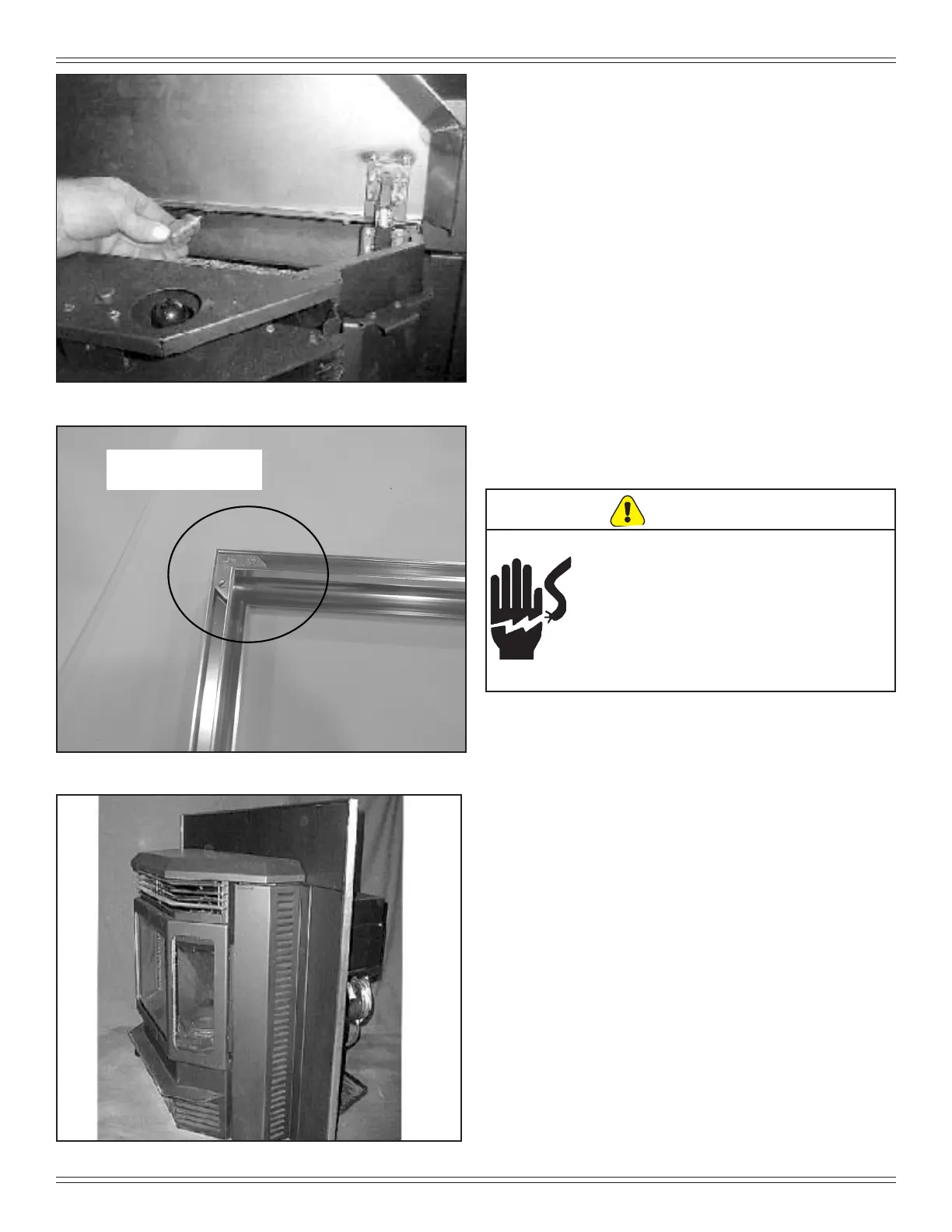

Figure 26.1
Figure 26.2 Completed View
View of "L" Bracket
installed
Figure 26.2
G. Thermostat Installation and Operation
Shock hazard.
• Do NOT remove grounding prong from
plug.
• Plug directly into properly grounded 3
prong receptacle.
• Route cord away from appliance.
• Do NOT route cord under or in front of
appliance.
CAUTION
The kit comes with a programmable wall thermostat and
25’ of thermostat wire. If you need to run more than 25’
make sure you use a continuous strand of 18 to 22 gauge
thermostat wire. For optimum performance your thermostat
should be:
• Mounted on an inside wall, approximately 5’ above the
oor
• Do not locate where there is poor air circulation such
as in a corner, alcove, behind doors, bookcase or other
objects
• Located away from drafts, direct sunlight, above a
lamp, television, radiator, a wall next to a window, or
direct heat from the appliance
• Avoid damp environments as this can lead to corrosion
that may shorten thermostat life
• If painting or construction work around, cover the
thermostat completely or wait until work is complete
before installation.
