28 7014-285C August 1, 2018
CB1200 Pellet Insert
H. Optional Log Set Placement Instructions
NOTE:
Due to the abrasive nature of a pellet appliance
re, the logs are not covered under warranty. Any
placement variation other than shown here can
cause excessive heat and shall void the appliance
warranty.

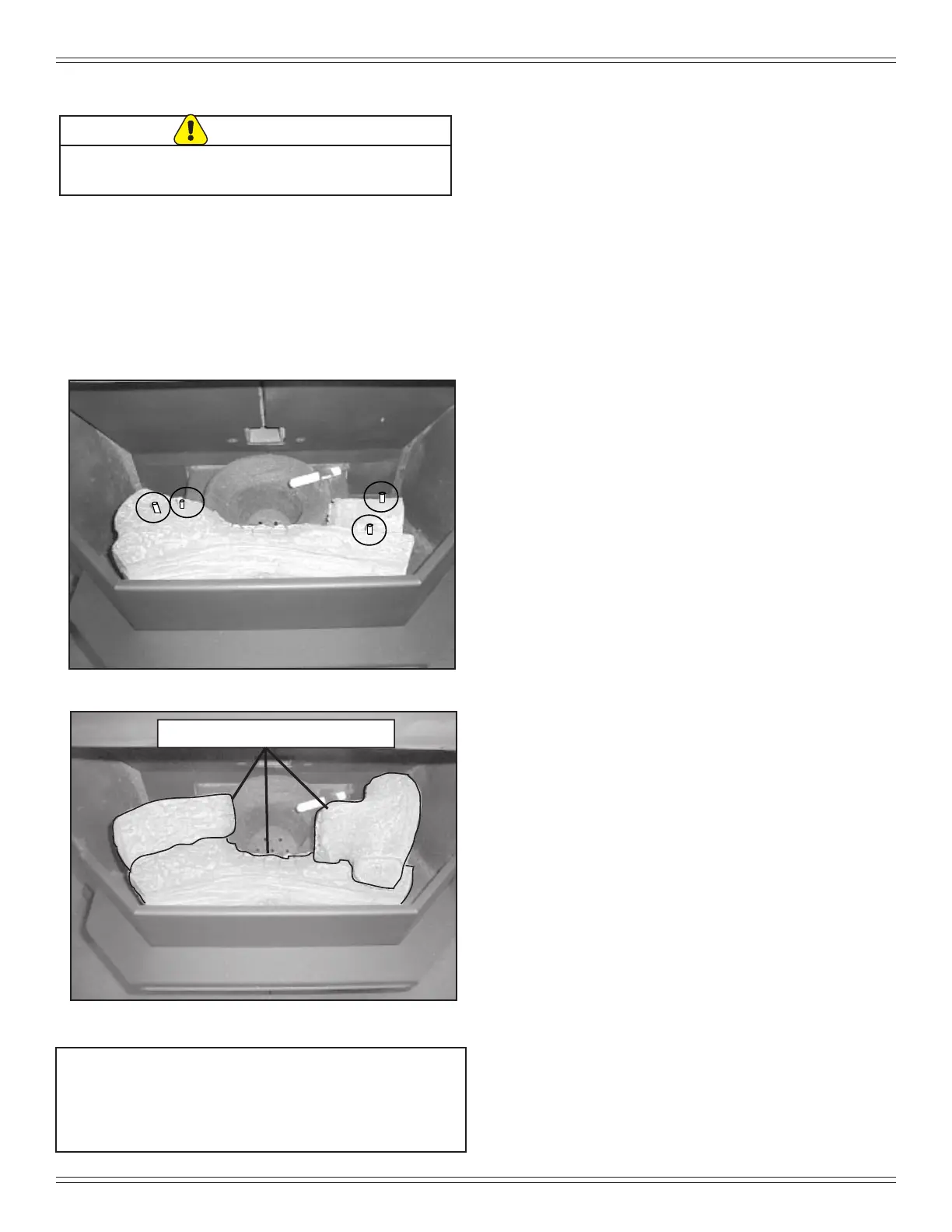

1. Place the front log in rst as shown in Figure 28.1
charred area surrounding re pot.
2. Set the left and right logs onto the front log, placing
the holes in the base of the left and right logs over the
locating pins in the front log. See Figure 28.2. Ensure
that the charred ends are facing the re pot.
LOCATING PINS
Charred Areas in the Back
Top Log
Right
Top Log, Left
Front Log
Figure 28.1
Figure 28.2
CAUTION
Logs are FRAGILE. Use extreme care when handling
or cleaning logs.
